Components








SUPPLEMENTAL RESTRAINT SYSTEM: FRONT SEAT CUSHION ASSEMBLY (w/ Occupant Classification ECU, Occupant Classification Sensor): COMPONENTS

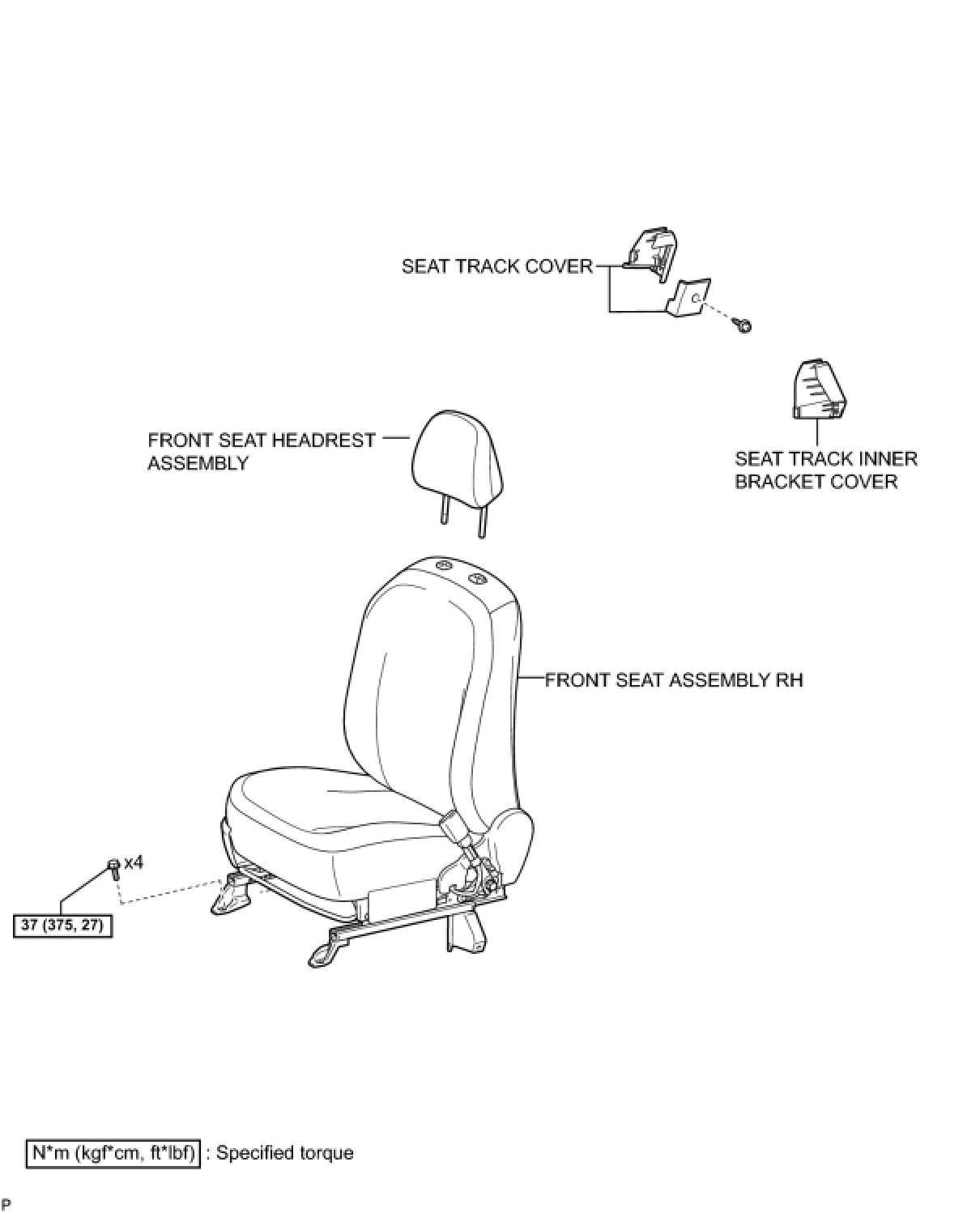

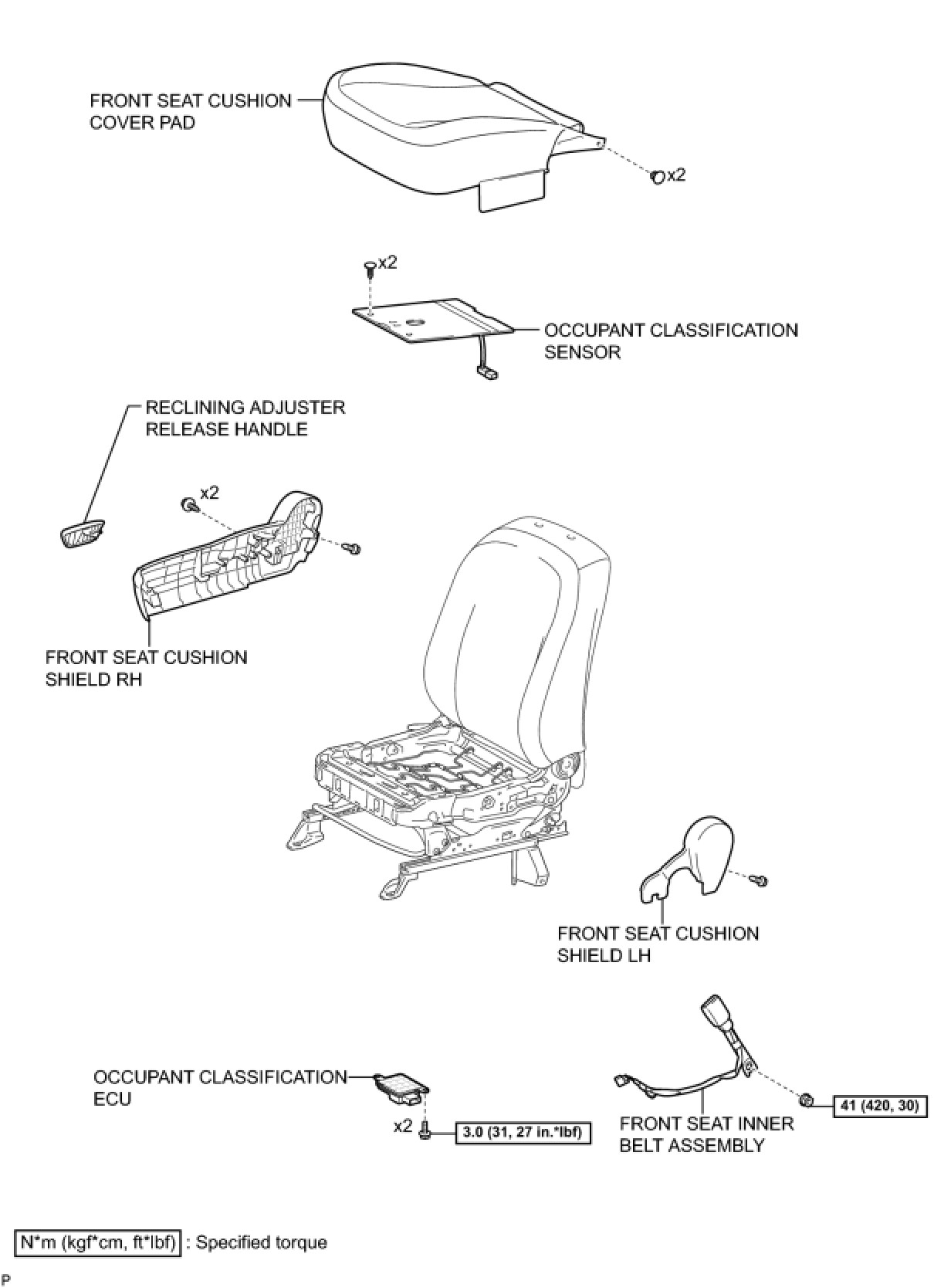

COMPONENTS
