Curtain Shield Airbag Assembly
>>
Components
Components

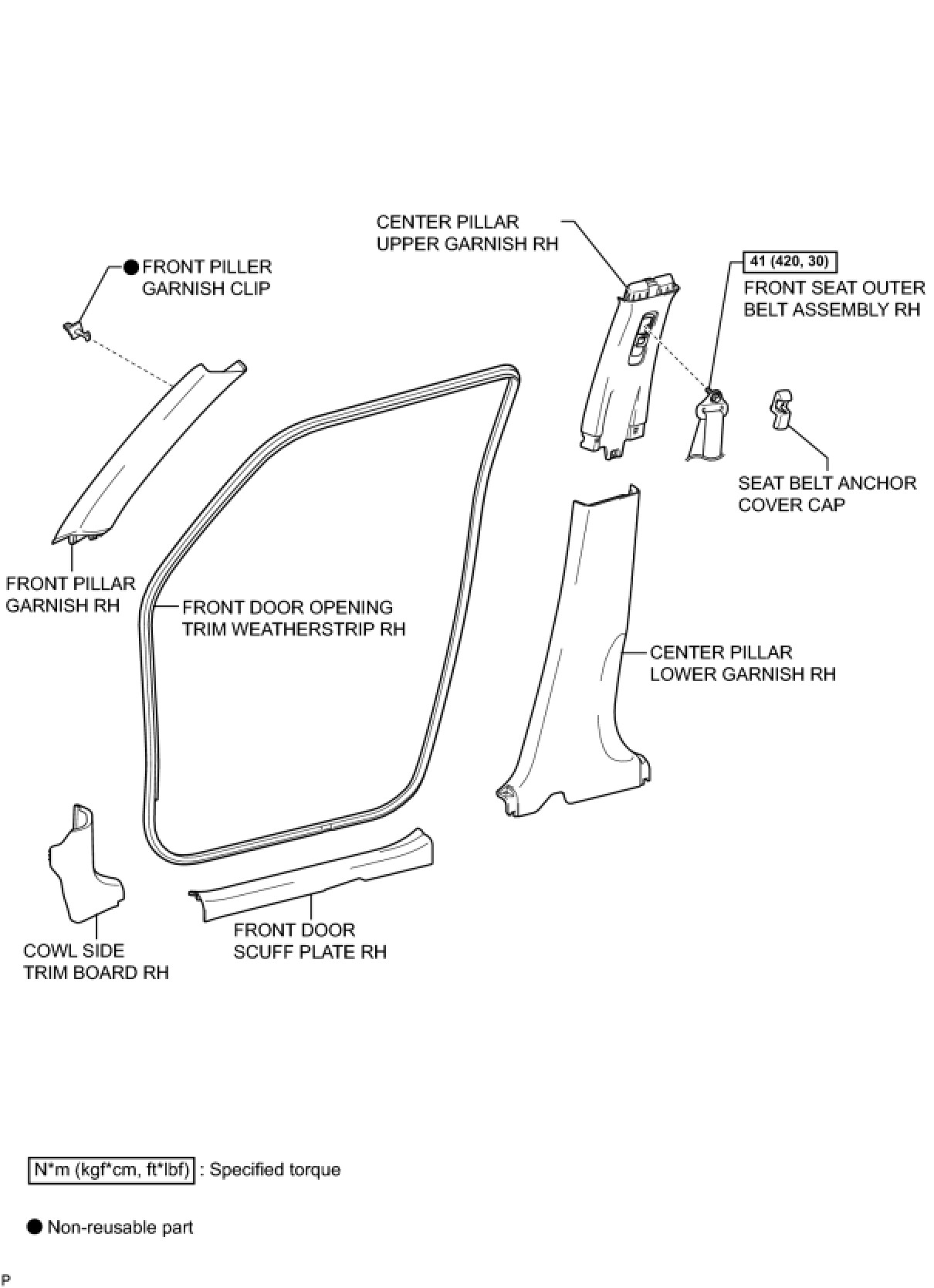

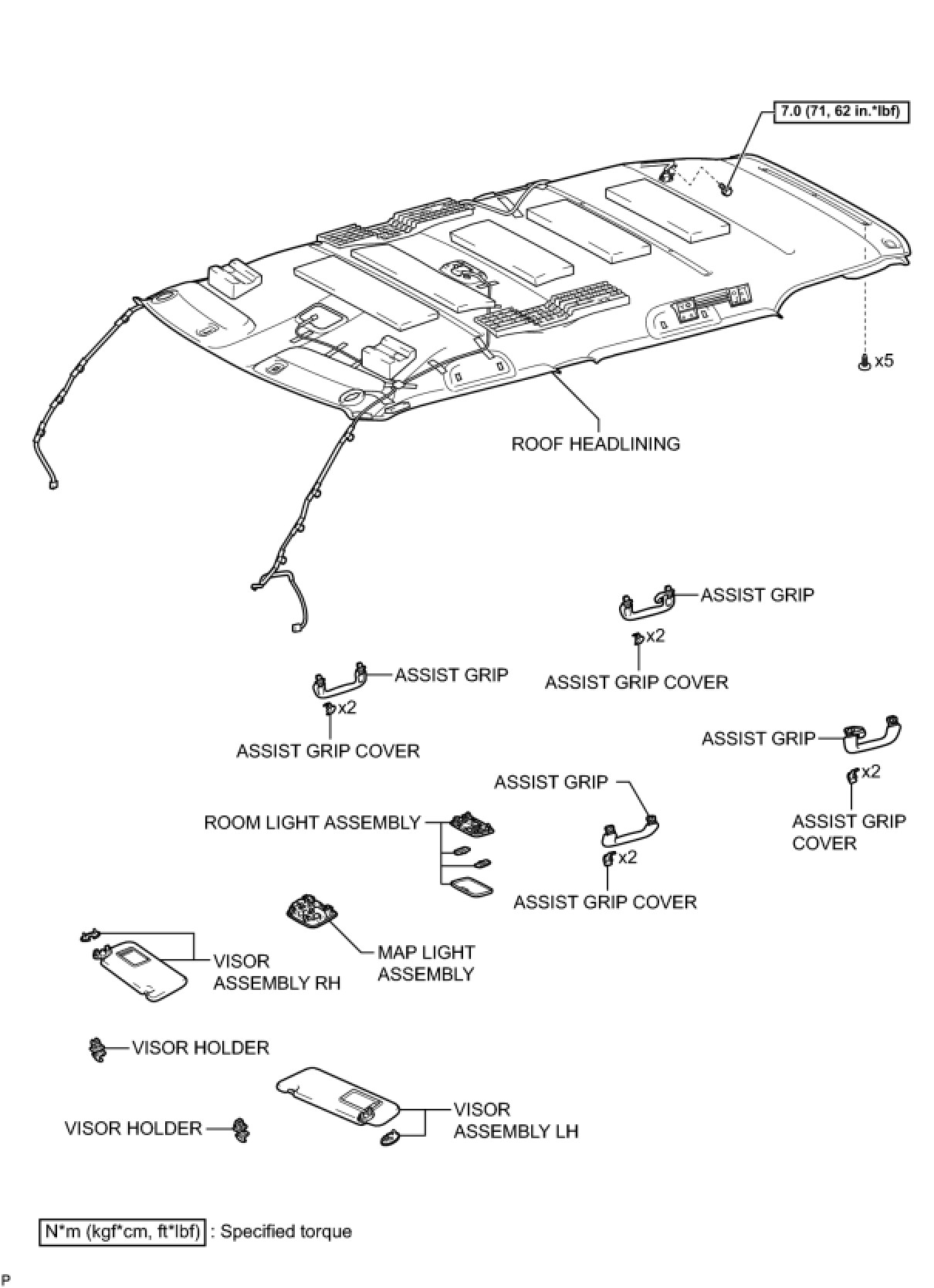

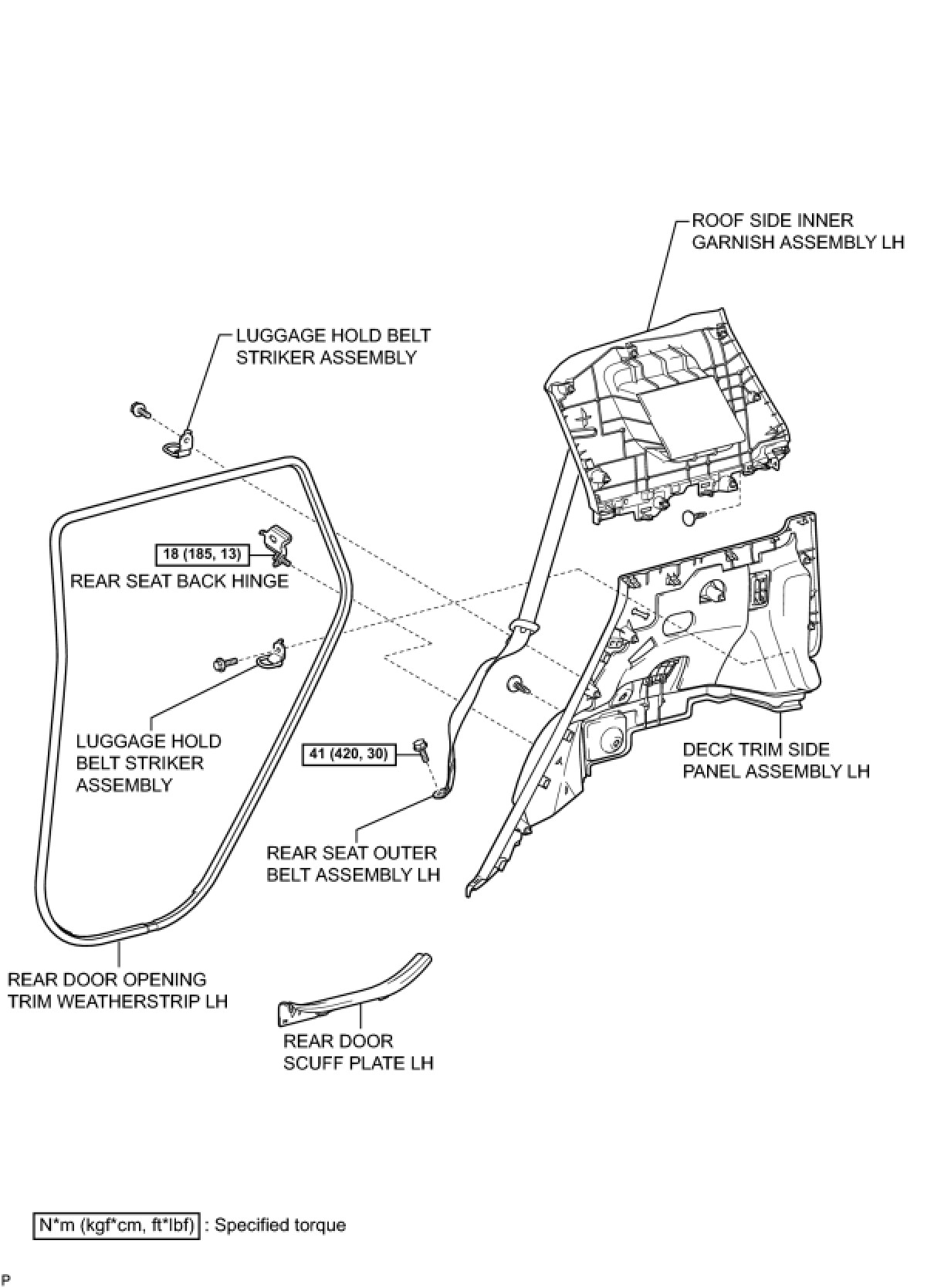

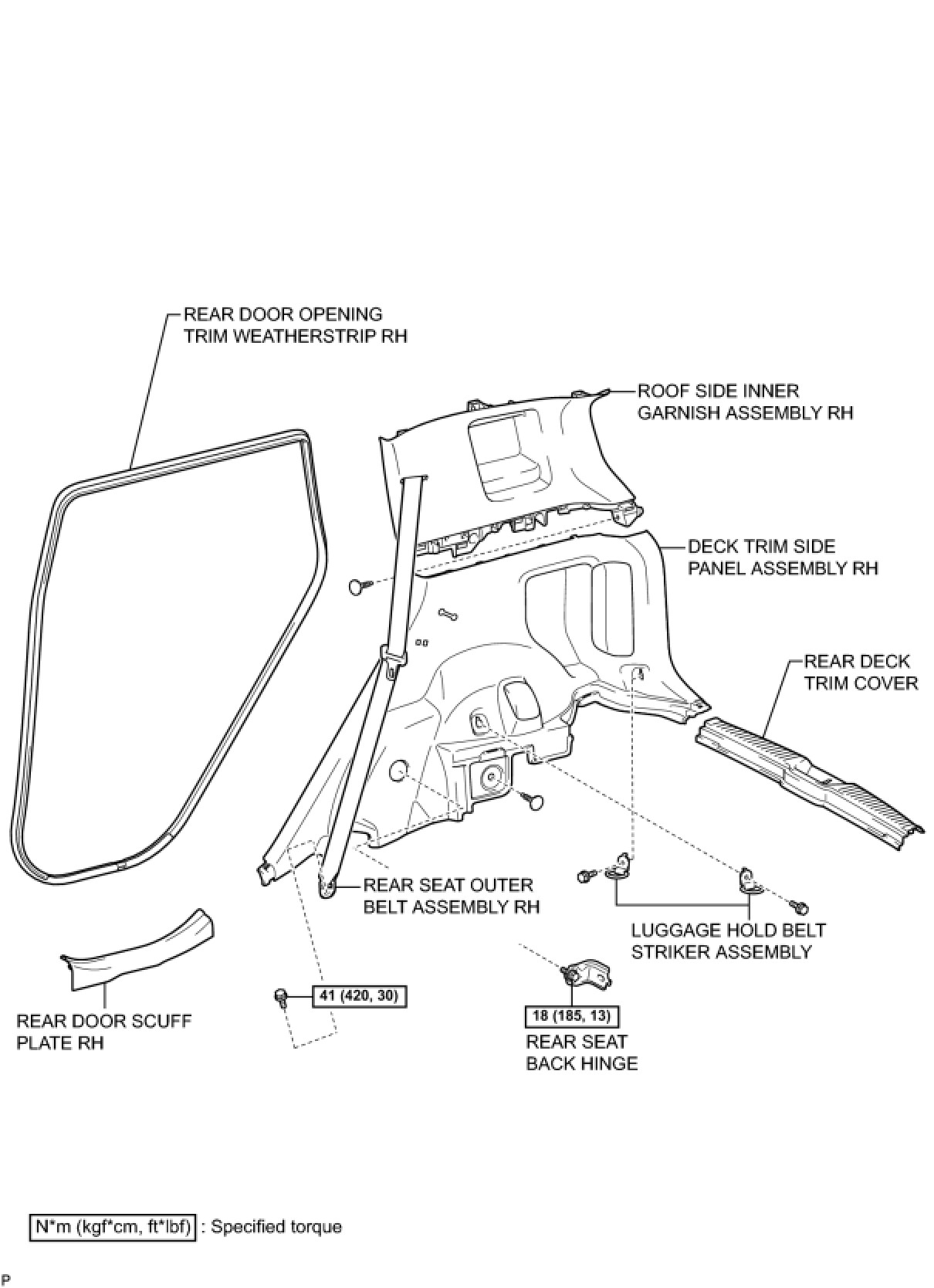

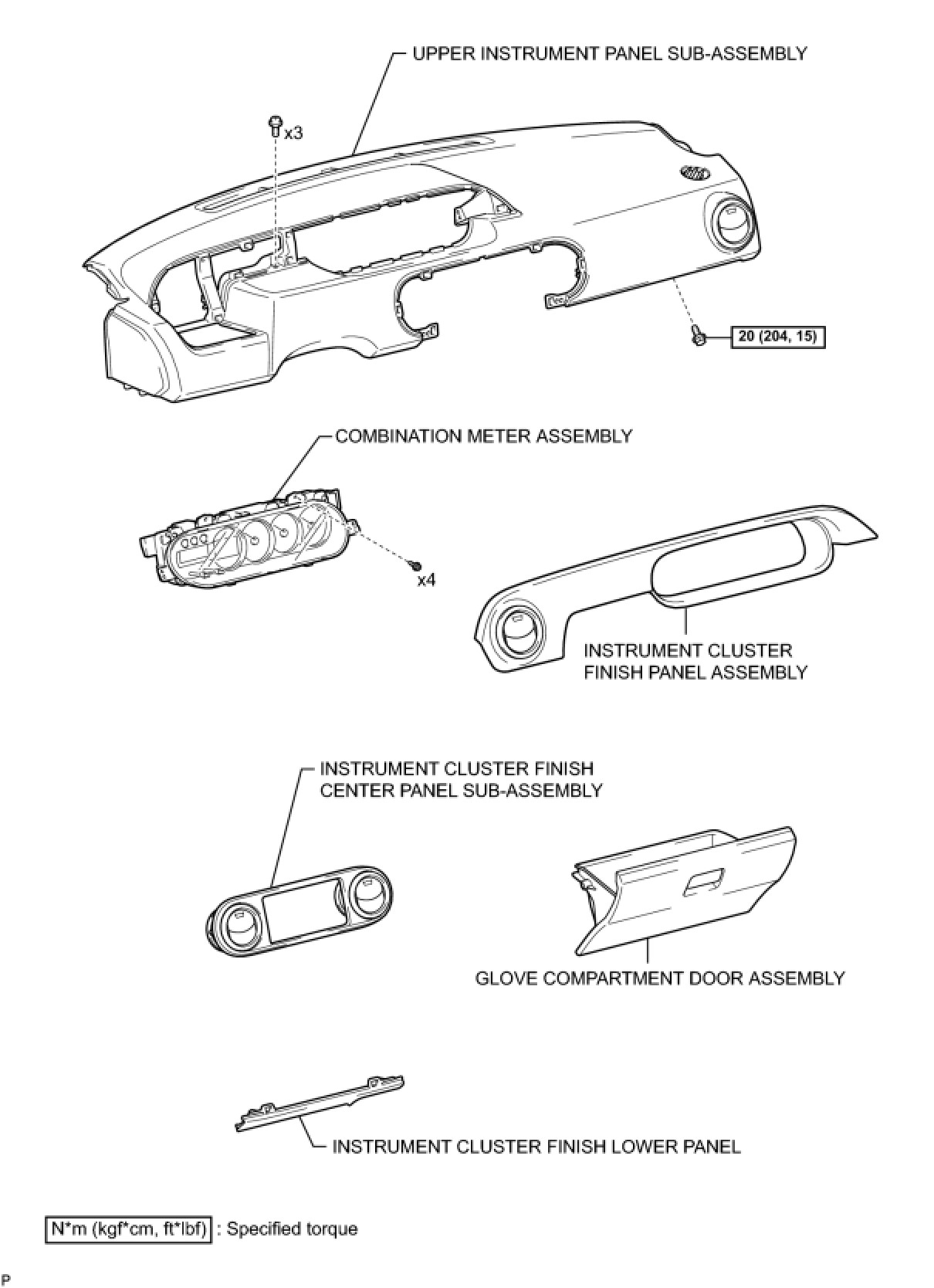

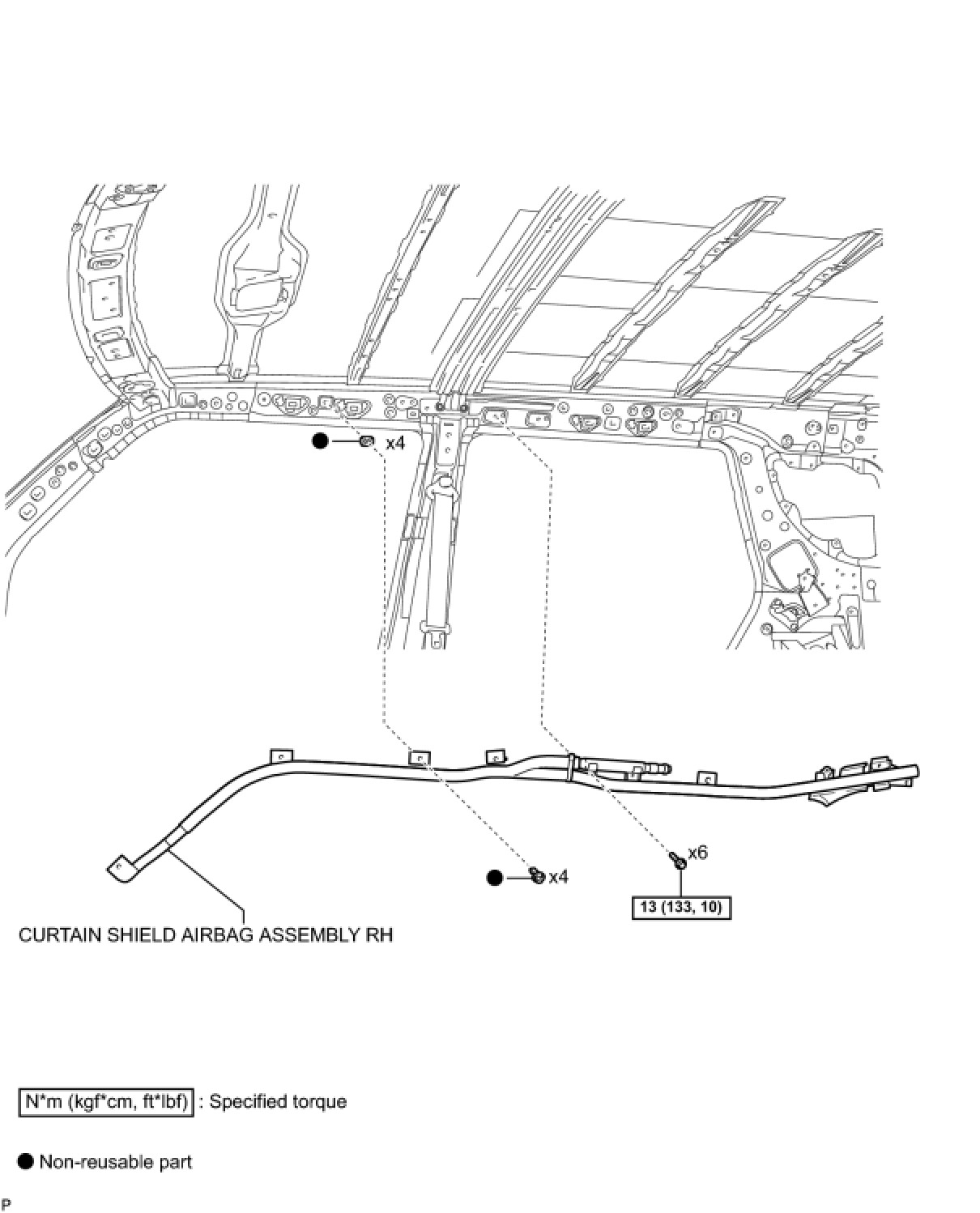

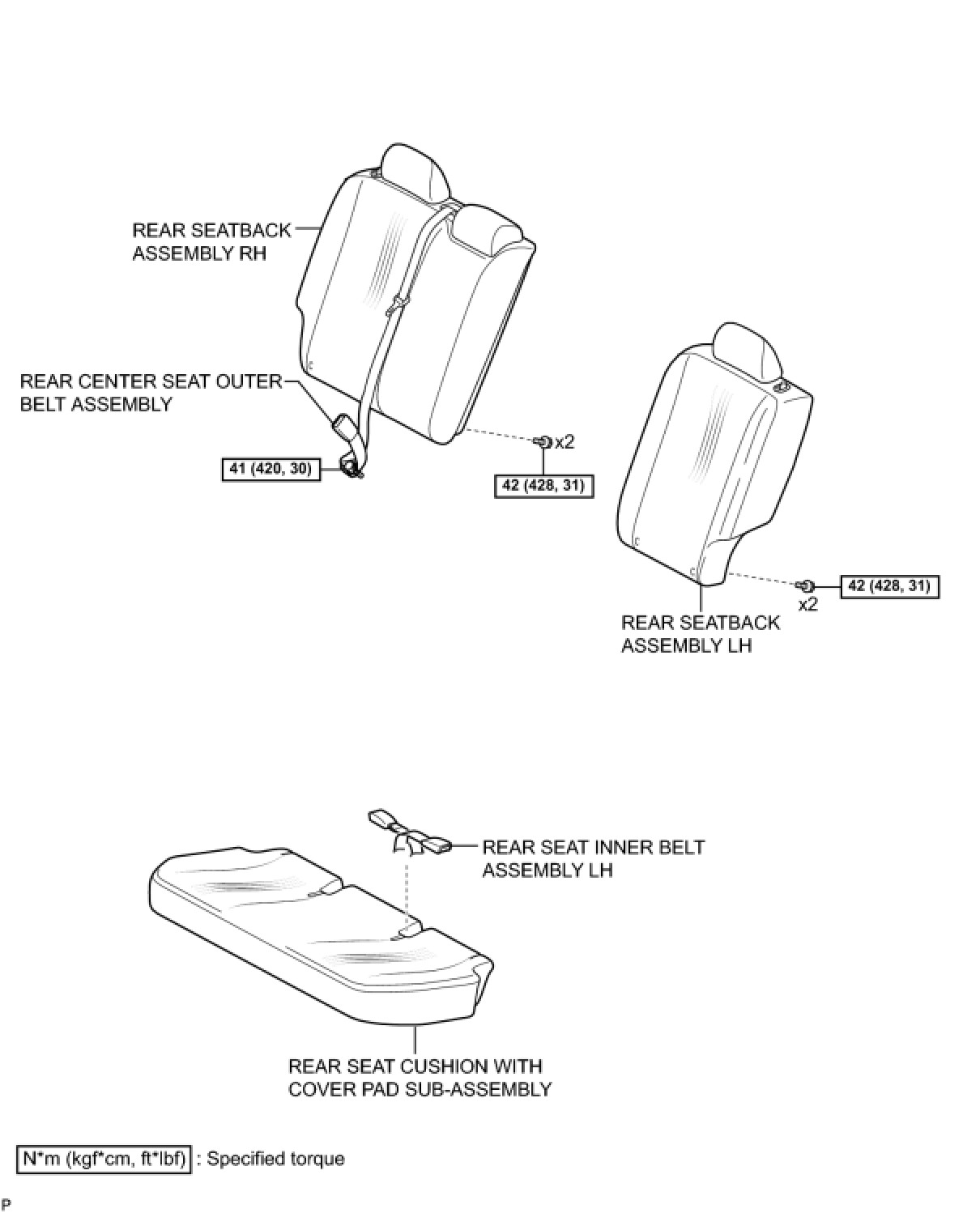

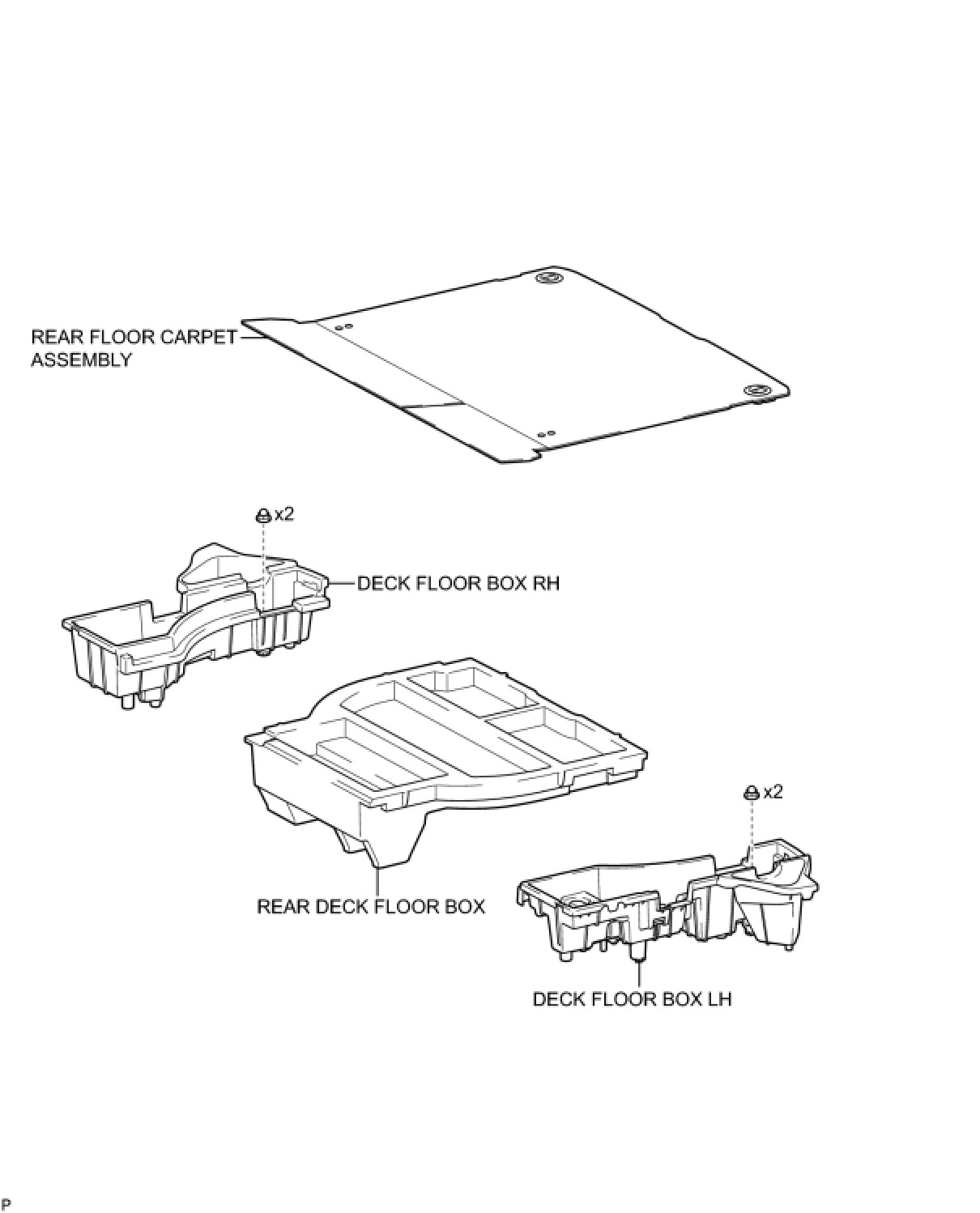

SUPPLEMENTAL RESTRAINT SYSTEM: CURTAIN SHIELD AIRBAG ASSEMBLY: COMPONENTS
COMPONENTS
