Starter Relay: Testing and Inspection

2AZ-FE STARTING: STARTER RELAY: ON-VEHICLE INSPECTION

ON-VEHICLE INSPECTION

1. INSPECT STARTER RELAY





(a) Measure the resistance of the relay.

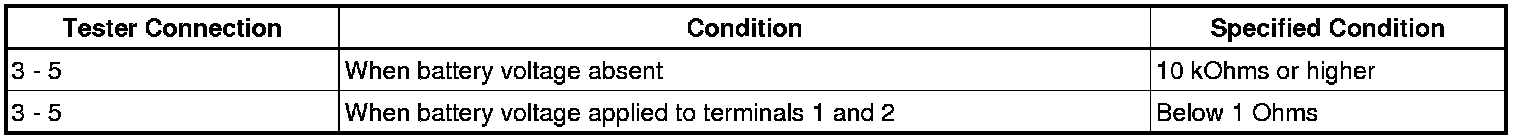

Standard resistance:





If the resistance is not as specified, replace the relay.
