Headlamp Relay: Testing and Inspection

LIGHTING: HEADLIGHT RELAY: ON-VEHICLE INSPECTION

ON-VEHICLE INSPECTION

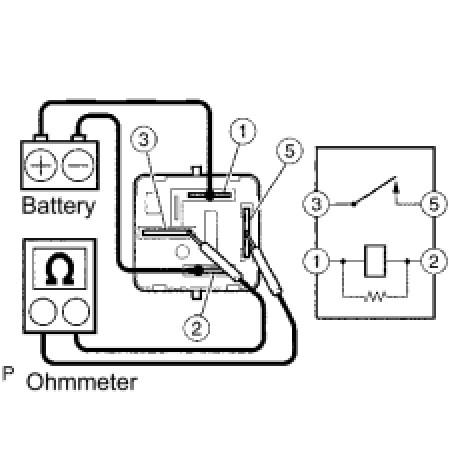

1. INSPECT HEADLIGHT RELAY
(a) Check the resistance.

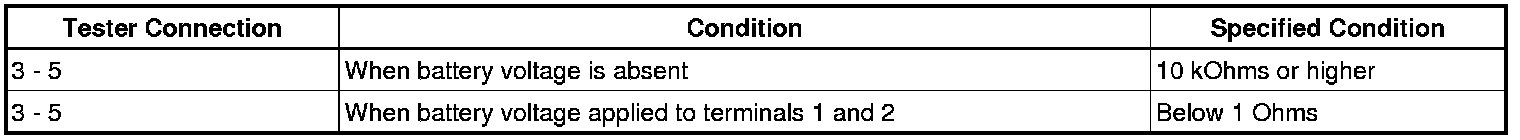

(1) Measure the resistance according to the value(s) in the table below.
Standard resistance:






If the result is not as specified, replace the headlight relay.
