Manual Shifting Test

U241E AUTOMATIC TRANSAXLE: AUTOMATIC TRANSAXLE SYSTEM: MANUAL SHIFTING TEST

MANUAL SHIFTING TEST

1. PERFORM MANUAL SHIFTING TEST
HINT:
- With this test, it can be determined whether the trouble occurs in the electrical circuit or is a mechanical problem in the transaxle.
- If any abnormalities are found in the following test, the problem is in the transaxle itself.

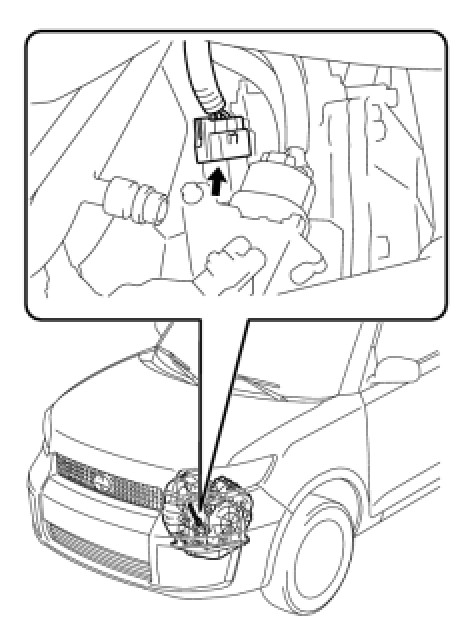

(a) Disconnect the transmission wire connector.

(b) Drive with the transmission wire disconnected.

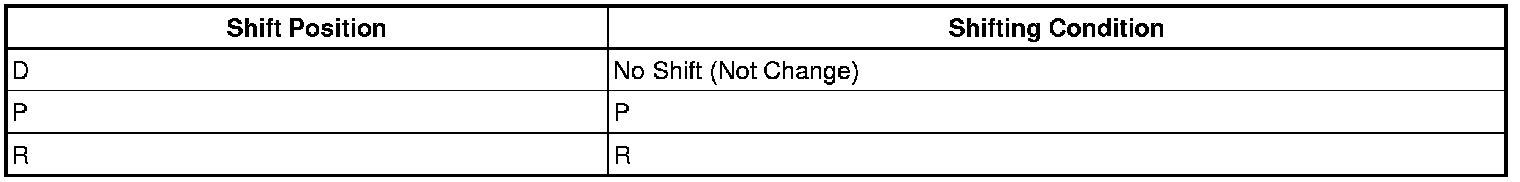

Move the shift lever to D to check whether the shifting condition changes according to the table below.





HINT: When driving with the transmission wire disconnected and the shift lever in D, the gear position is held in 3rd. However, when the shift lever is in R or P, the operation is the same as usual.

(c) Connect the connector of the transmission wire.
(d) Clear the DTC.
