2AZ-FE FUEL: FUEL PUMP: REASSEMBLY

REASSEMBLY

1. INSTALL FUEL PUMP





(a) Apply gasoline to a new O-ring, and then install it onto the fuel filter.
NOTICE: Do not disassemble the fuel pump and the suction filter because they are non-reusable parts.

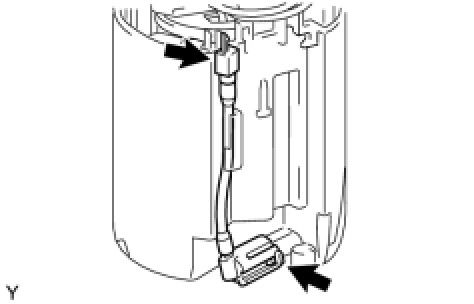

(b) Connect the fuel pump harness.

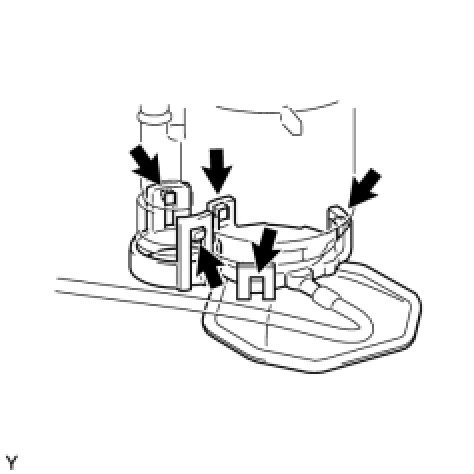

(c) Engage the 5 claws of the fuel pump.

NOTICE:
- Do not remove the suction filter.
- Do not use either the fuel pump or the suction filter if the suction filter is removed from the fuel pump.

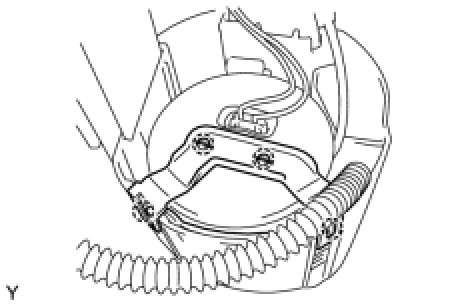

(d) Engage the 4 claws on the fuel suction support and install the fuel filter and the fuel pump onto the fuel sub-tank.





(e) Connect the fuel pump filter hose.

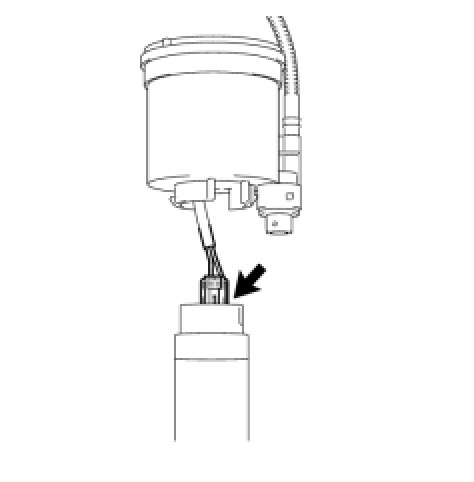

(f) Connect the fuel pump harness connector.
2. INSTALL FUEL SENDER GAUGE ASSEMBLY
(a) Install the fuel sender gauge by sliding it downward.





(b) Connect the connector of the fuel sender gauge and fuel pump.

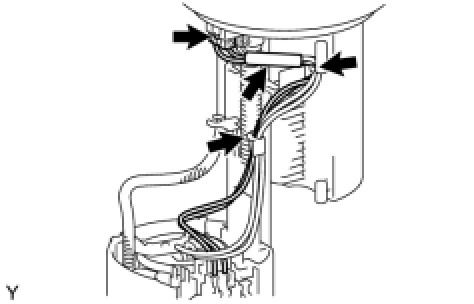

(c) Connect the 2 harness clamps.
NOTICE: Do not damage the wire harness.
