2AZ-FE FUEL: FUEL PRESSURE REGULATOR: REMOVAL

REMOVAL

1. DISCHARGE FUEL SYSTEM PRESSURE Removal
2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
3. DRAIN FUEL
4. REMOVE FUEL PUMP
Refer to the procedures under "REMOVE FUEL PUMP" Removal.
5. REMOVE FUEL PRESSURE REGULATOR ASSEMBLY

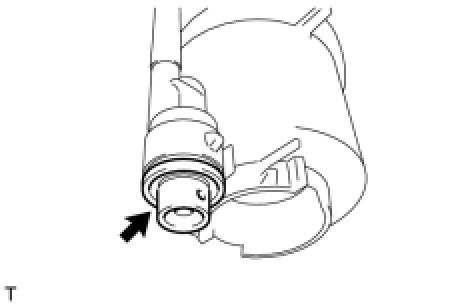

(a) Using a screwdriver with its tip wrapped in protective tape, remove the pressure regulator.

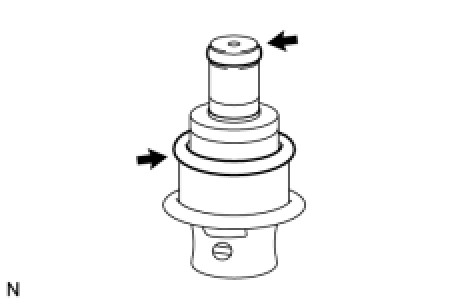

(b) Remove the 2 O-rings from the pressure regulator assembly.
