Installation

2AZ-FE EMISSION CONTROL: PCV VALVE: INSTALLATION

INSTALLATION

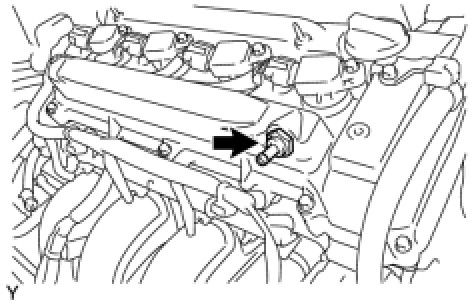

1. INSTALL PCV VALVE





(a) Apply adhesive to 2 or 3 threads of the ventilation valve.
Adhesive:
Toyota genuine adhesive 1324, three bond 1324 or equivalent





(b) Using a 22 mm deep socket wrench, install the PCV valve.
Torque: 19 Nm (194 kgf-cm, 14 ft-lbf)





(c) Connect the ventilation hose.
2. INSTALL NO. 1 ENGINE COVER SUB-ASSEMBLY Installation
3. INSPECT FOR OIL LEAK
