2AZ-FE EMISSION CONTROL: CANISTER: INSTALLATION

INSTALLATION

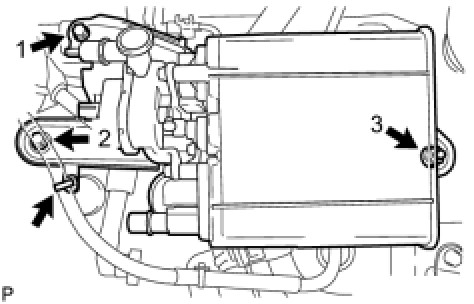

1. INSTALL CANISTER





(a) Install the canister with the 2bolts and nut.
Torque: 19 Nm (194 kgf-cm, 14 ft-lbf)
(b) Install the wire harness





(c) Connect the connector.

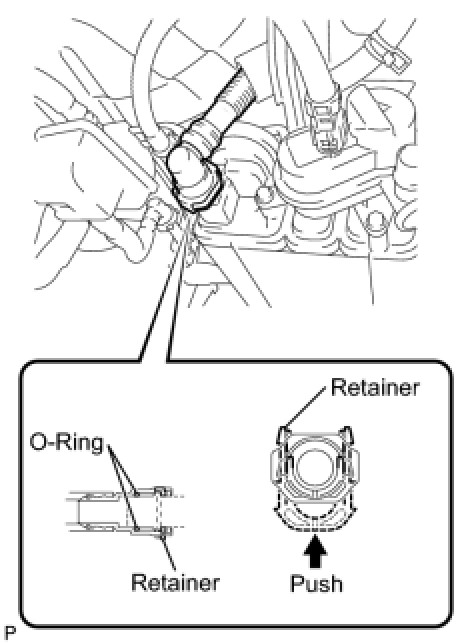

(d) Connect the fuel tank vent hose.
- Check that there are no scratches or foreign objects on the disconnected parts of the fuel tank vent connector and pipe before performing the work.
- After connecting the fuel tank vent hose, check that the fuel tank vent hose is securely connected by pulling the quick connector.

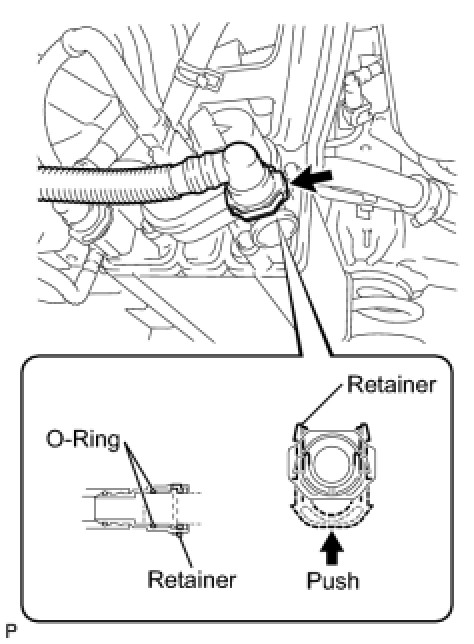

(e) Connect the air inlet hose.
- Check that there are no scratches or foreign objects on the disconnected parts of the air inlet hose connector and pipe before performing the work.
- After connecting the air inlet hose, check that the air inlet hose is securely connected by pulling the quick connector.





(f) Connect the charcoal canister outlet hose.
