Air Fuel Ratio Sensor

2AZ-FE ENGINE CONTROL SYSTEM: AIR FUEL RATIO SENSOR: INSPECTION

INSPECTION





1. INSPECT AIR FUEL RATIO SENSOR
(a) Check the resistance.

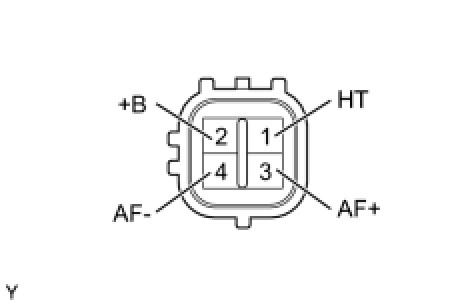

(1) Using an ohmmeter, measure the resistance between the terminals.

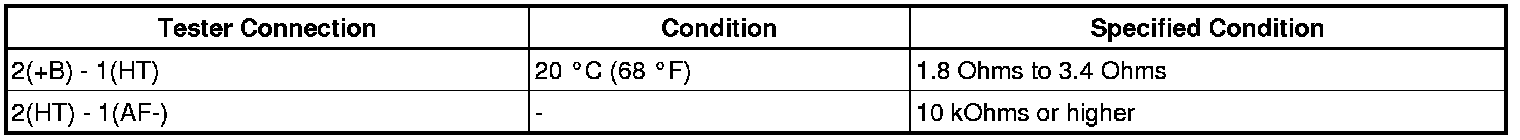

Standard resistance:






If the resistance is not as specified, replace the air fuel ratio sensor.
