2AZ-FE ENGINE CONTROL SYSTEM: HEATED OXYGEN SENSOR: INSTALLATION

INSTALLATION

1. INSTALL HEATED OXYGEN SENSOR





SST: 09224-00010
(a) Using SST, install the heated oxygen sensor.
- Torque: 44 Nm (449 kgf-cm, 32 ft-lbf)
- Torque: 40 Nm (408 kgf-cm, 30 ft-lbf)
NOTICE:

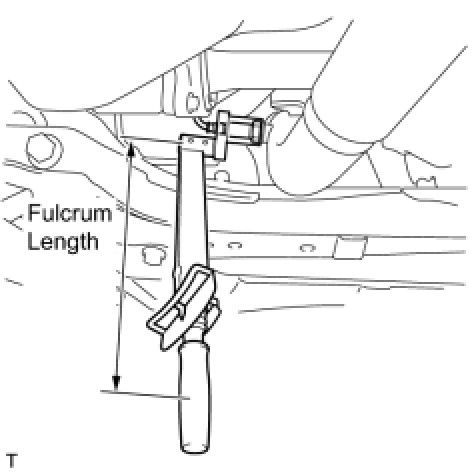

- This torque value can be obtained by using a torque wrench with a fulcrum length of 300 mm (11.81 in.) and a SST with 30 mm (1.18 in.) Service Precautions.
- This torque value is effective when SST is parallel to the torque wrench.





(b) Connect the heated oxygen sensor connector.
2. INSPECT FOR EXHAUST GAS LEAK
