Removal

2AZ-FE ENGINE CONTROL SYSTEM: AIR FUEL RATIO SENSOR: REMOVAL

REMOVAL





1. REMOVE NO. 1 EXHAUST MANIFOLD HEAT INSULATOR

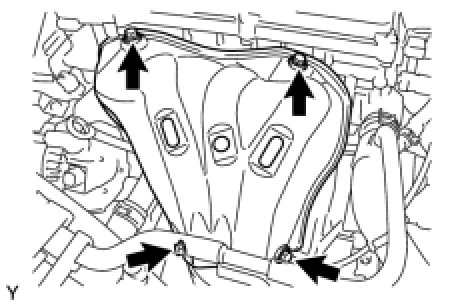

(a) Remove the 4 bolts and remove the No. 1 exhaust manifold heat insulator.
2. REMOVE AIR FUEL RATIO SENSOR

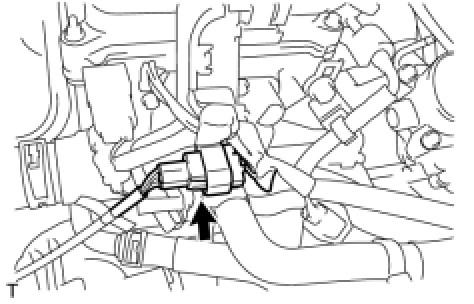

(a) Disconnect the air fuel ratio sensor connector.

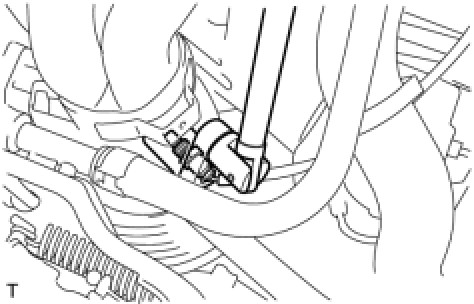

(b) Using SST, remove the air fuel ratio sensor.
SST: 09224-00010
