Pinout Values and Diagnostic Parameters

CAN COMMUNICATION: CAN COMMUNICATION SYSTEM: TERMINALS OF ECU

TERMINALS OF ECU
NOTICE:
- Turn the ignition switch off before measuring the resistances of the CAN main wire and the CAN branch wire.
- After the ignition switch is turned off, check that the key reminder warning system and light reminder warning system are not in operation.
- Before measuring the resistance, leave the vehicle as is for at least 1 minute and do not operate the ignition switch, any other switches or the doors. If doors need to be opened in order to check connectors, open the doors and leave them open.
HINT: Operating the ignition switch, any switches or any doors triggers related ECU and sensor communication with the CAN, which causes resistance variation.

1. JUNCTION CONNECTOR

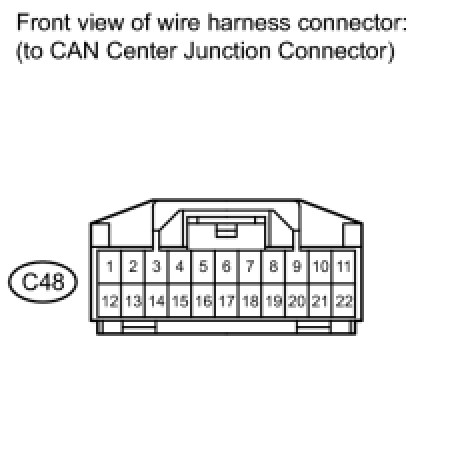

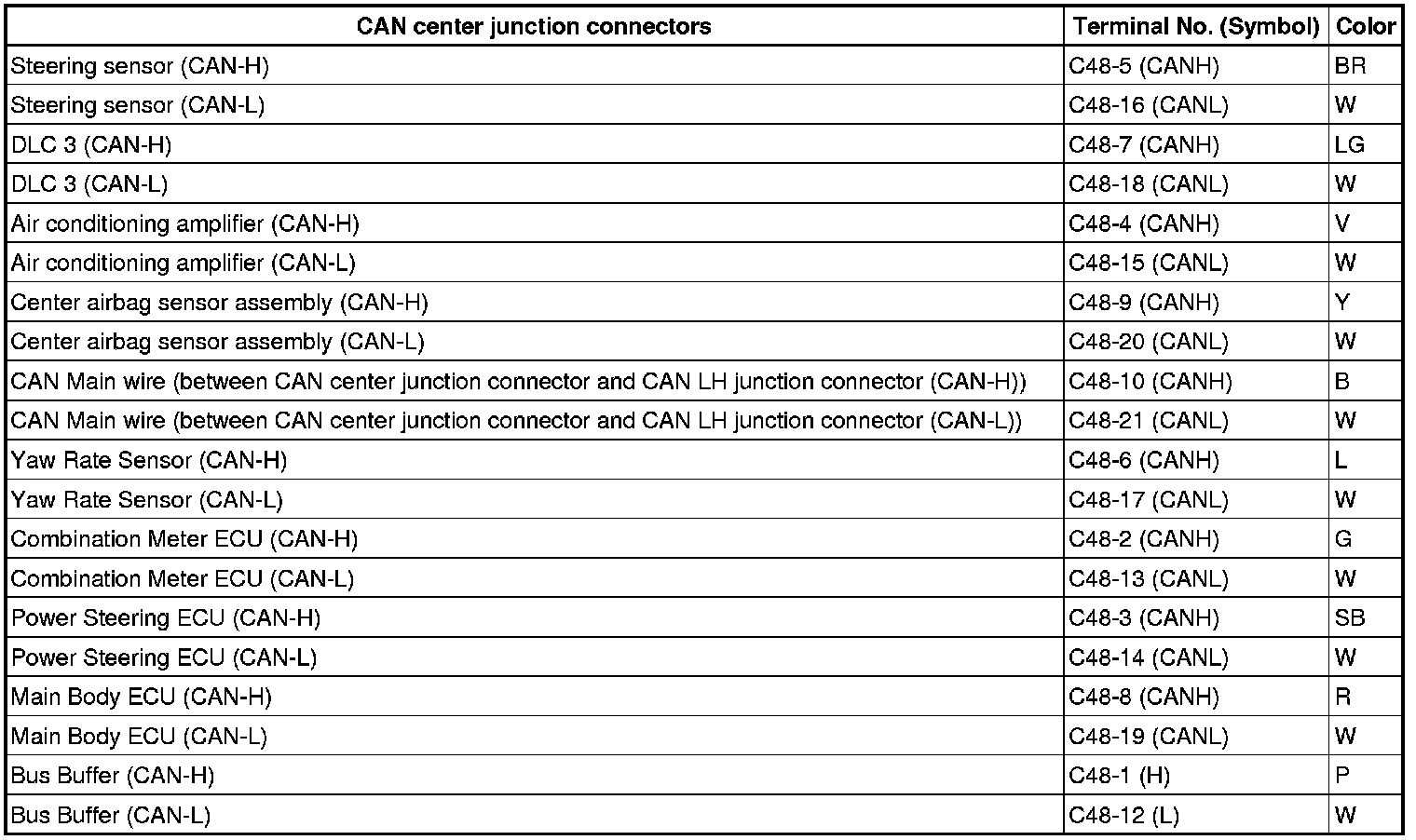

(a) CAN Center Junction Connector
Wiring color:

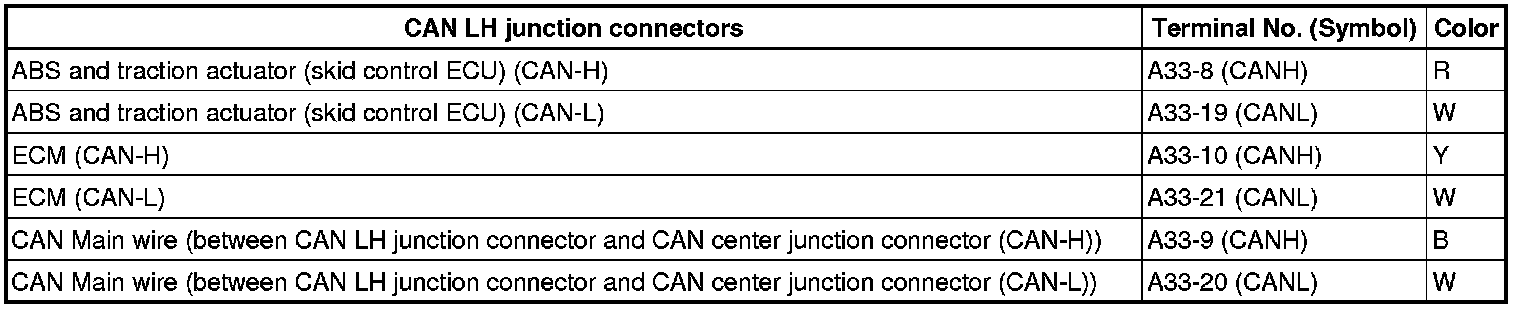

(b) CAN LH Junction Connector
Wiring color:

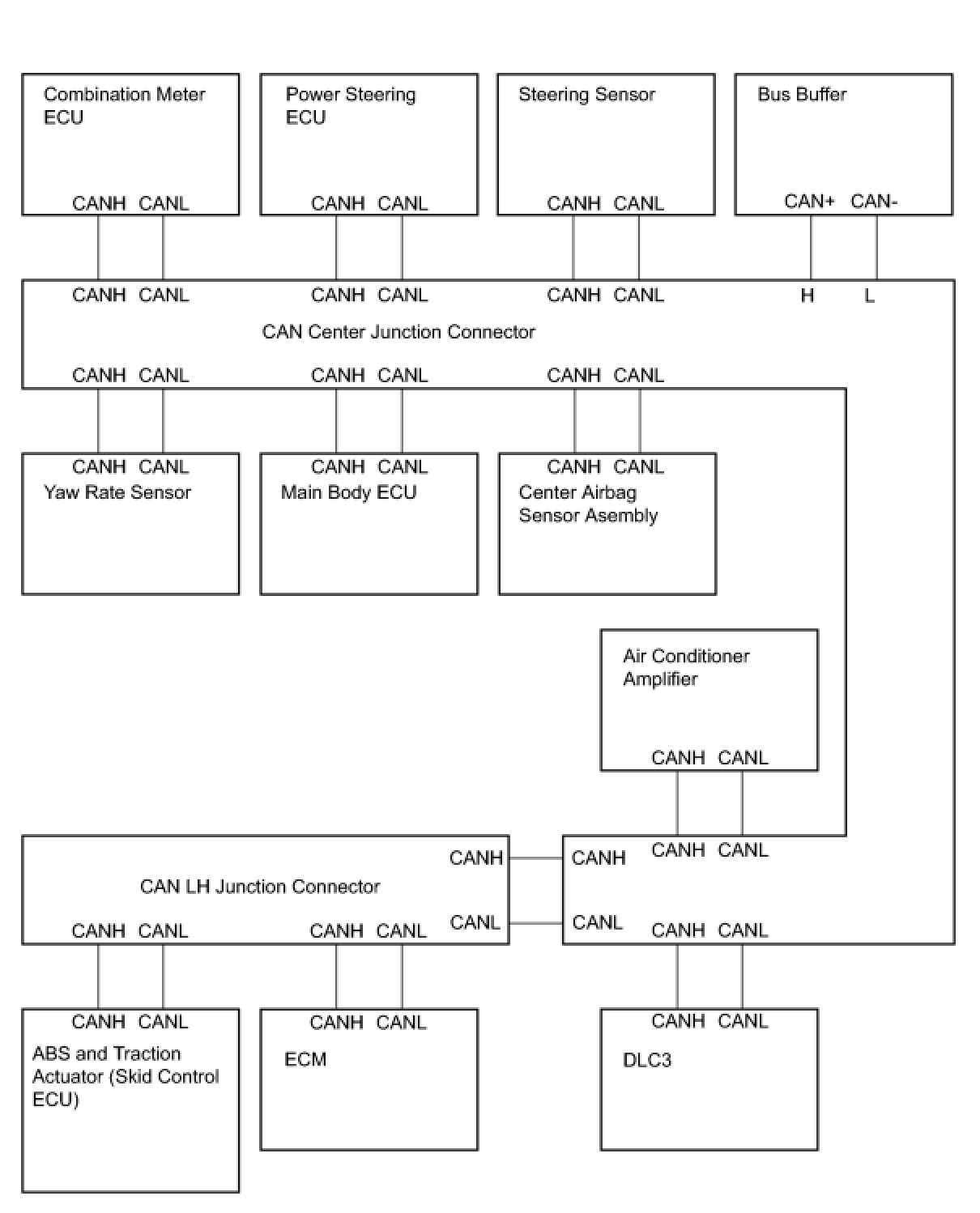

(c) Wiring diagram for identifying CAN Junction Connectors









2. DLC3
(a) Turn the ignition switch off.
(b) Measure the resistance according to the value(s) in the table below.
Standard Resistance:

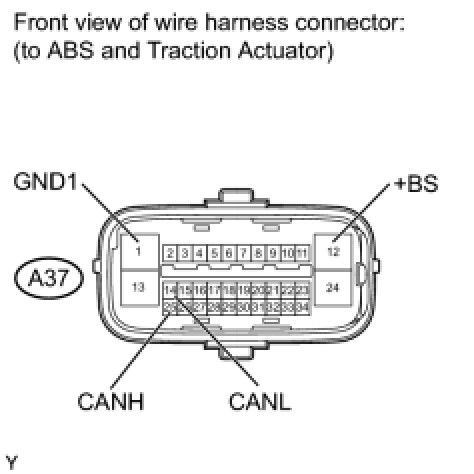

3. ABS AND TRACTION ACTUATOR (SKID CONTROL ECU)
(a) Turn the ignition switch off.
(b) Disconnect the A37 ABS and traction actuator (skid control ECU) connector.
(c) Measure the resistance according to the value(s) in the table below.
Standard Resistance:

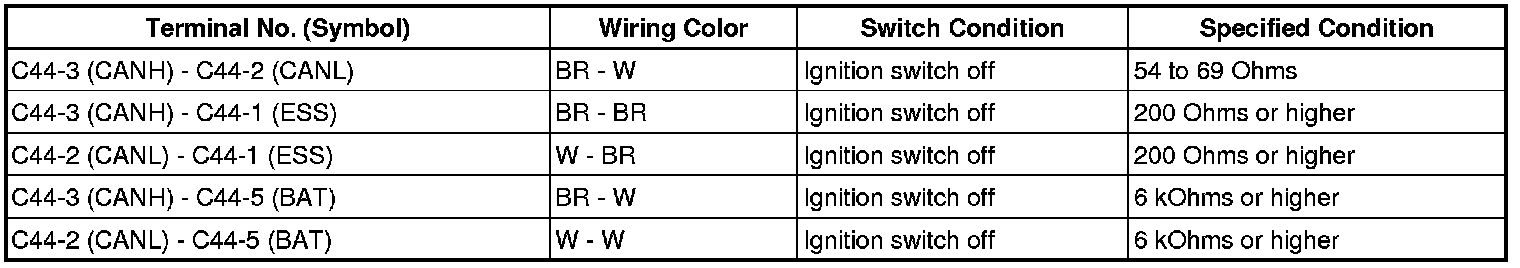

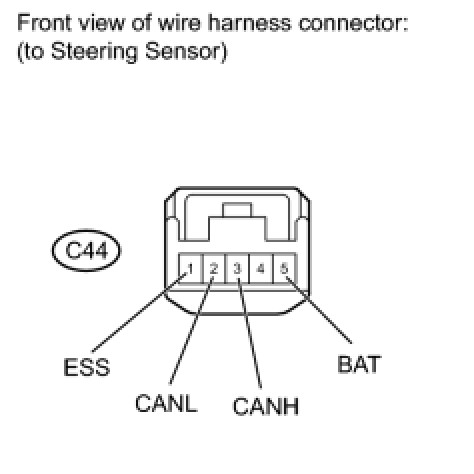

4. STEERING SENSOR
(a) Turn the ignition switch off.
(b) Disconnect the C44 steering sensor connector.
(c) Measure the resistance according to the value(s) in the table below.
Standard Resistance:

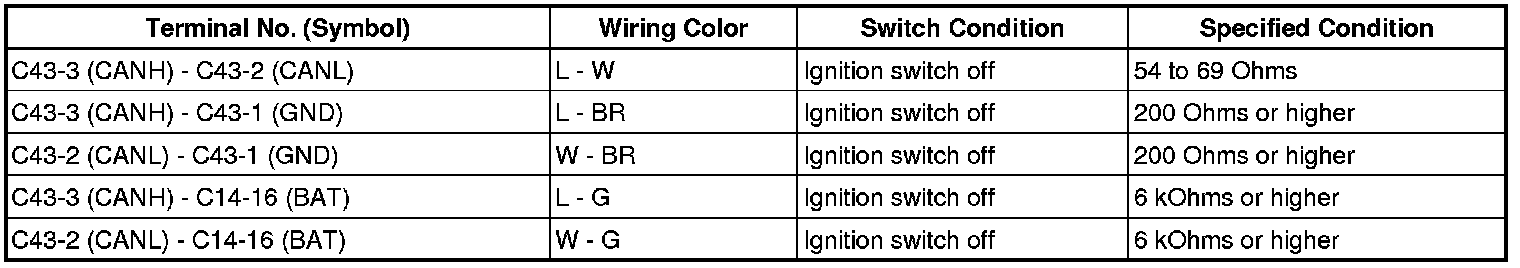

5. YAW RATE SENSOR
(a) Turn the ignition switch off.
(b) Disconnect the C43 yaw rate sensor connector.
(c) Measure the resistance according to the value(s) in the table below.
Standard Resistance:

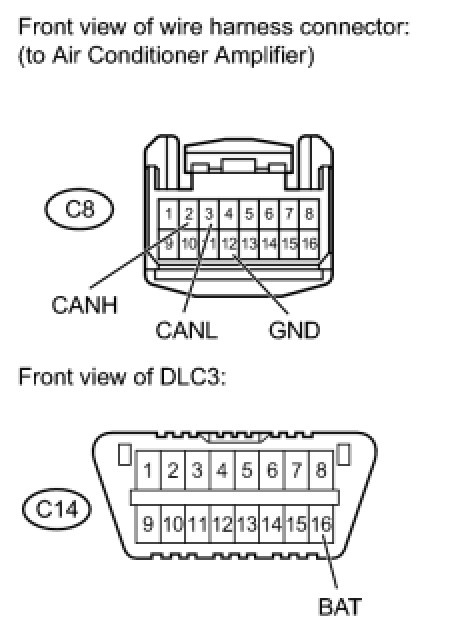

6. AIR CONDITIONING AMPLIFIER
(a) Turn the ignition switch off.
(b) Disconnect the C8 air conditioning amplifier connector.
(c) Measure the resistance according to the value(s) in the table below.
Standard Resistance:

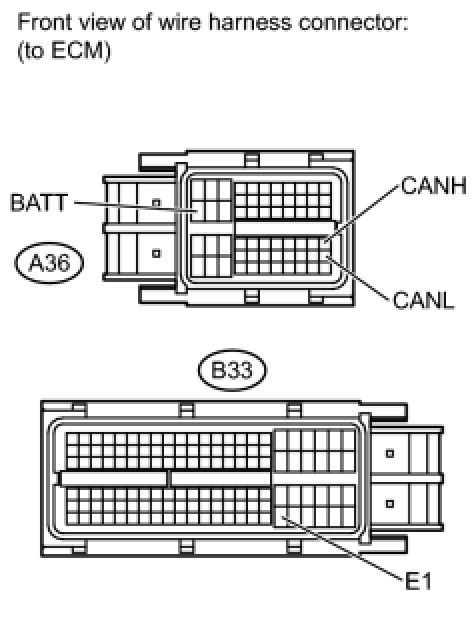

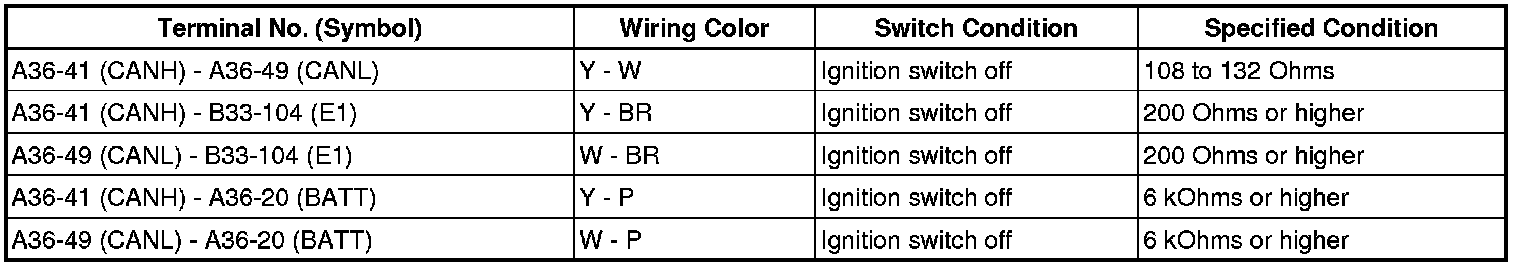

7. ECM
(a) Turn the ignition switch off.
(b) Disconnect the A36 and B33 ECM connectors.
(c) Measure the resistance according to the value(s) in the table below.
Standard Resistance:

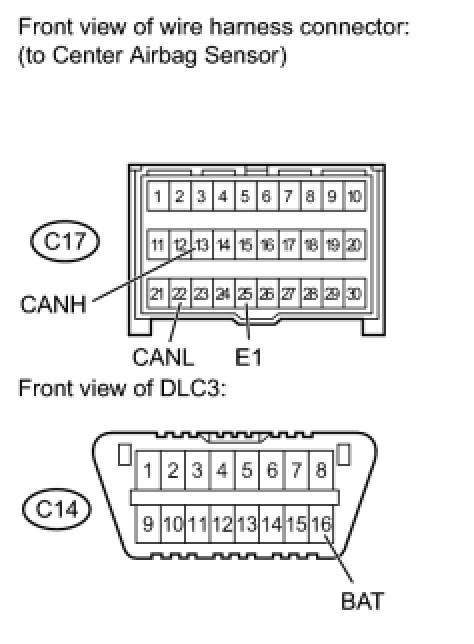

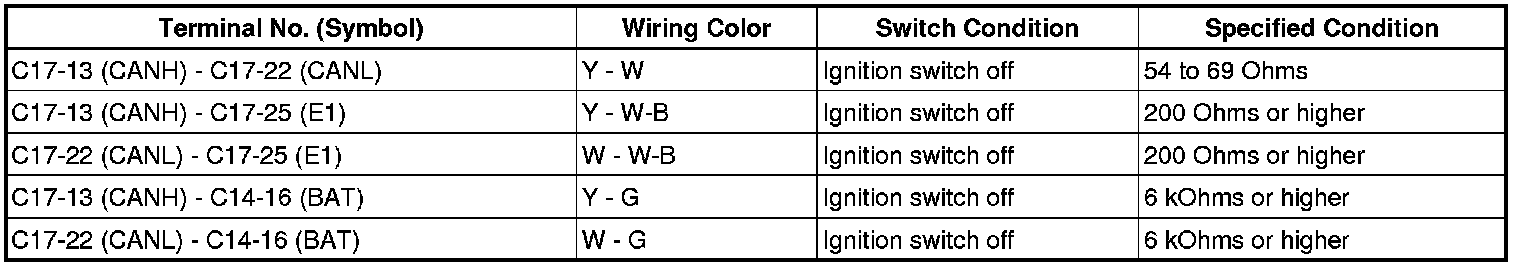

8. CENTER AIRBAG SENSOR ASSEMBLY
(a) Turn the ignition switch off.
(b) Disconnect the C17 center airbag sensor assembly connector.
(c) Measure the resistance according to the value(s) in the table below.
Standard Resistance:

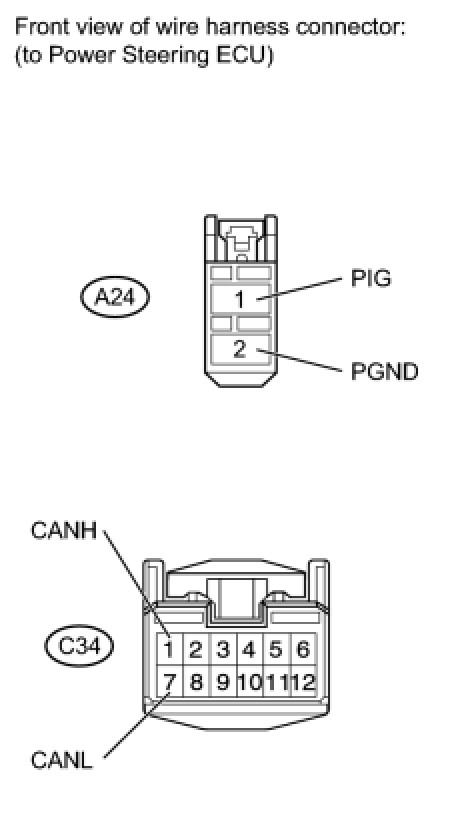

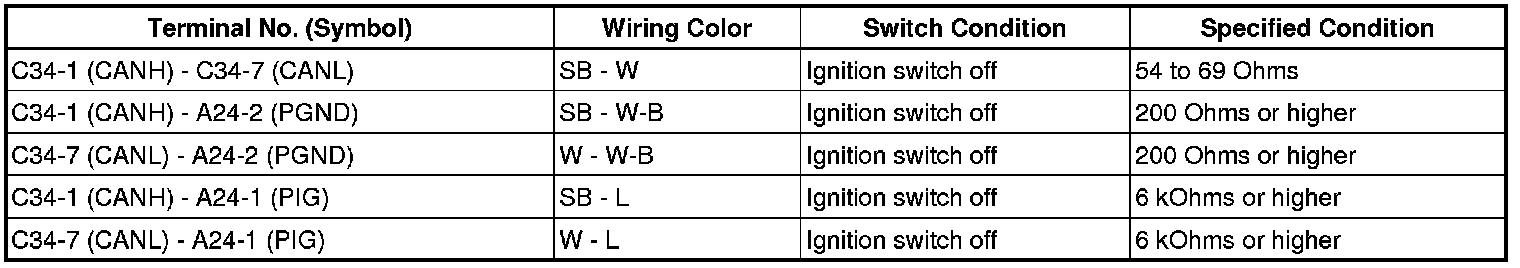

9. POWER STEERING ECU
(a) Turn the ignition switch off.
(b) Disconnect the A24 and C34 power steering ECU connectors.
(c) Measure the resistance according to the value(s) in the table below.
Standard Resistance:

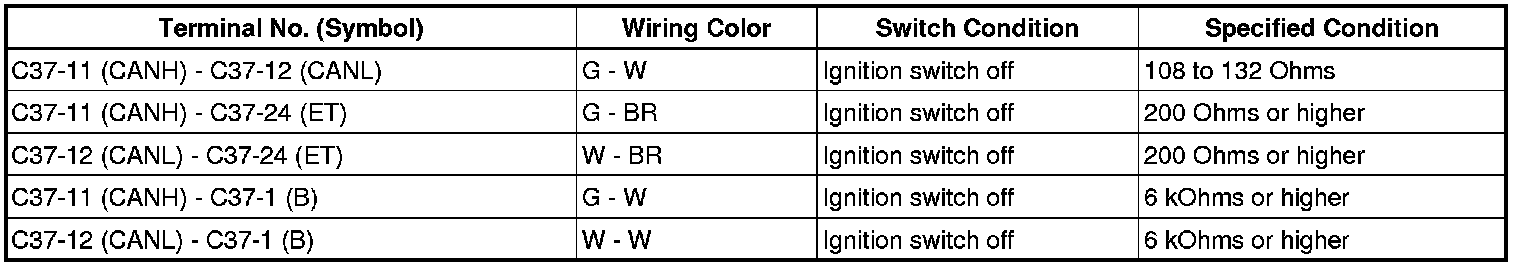

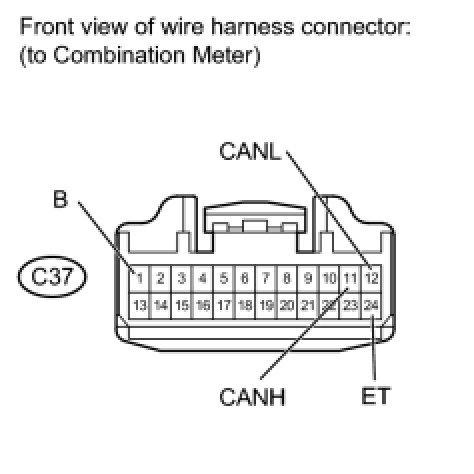

10. COMBINATION METER ECU
(a) Turn the ignition switch off.
(b) Disconnect the C37 combination meter assembly connector.
(c) Measure the resistance according to the value(s) in the table below.
Standard Resistance:

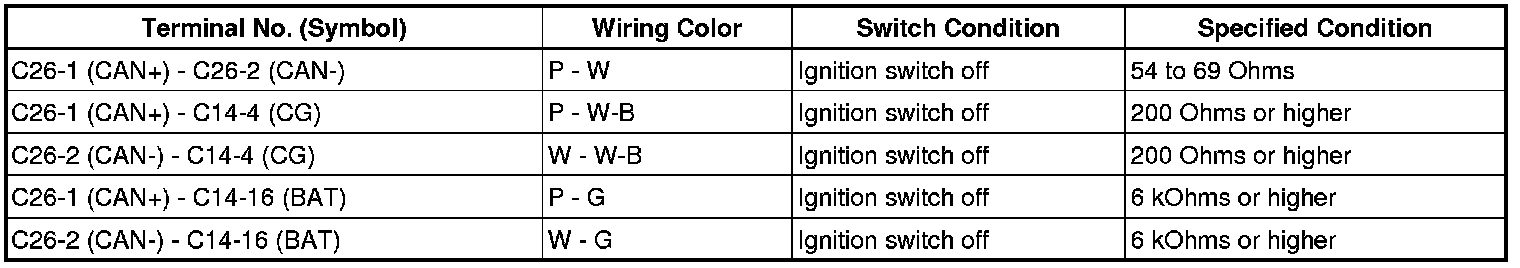

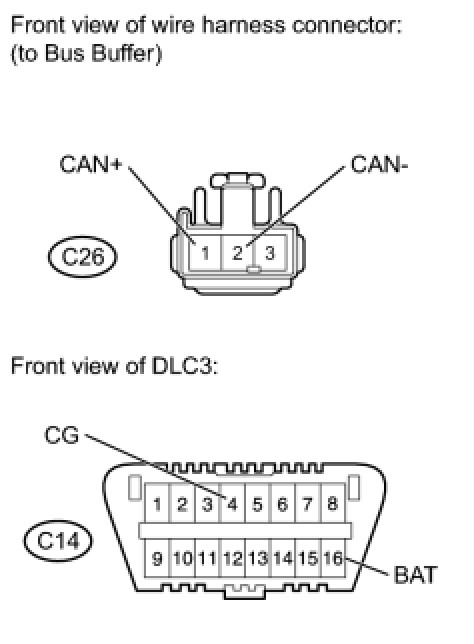

11. BUS BUFFER ECU





(a) Turn the ignition switch off.

(b) Disconnect the C26 bus buffer connector.
HINT: For vehicles without Accessory, take the connector out for inspection.

(c) Measure the resistance according to the value(s) in the table below.
Standard Resistance:

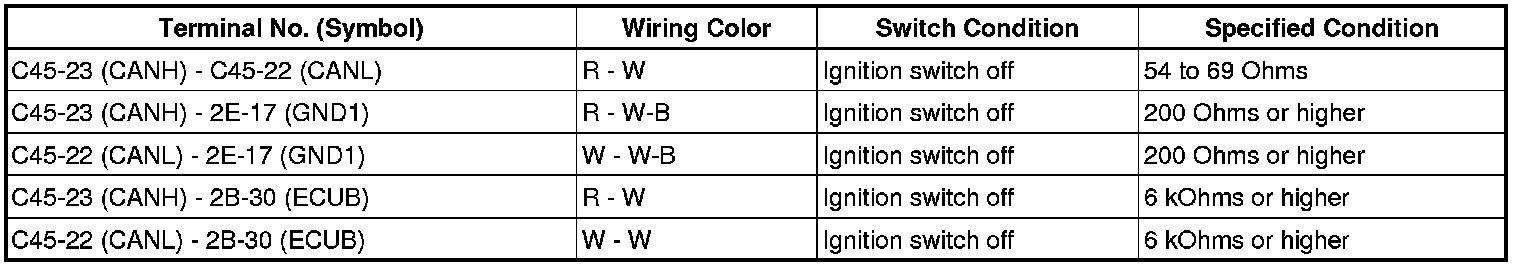

12. MAIN BODY ECU









(a) Turn the ignition switch off.
(b) Disconnect the C45, 2B and 2E connectors.
(c) Measure the resistance according to the value(s) in the table below.
Standard Resistance:
