Removal

OTHER SYSTEM: POWER OUTLET SOCKET: REMOVAL

REMOVAL

1. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transaxle) Removal
2. REMOVE INSTRUMENT CLUSTER FINISH CENTER LOWER PANEL Removal
3. REMOVE FRONT NO. 2 CONSOLE BOX INSERT Removal
4. REMOVE FRONT NO. 1 CONSOLE BOX INSERT Removal
5. REMOVE INSTRUMENT PANEL FINISH LOWER PANEL (for Automatic Transaxle) Removal
6. REMOVE INSTRUMENT PANEL FINISH LOWER PANEL (for Manual Transaxle) Removal
7. REMOVE POWER OUTLET SOCKET ASSEMBLY

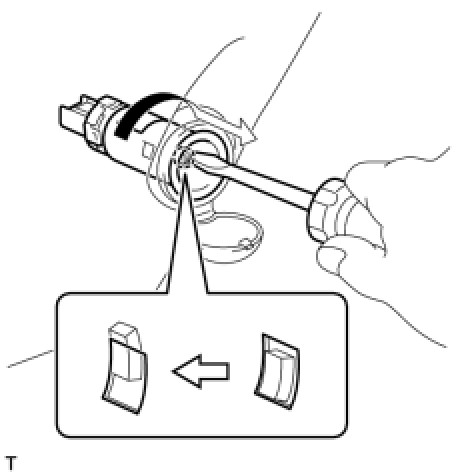

(a) Using a screwdriver, disengage the claw, then turn the power outlet socket clockwise and push the power outlet socket half way out.

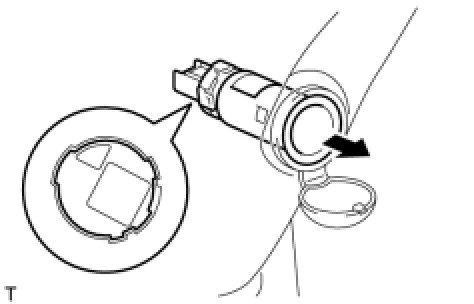

(b) Align the protrusion on the power outlet socket with the cutout of the power outlet socket cover and then push the power outlet socket out.





8. REMOVE POWER OUTLET SOCKET COVER

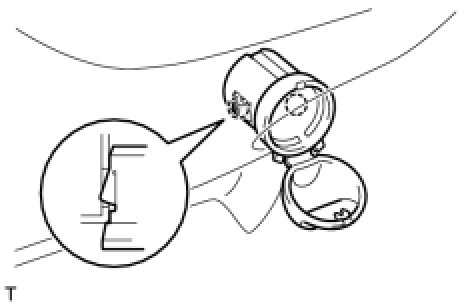

(a) Disengage the 2 claws and remove the power outlet socket cover.
