Removal

2AZ-FE IGNITION: IGNITION COIL AND SPARK PLUG: REMOVAL

REMOVAL

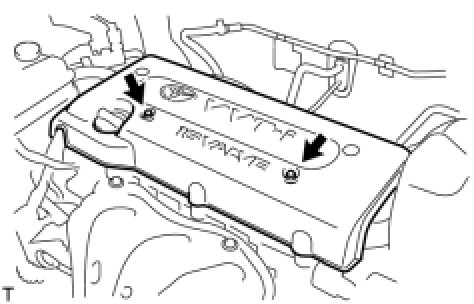

1. REMOVE NO. 1 ENGINE COVER SUB-ASSEMBLY
(a) Remove the 2 nuts and engine cover.

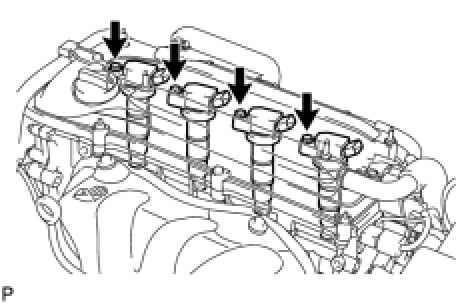

2. REMOVE IGNITION COIL ASSEMBLY
(a) Disconnect the 4 ignition coil connectors.
(b) Remove the 4 bolts and 4 ignition coils.

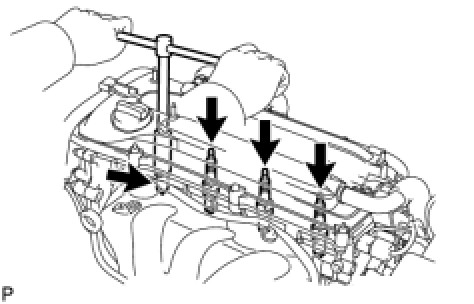

3. REMOVE SPARK PLUG
(a) Remove the 4 spark plugs.
