Side Turn Signal Light Assembly: Inspection

LIGHTING: SIDE TURN SIGNAL LIGHT ASSEMBLY: INSPECTION

INSPECTION





1. INSPECT SIDE TURN SIGNAL LIGHT ASSEMBLY

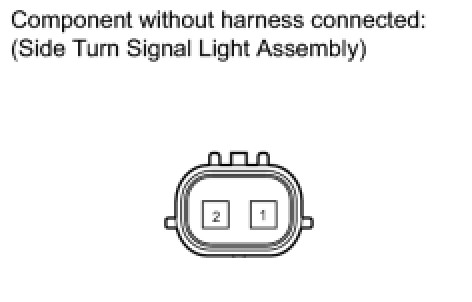

(a) Connect the (+) lead from the battery to terminal 1 and the (-) lead to terminal 2.
(b) Check that the side turn signal light comes on.
OK:
The light comes on.
If the result is not as specified, replace the side turn signal light.
