Installation

LIGHTING: TURN SIGNAL FLASHER ASSEMBLY: INSTALLATION

INSTALLATION





1. INSTALL TURN SIGNAL FLASHER ASSEMBLY
(a) Install the turn signal flasher.

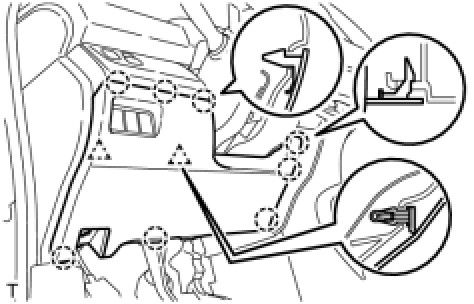

2. INSTALL INSTRUMENT FINISH LOWER PANEL SUB-ASSEMBLY
(a) Engage the 8 claws and 2 clips and install the instrument finish lower panel.

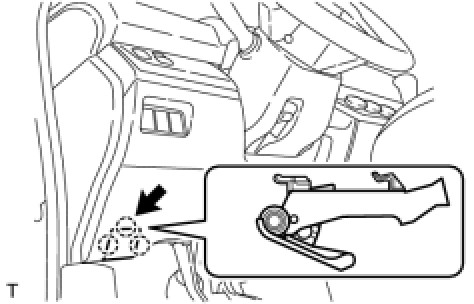

3. INSTALL HOOD LOCK CONTROL LEVER SUB-ASSEMBLY
(a) Engage the 3 claws and install the hood lock control lever.
