Installation

LIGHTING: REAR COMBINATION LIGHT ASSEMBLY: INSTALLATION

INSTALLATION





1. INSTALL REAR COMBINATION LIGHT BULB
(a) Install the rear combination light bulb into the light socket.

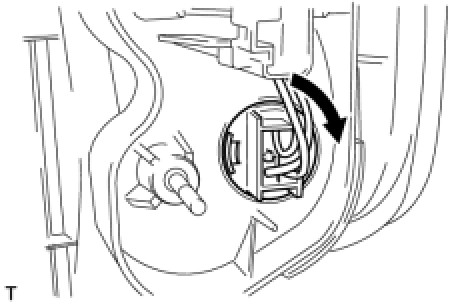

(b) Turn the rear combination light socket and bulb, in the direction indicated by the arrow in the illustration, to install them.





2. INSTALL REAR TURN SIGNAL LIGHT BULB
(a) Install the rear turn signal light bulb into the light socket.
(b) Turn the rear turn signal light socket and bulb, in the direction indicated by the arrow in the illustration, to install them.

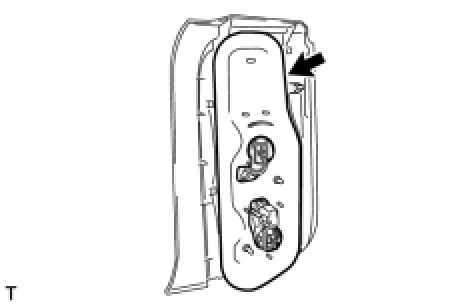

3. INSTALL REAR COMBINATION LIGHT LENS GASKET
(a) Install a new rear combination light lens gasket.

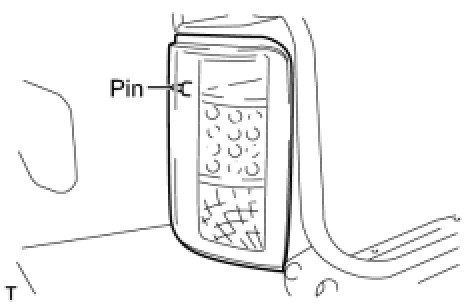

4. INSTALL REAR COMBINATION LIGHT ASSEMBLY





(a) Install the rear combination light onto the vehicle.





(b) Connect the connector.

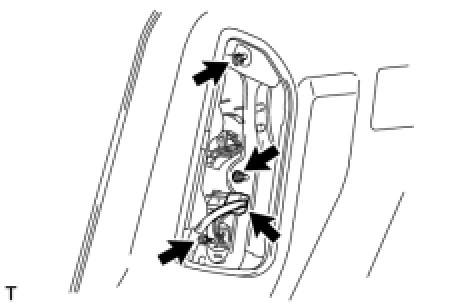

(c) Install the 3 nuts.
Torque: 3.2 Nm (32 kgf-cm, 28 in-lbf)

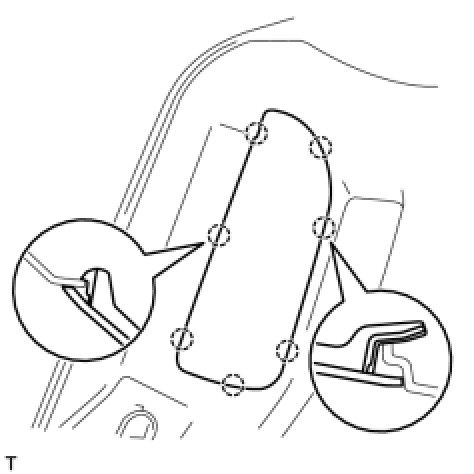

5. INSTALL REAR COMBINATION LIGHT SERVICE COVER
(a) Engage the 7 claws and install the rear combination light service cover.
