LIGHTING: HEADLIGHT DIMMER SWITCH: INSTALLATION

INSTALLATION

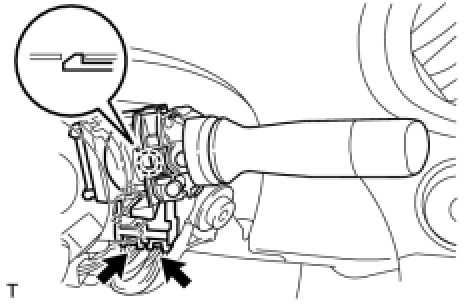

1. INSTALL HEADLIGHT DIMMER SWITCH





(a) Engage the 2 claws and install the headlight dimmer switch, as shown in the illustration.





(b) Install the headlight dimmer switch with the clamp.
(c) Connect the connector.

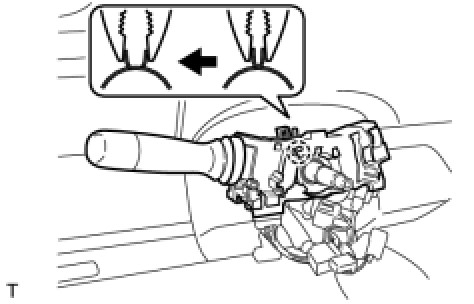

2. INSTALL WIPER SWITCH
(a) Engage the claw and install the windshield wiper switch.
(b) Connect the 2 connectors.
3. INSTALL SPIRAL CABLE Installation
4. INSTALL STEERING COLUMN COVER Installation
5. ADJUST SPIRAL CABLE Installation
6. INSTALL STEERING WHEEL ASSEMBLY Installation
7. INSTALL STEERING PAD Installation
8. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
Torque: 5.4 Nm (55 kgf-cm, 48 in-lbf)
9. INSPECT SRS WARNING LIGHT
Diagnosis System.
