Horn Relay: Testing and Inspection

HORN: INTEGRATION RELAY: ON-VEHICLE INSPECTION

ON-VEHICLE INSPECTION

1. REMOVE NO. 1 RELAY BLOCK COVER
2. REMOVE INTEGRATION NO.2 RELAY Removal

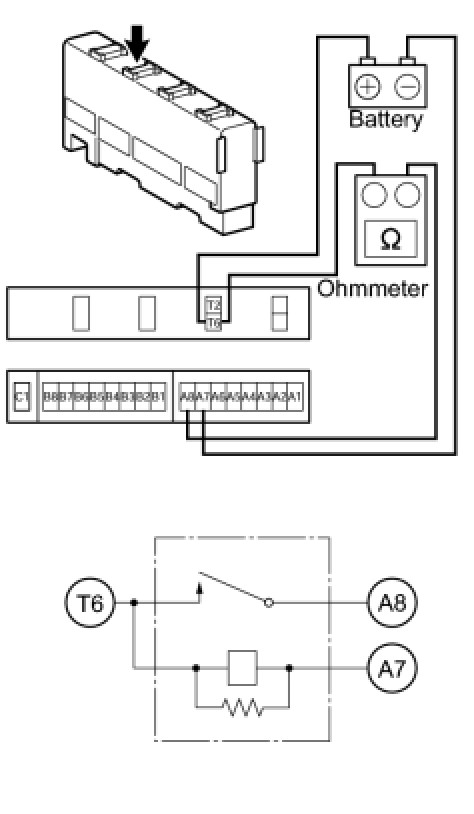

3. INSPECT INTEGRATION NO.2 RELAY
(a) Check the resistance.
(1) Remove the horn relay.
(2) Using an ohmmeter, measure the resistance between the terminals.

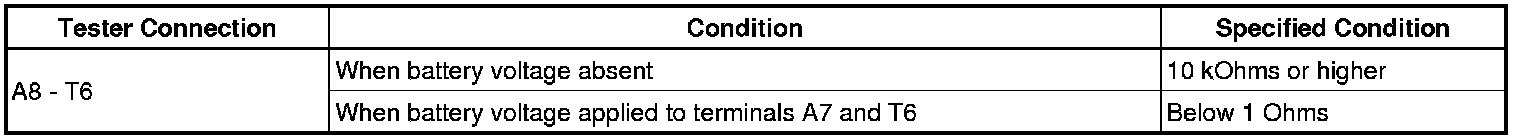

Standard resistance:






If the result is not as specified, replace the integration relay.
4. INSTALL INTEGRATION NO.2 RELAY Installation
5. INSTALL NO.1 RELAY BLOCK COVER
