High Pitched Horn

HORN: HIGH PITCHED HORN: INSPECTION

INSPECTION





1. INSPECT HIGH PITCHED HORN ASSEMBLY
(a) Check the operation.

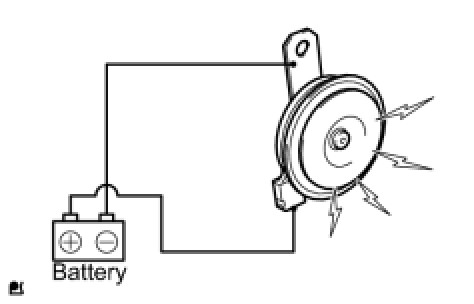

(1) Apply battery voltage to the terminal and the horn bracket, and check that the horn sounds.

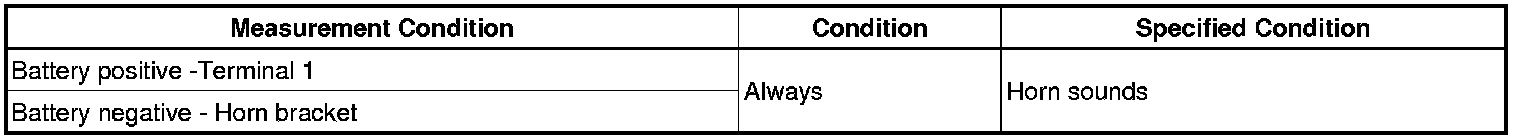

OK:






If the result is not as specified, replace the high pitched horn.
