Removal

HORN: LOW PITCHED HORN: REMOVAL

REMOVAL

1. REMOVE NO. 1 RADIATOR GRILLE GARNISH Removal
2. REMOVE RADIATOR GRILLE Removal

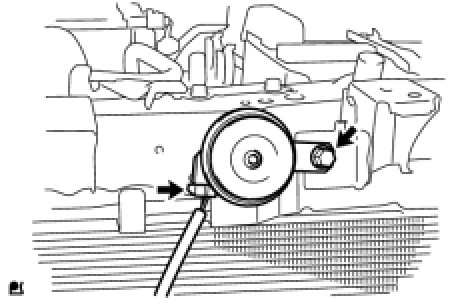

3. REMOVE LOW PITCHED HORN ASSEMBLY
(a) Disconnect the horn connector.
(b) Remove the bolt and the low pitched horn.
