HORN: HIGH PITCHED HORN: INSTALLATION

INSTALLATION





1. INSTALL HIGH PITCHED HORN ASSEMBLY

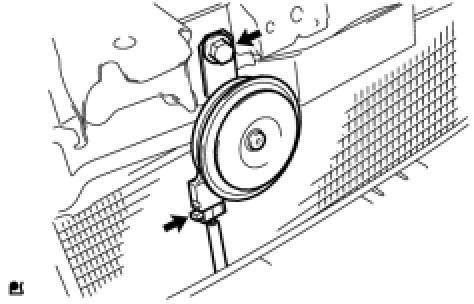

(a) Install the high pitched horn with the bolt.
Torque: 20 Nm (199 kgf-cm, 14 ft-lbf)
NOTICE: Do not place the low pitched horn over the stopper of the body.

(b) Connect the horn connector.
2. INSTALL RADIATOR GRILLE Installation
3. INSTALL NO. 1 RADIATOR GRILLE GARNISH Installation
