Installation

LIGHTING: HEADLIGHT ASSEMBLY: INSTALLATION

INSTALLATION





1. INSTALL HEADLIGHT UNIT
(a) Connect the 4 connectors.

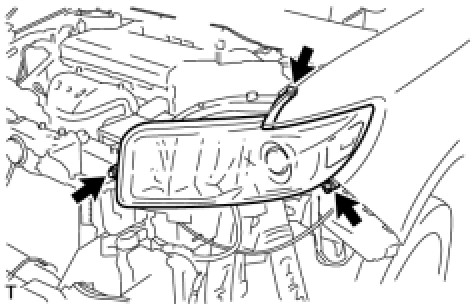

(b) Install the headlight with the 3 screws.
2. INSTALL FRONT BUMPER COVER Installation
3. INSTALL RADIATOR GRILLE Installation
4. INSTALL NO. 1 RADIATOR GRILLE GARNISH Installation
5. PREPARE VEHICLE FOR HEADLIGHT AIMING ADJUSTMENT Adjustments
6. PREPARE FOR HEADLIGHT AIMING (for Using a Tester) Adjustments
7. PREPARE FOR HEADLIGHT AIMING (for Using a Screen) Adjustments
8. INSPECT HEADLIGHT AIMING Adjustments
9. ADJUST HEADLIGHT AIMING Adjustments
