Room Light Assembly (for Luggage Compartment)

LIGHTING: ROOM LIGHT ASSEMBLY (for Luggage Compartment): INSPECTION

INSPECTION





1. INSPECT ROOM LIGHT ASSEMBLY
(a) Check the light operation.

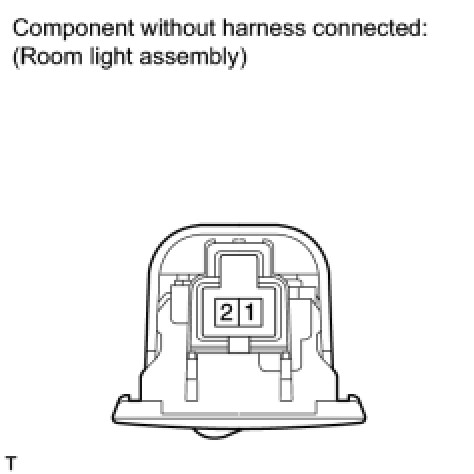

(1) Connect the positive (+) battery lead to terminal 2 and the negative (-) battery lead to terminal 1, then check that the light illuminates.
OK:
Light illuminates.
If the light does not illuminate, replace the bulb.
