Room Light Assembly (for Center)

LIGHTING: ROOM LIGHT ASSEMBLY (for Center): INSPECTION

INSPECTION





1. INSPECT ROOM LIGHT ASSEMBLY
(a) Check the resistance.
(1) Measure the resistance according to the value(s) in the table below.

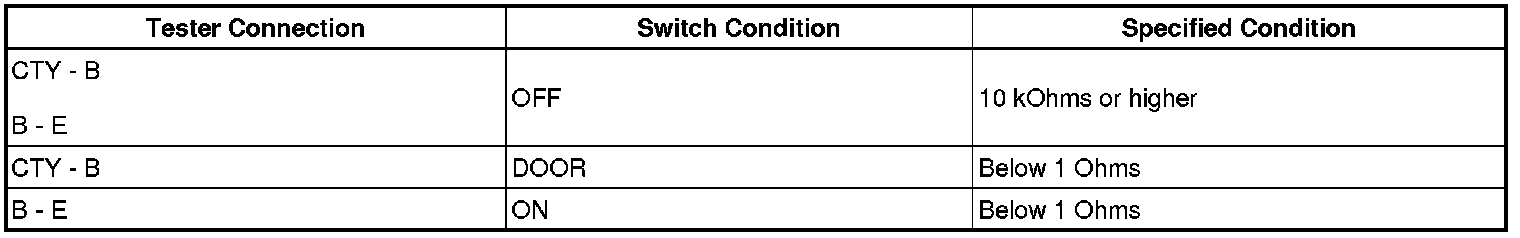

Standard resistance:






If the result is not as specified, replace the room light.
(b) Check the light operation.

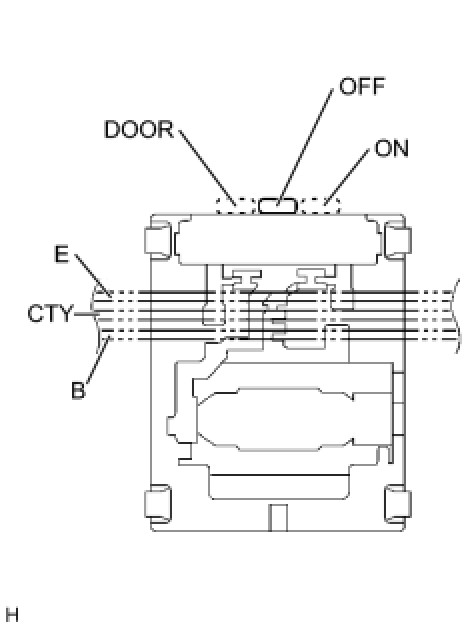

(1) Connect the positive (+) battery lead to terminal B and the negative (-) battery lead to terminal CTY, then check that the light illuminates when the switch is in the DOOR position.
OK:
Light illuminates.
If the light does not come on, replace the bulb.
(2) Connect the positive (+) battery lead to terminal B and the negative (-) battery lead to terminal E, then check that the light illuminates when the switch is in the ON position.
OK:
Light illuminates.
If the light does not illuminate, replace the bulb.
