Installation

LIGHTING: ROOM LIGHT ASSEMBLY (for Luggage Compartment): INSTALLATION

INSTALLATION

1. INSTALL NO. 2 ROOM LIGHT BULB

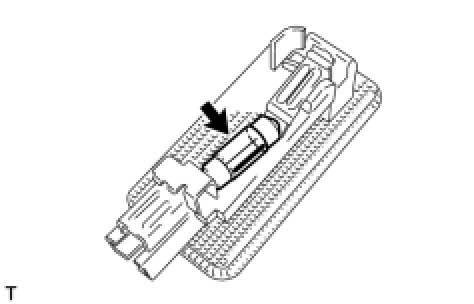

(a) Install No. 2 room light bulb.

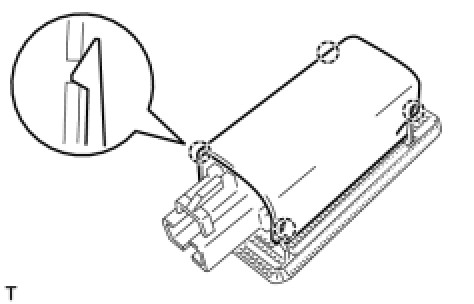

(b) Engage the 4 claws and install the shade.





2. INSTALL ROOM LIGHT ASSEMBLY
(a) Connect the connector.
(b) Engage the claw and install the room light.
