Removal

LIGHTING: BACK-UP LIGHT ASSEMBLY: REMOVAL

REMOVAL

1. REMOVE BACK-UP LIGHT ASSEMBLY





(a) Disconnect the connector.
(b) Remove the screw.





(c) Disengage the 2 claws and remove the back-up light.





2. REMOVE BACK-UP LIGHT BULB

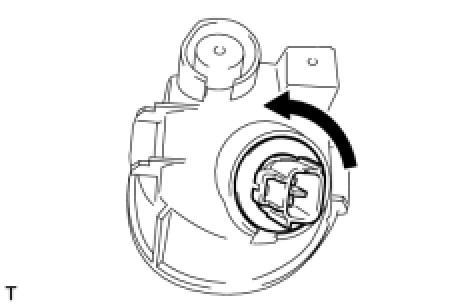

(a) Turn the back-up light socket and bulb, in the direction indicated by the arrow in the illustration, to remove them.
(b) Remove back-up light bulb from the light socket.
