Installation

LIGHTING: BACK-UP LIGHT ASSEMBLY: INSTALLATION

INSTALLATION





1. INSTALL BACK-UP LIGHT BULB
(a) Install the back-up light bulb into the light socket.

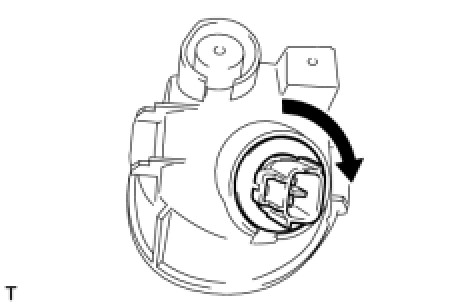

(b) Turn the back-up light socket and bulb, in the direction indicated by the arrow in the illustration, to install them.
2. INSTALL BACK-UP LIGHT ASSEMBLY

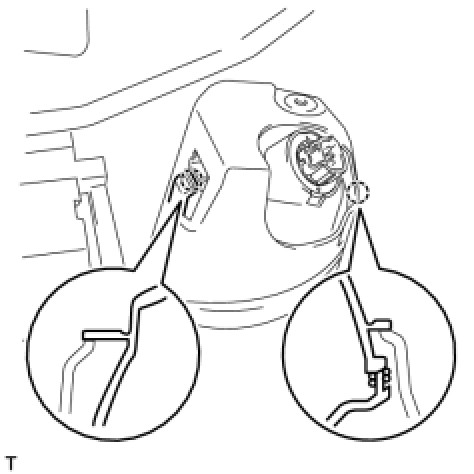

(a) Engage the 2 claws and install the back-up light.

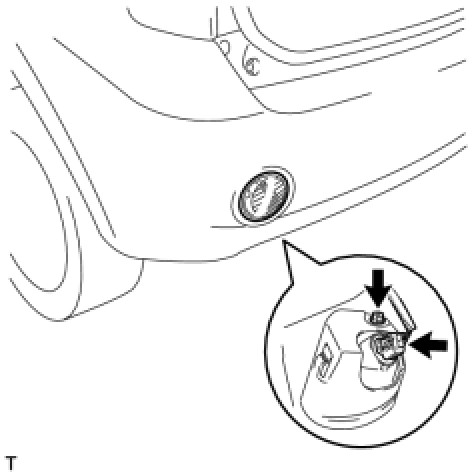

(b) Tighten the screw.
(c) Connect the connector.
