Installation

METER: COMBINATION METER: INSTALLATION

INSTALLATION

1. INSTALL COMBINATION METER ASSEMBLY

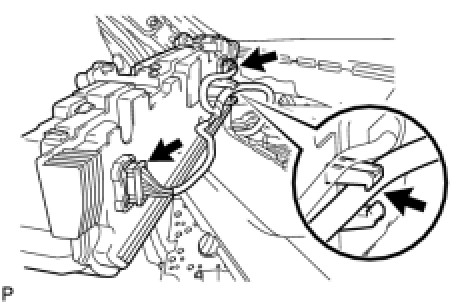

(a) Connect the 2 connectors.
(b) Install the wire harness.

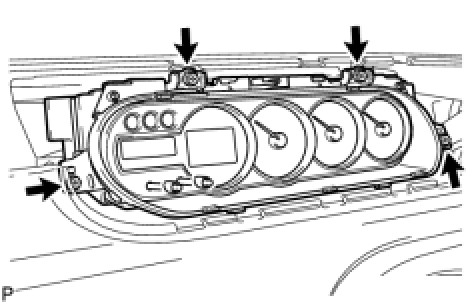

(c) Install the combination meter with 4 screws.
2. INSTALL INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY Installation
3. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
Torque: 5.4 Nm (55 kgf-cm, 48 in-lbf)
