Meter / Gauge System

METER: METER / GAUGE SYSTEM: SYSTEM DIAGRAM

SYSTEM DIAGRAM







METER: METER / GAUGE SYSTEM: SYSTEM DESCRIPTION

SYSTEM DESCRIPTION

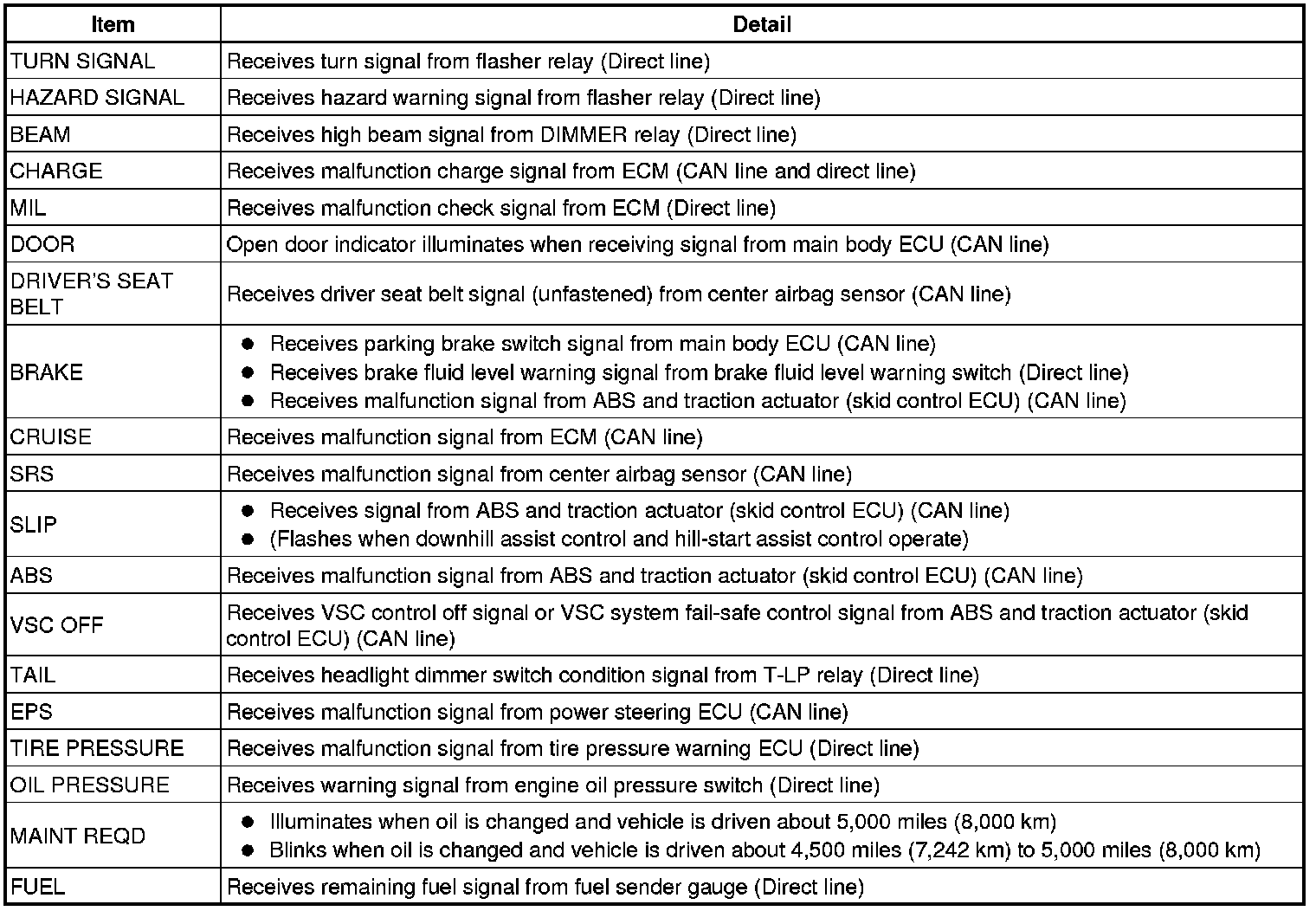

1. METER GAUGE AND WARNING / INDICATOR

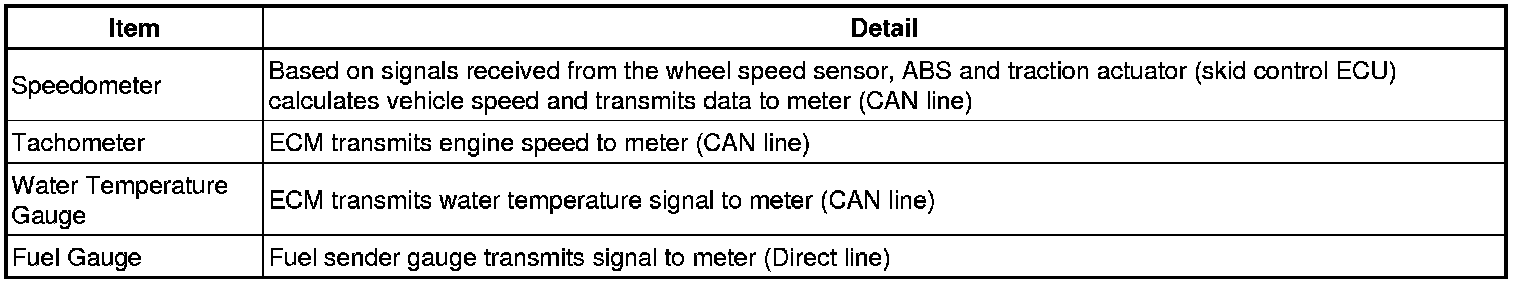

Gauge:





Warning / Indicator:

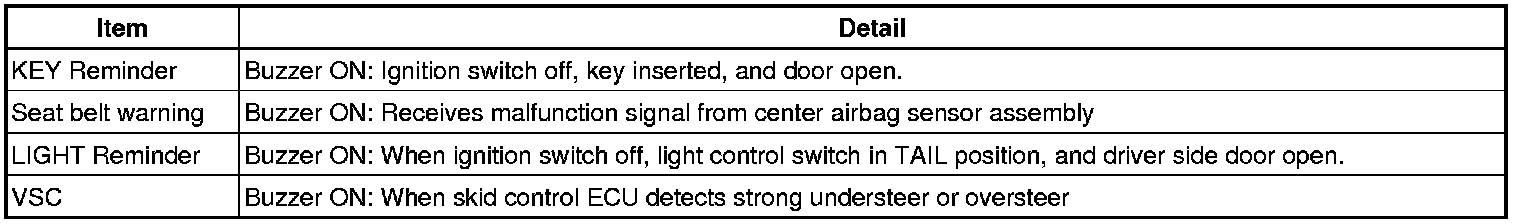

Warning / Buzzer:

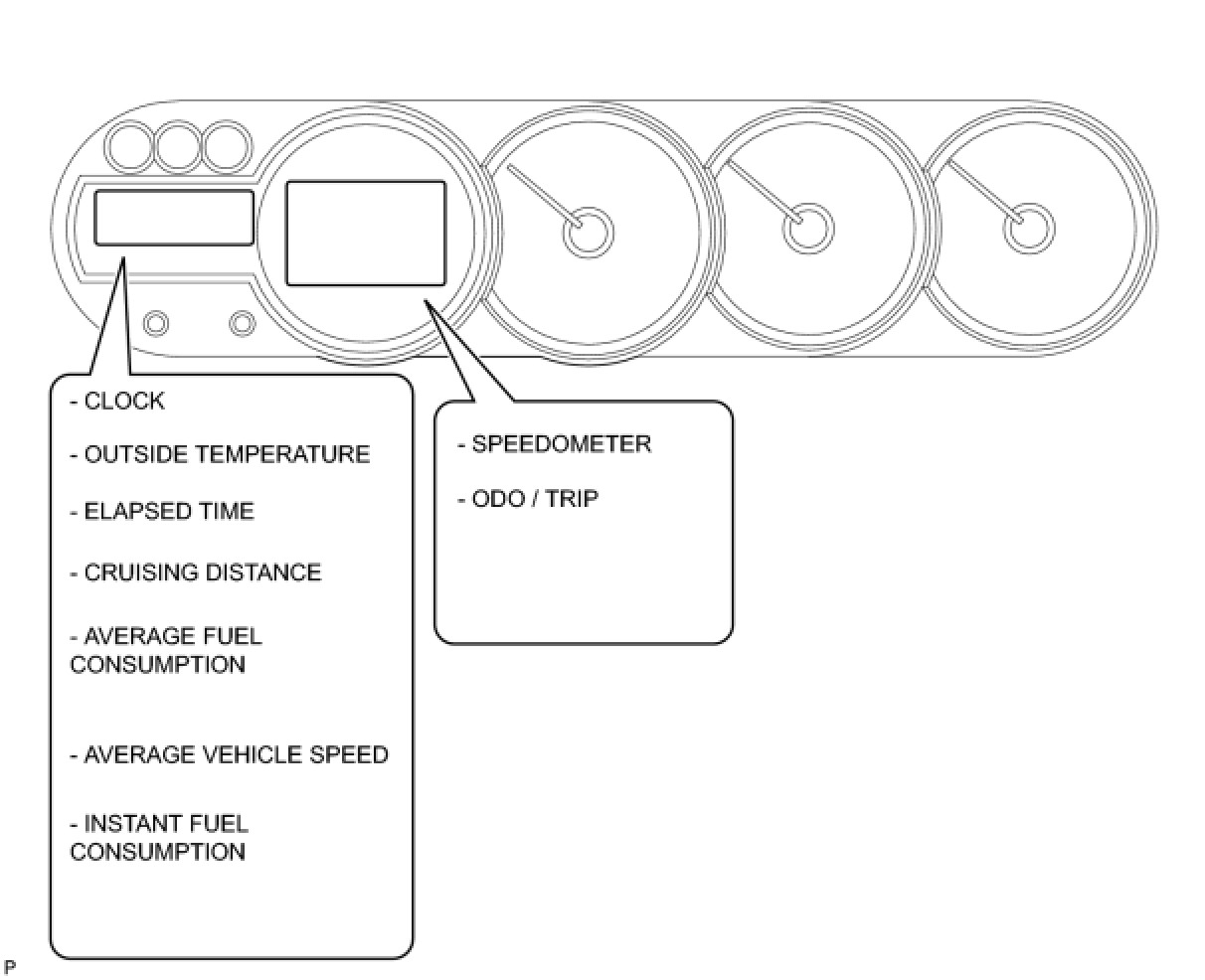

2. LIQUID CRYSTAL DISPLAY (LCD)
