AIR CONDITIONING: AMBIENT TEMPERATURE SENSOR: INSTALLATION

INSTALLATION

1. INSTALL AMBIENT TEMPERATURE SENSOR

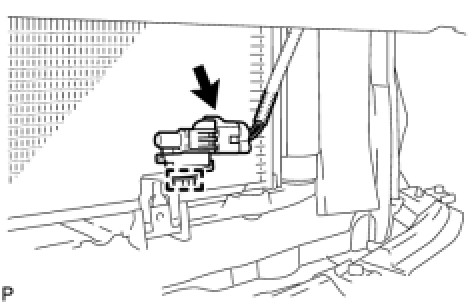

(a) Engage the clamp and install the ambient temperature sensor.
(b) Connect the connector.
2. INSTALL FRONT BUMPER COVER Installation
3. INSTALL RADIATOR GRILLE Installation
4. INSTALL NO. 1 RADIATOR GRILLE GARNISH Installation
