Removal

AIR CONDITIONING: AIR CONDITIONING PANEL: REMOVAL

REMOVAL

1. TABLE OF BOLT, SCREW AND NUT Removal
2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Wait at least 90 seconds after disconnecting the cable to prevent the airbag working.

3. SEPARATE FRONT DOOR OPENING TRIM WEATHERSTRIP RH Removal
4. SEPARATE FRONT DOOR OPENING TRIM WEATHERSTRIP LH Removal
5. REMOVE FRONT PILLAR GARNISH RH Removal
6. REMOVE FRONT PILLAR GARNISH LH Removal
7. REMOVE INSTRUMENT CLUSTER FINISH CENTER PANEL SUB-ASSEMBLY Removal
8. REMOVE INSTRUMENT CLUSTER FINISH LOWER PANEL Removal
9. REMOVE INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY Removal
10. REMOVE COMBINATION METER ASSEMBLY Removal
11. REMOVE GLOVE COMPARTMENT DOOR ASSEMBLY Removal
12. REMOVE UPPER INSTRUMENT PANEL SUB-ASSEMBLY Removal
13. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transaxle) Removal
14. REMOVE INSTRUMENT CLUSTER FINISH CENTER LOWER PANEL Removal

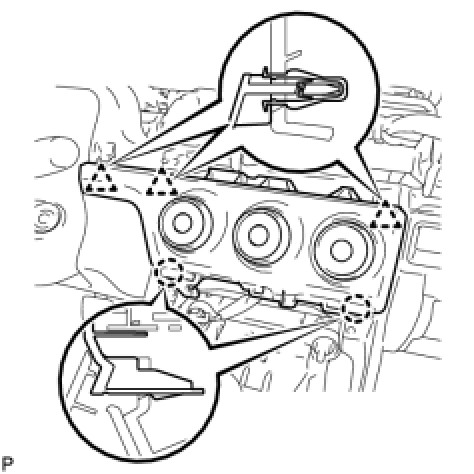

15. SEPARATE AIR CONDITIONING PANEL ASSEMBLY





(a) Disengage the 3 clips, 2 claws and separate the air conditioning panel.

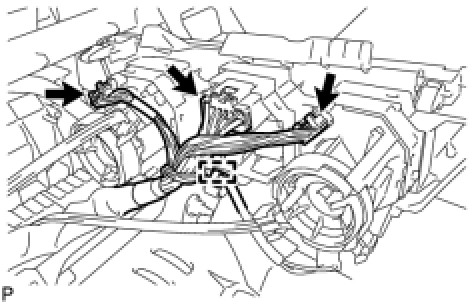

(b) Disconnect the 3 connectors and clamp.

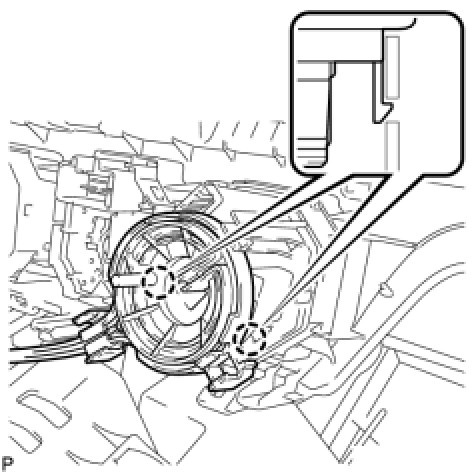

16. DISCONNECT NO. 2 HEATER CONTROL CABLE SUB-ASSEMBLY





(a) Disengage the 2 claws and disconnect the heater control cable.

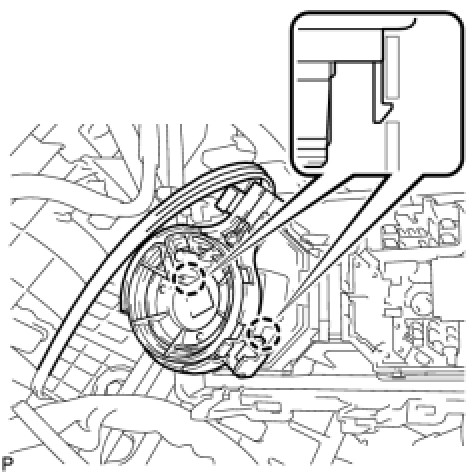

17. DISCONNECT AIR MIX DAMPER CONTROL CABLE SUB-ASSEMBLY





(a) Disengage the 2 claws and connect the air mix damper control cable.
