AIR CONDITIONING: CONDENSER: REASSEMBLY

REASSEMBLY

1. INSTALL COOLER DRYER

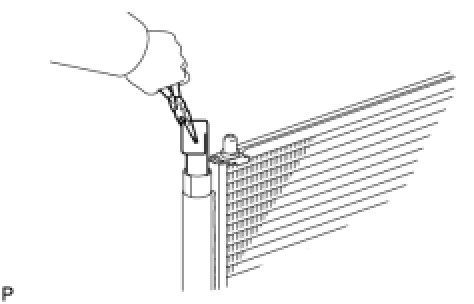

(a) Using pliers, install the cooler dryer onto the modulator.

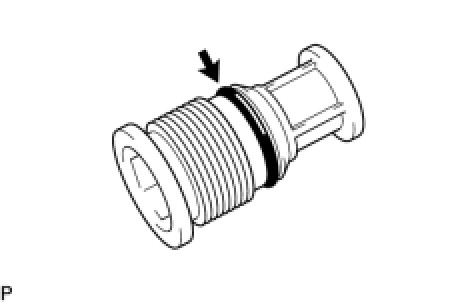

(b) Apply sufficient compressor oil to the O-ring and the fitting surface of the cap.
Compressor oil:
ND-OIL 8 or equivalent

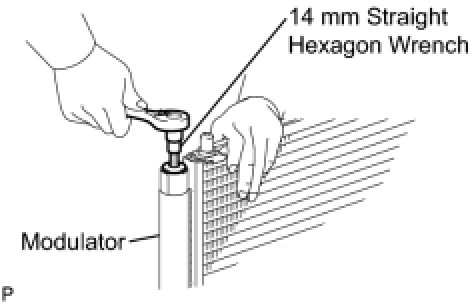

(c) Using a 14 mm straight hexagon wrench, install the cap onto the cooler condenser core.
Torque: 2.9 Nm (30 kgf-cm, 26 in-lbf)





2. INSTALL NO. 1 COOLER CONDENSER CUSHION

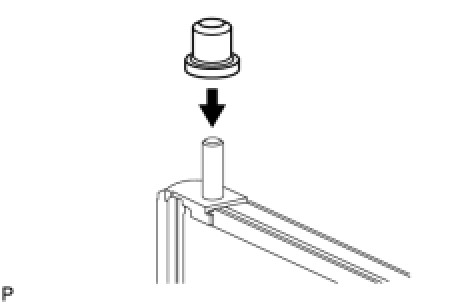

(a) Install the 4 cooler condenser cushions.
