Disassembly

AIR CONDITIONING: CONDENSER: DISASSEMBLY

DISASSEMBLY

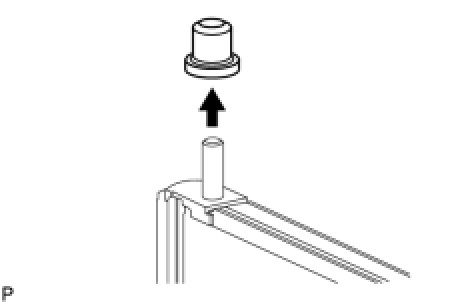

1. REMOVE NO. 1 COOLER CONDENSER CUSHION
(a) Remove the 4 cooler condenser cushions.
2. REMOVE COOLER DRYER





(a) Using a 14 mm straight hexagon wrench, remove the cap from the modulator.





(b) Using pliers, remove the cooler dryer.
