Blower Motor: Testing and Inspection

AIR CONDITIONING: FRONT BLOWER MOTOR: INSPECTION

INSPECTION

1. INSPECT BLOWER MOTOR

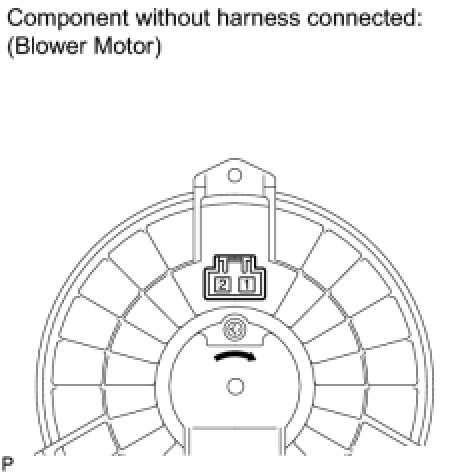

(a) Connect the positive (+) lead from the battery to terminal 2 and negative (-) to terminal 1, and check that the motor operates.
OK:
The blower motor operates smoothly.
If the result is not as specified, replace blower motor.
