Installation








AIR CONDITIONING: FRONT BLOWER MOTOR: INSTALLATION

INSTALLATION

1. INSTALL BLOWER MOTOR SUB-ASSEMBLY

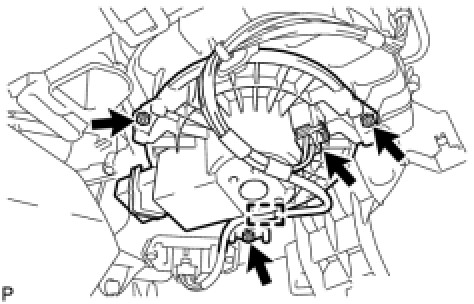

(a) Install the blower motor sub-assembly with the 3 screws.
(b) Connect the connector and clamp.
