Removal








AIR CONDITIONING: FRONT BLOWER RESISTOR: REMOVAL

REMOVAL

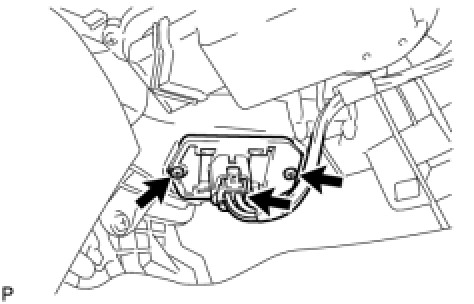

1. REMOVE BLOWER RESISTOR





(a) Disconnect the connector.
(b) Remove the 2 screws and the blower resistor.
