2AZ-FE ENGINE MECHANICAL: FRONT CRANKSHAFT OIL SEAL: INSTALLATION

INSTALLATION

1. INSTALL FRONT CRANKSHAFT OIL SEAL
(a) Apply MP grease to the lip of a new oil seal.

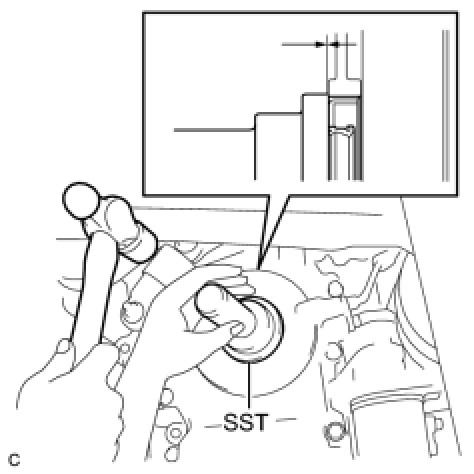

(b) Using SST and a hammer, tap in the oil seal until its surface is flush with the rear oil seal retainer edge.
SST: 09223-22010

NOTICE:
- Keep the lip free from foreign matter.
- Do not tap on the oil seal at an angle.





2. INSTALL CRANKSHAFT PULLEY
(a) Using SST, fix the pulley in place and tighten the bolt.
SST: 09213-54015
91651-60855
SST: 09330-00021
Torque: 180 Nm (1835 kgf-cm, 133 ft-lbf)
3. INSTALL FAN & GENERATOR V BELT Installation
4. INSPECT FOR ENGINE OIL LEAK
5. INSPECT ENGINE OIL LEVEL Testing and Inspection
6. INSTALL REAR ENGINE UNDER COVER RH
7. INSTALL FRONT WHEEL RH
Torque: 103 Nm (1050 kgf-cm, 76 ft-lbf)
