Removal

2AZ-FE COOLING: COOLING FAN MOTOR: REMOVAL

REMOVAL

1. REFRIGERANT FROM REFRIGERATION SYSTEM Service and Repair
2. REMOVE NO. 1 RADIATOR GRILLE GARNISH Removal
3. REMOVE RADIATOR GRILLE Removal
4. REMOVE FRONT BUMPER COVER Removal
5. DRAIN ENGINE COOLANT Service and Repair
6. REMOVE BATTERY Removal
7. SEPARATE NO. 1 WATER HOSE CLAMP BRACKET Removal
8. SEPARATE HOOD LOCK CONTROL CABLE ASSEMBLY Removal
9. REMOVE HOOD LOCK SUPPORT SUB-ASSEMBLY Removal
10. DISCONNECT INLET RADIATOR HOSE Removal
11. DISCONNECT OUTLET RADIATOR HOSE Removal
12. REMOVE RADIATOR SUPPORT CUSHION Removal
13. REMOVE NO. 2 FAN SHROUD Removal
14. SEPARATE DISCHARGE HOSE SUB-ASSEMBLY Removal
15. SEPARATE AIR CONDITIONING TUBE AND ACCESSORY ASSEMBLY Removal
16. REMOVE CONDENSER Removal
17. DISCONNECT NO. 1 WATER BY-PASS HOSE Removal
18. REMOVE RADIATOR ASSEMBLY Removal
19. REMOVE LOWER RADIATOR SUPPORT Removal
20. REMOVE INLET RADIATOR HOSE Removal
21. REMOVE OUTLET RADIATOR HOSE Removal
22. REMOVE FAN SHROUD Removal

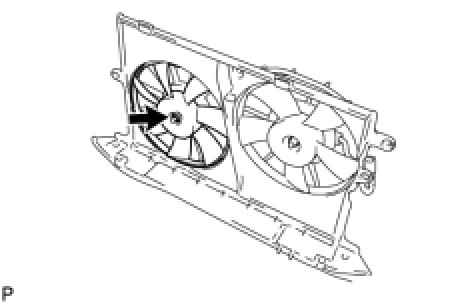

23. REMOVE NO. 2 FAN





(a) Remove the nut and No. 2 fan.

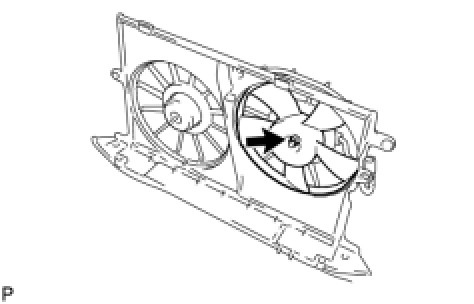

24. REMOVE FAN





(a) Remove the nut and fan.

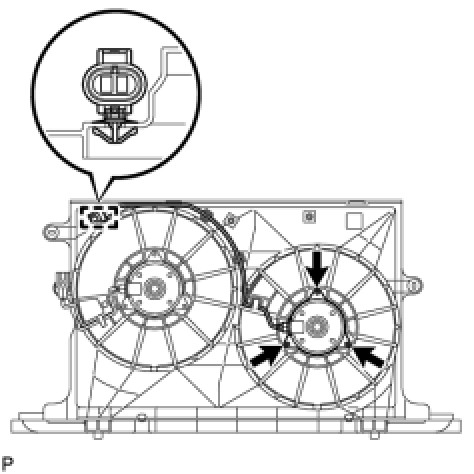

25. REMOVE NO. 2 COOLING FAN MOTOR





(a) Separate the wire harness clamp.
(b) Remove the 3 bolts and No. 2 cooling fan motor.

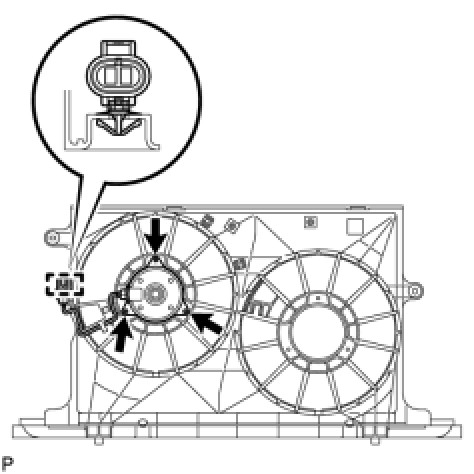

26. REMOVE COOLING FAN MOTOR





(a) Separate the wire harness clamp.
(b) Remove the 3 bolts and cooling fan motor.
