xB L4-2.4L (2AZ-FE)
>>
Repair and Diagnosis
>>
Engine, Cooling and Exhaust
>>
Cooling System
>>
Radiator Cooling Fan
>>
Description and Operation
Radiator Cooling Fan: Description and Operation

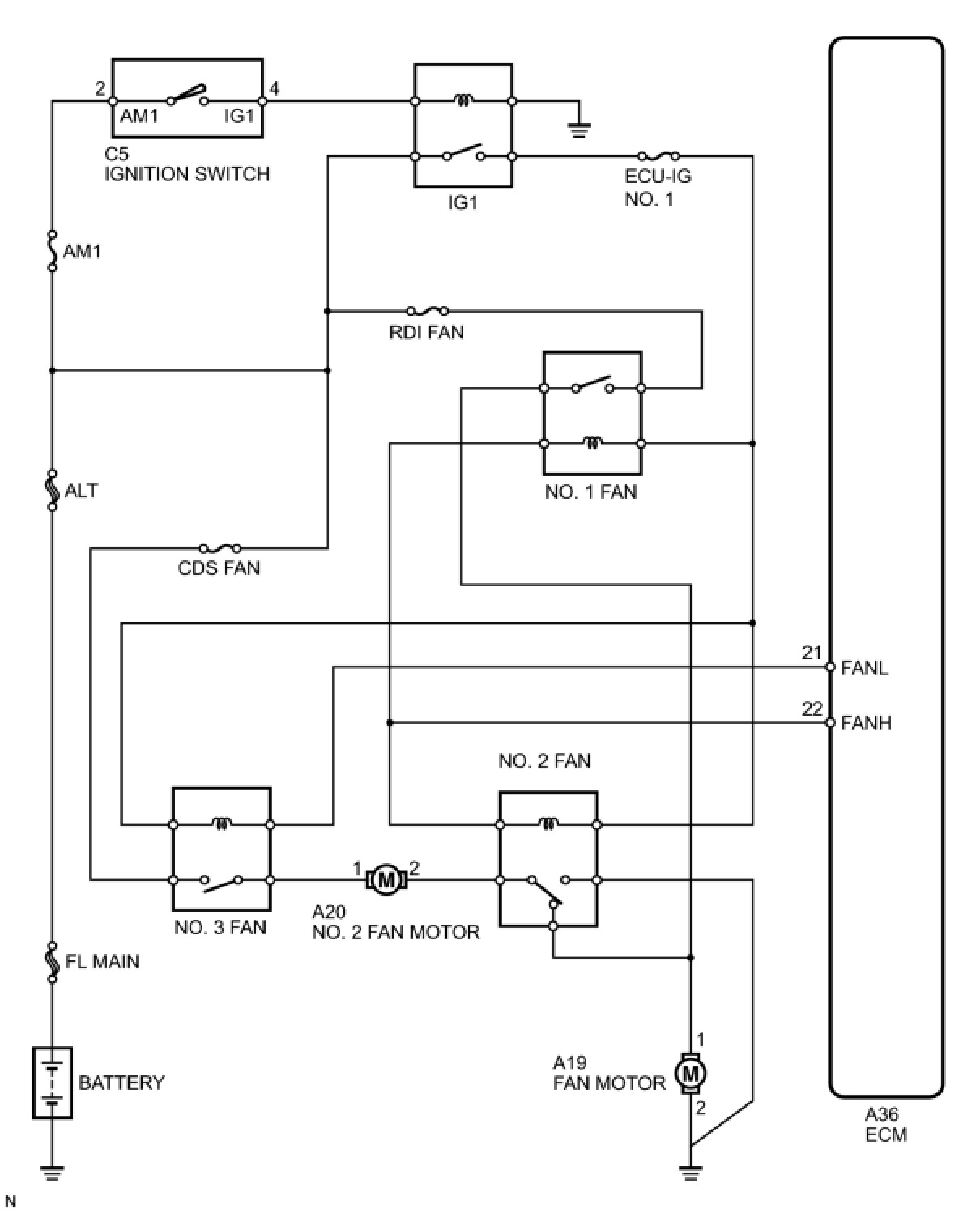

2AZ-FE COOLING: COOLING FAN SYSTEM: SYSTEM DIAGRAM
SYSTEM DIAGRAM
