Relay Box

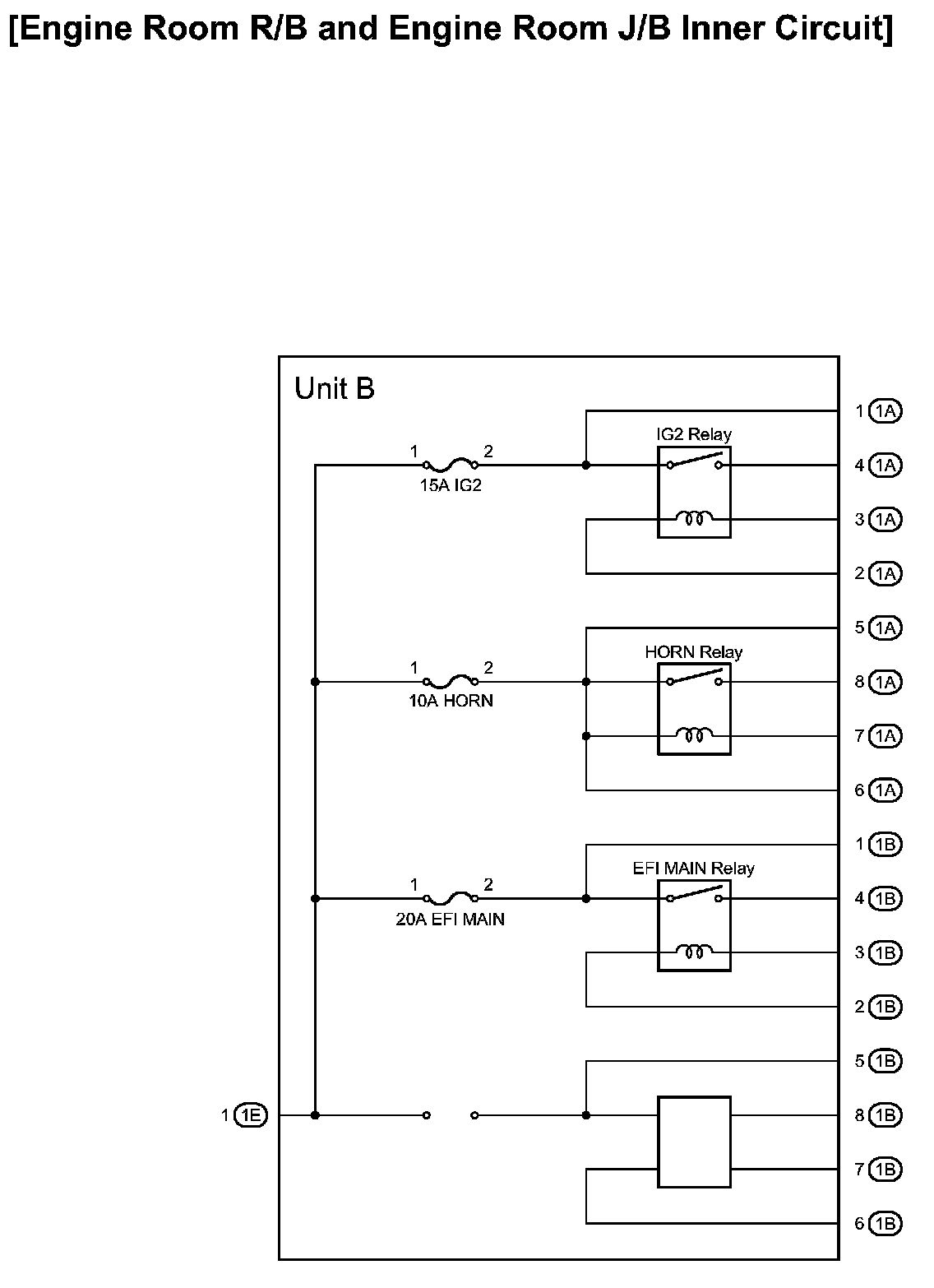

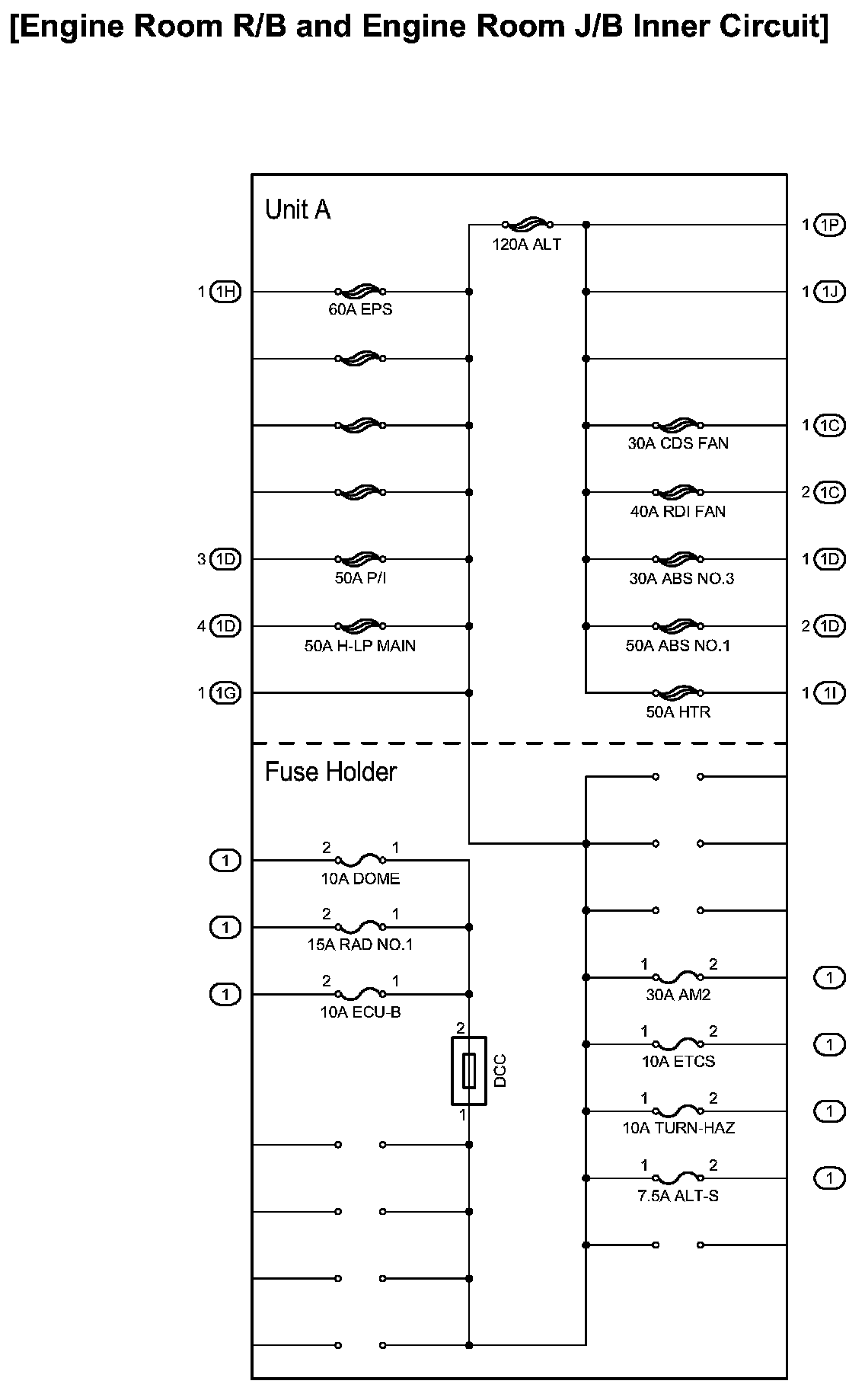

Engine Room R/B, J/B Inner Circuit:

Engine Room R/B, J/B Inner Circuit:

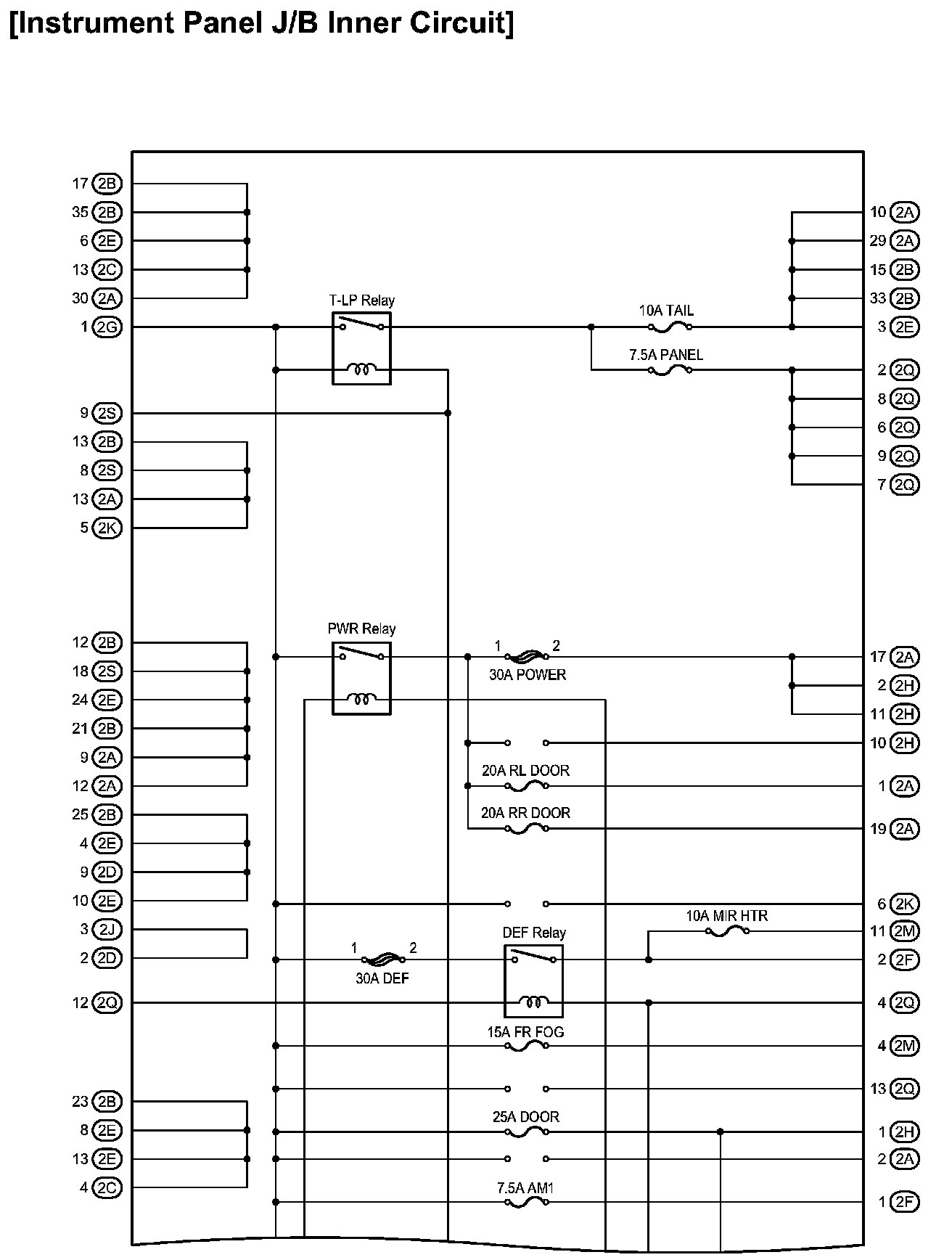

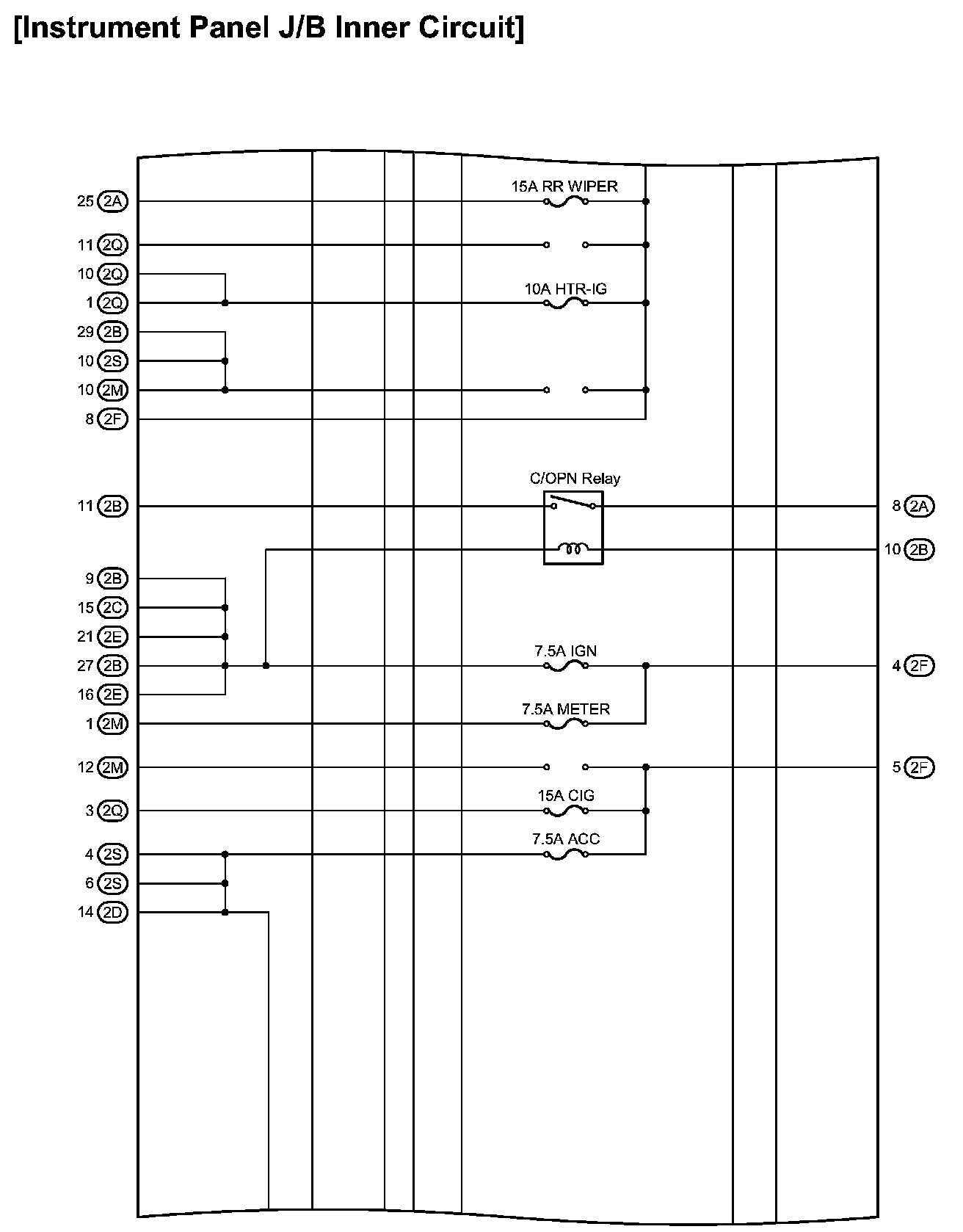

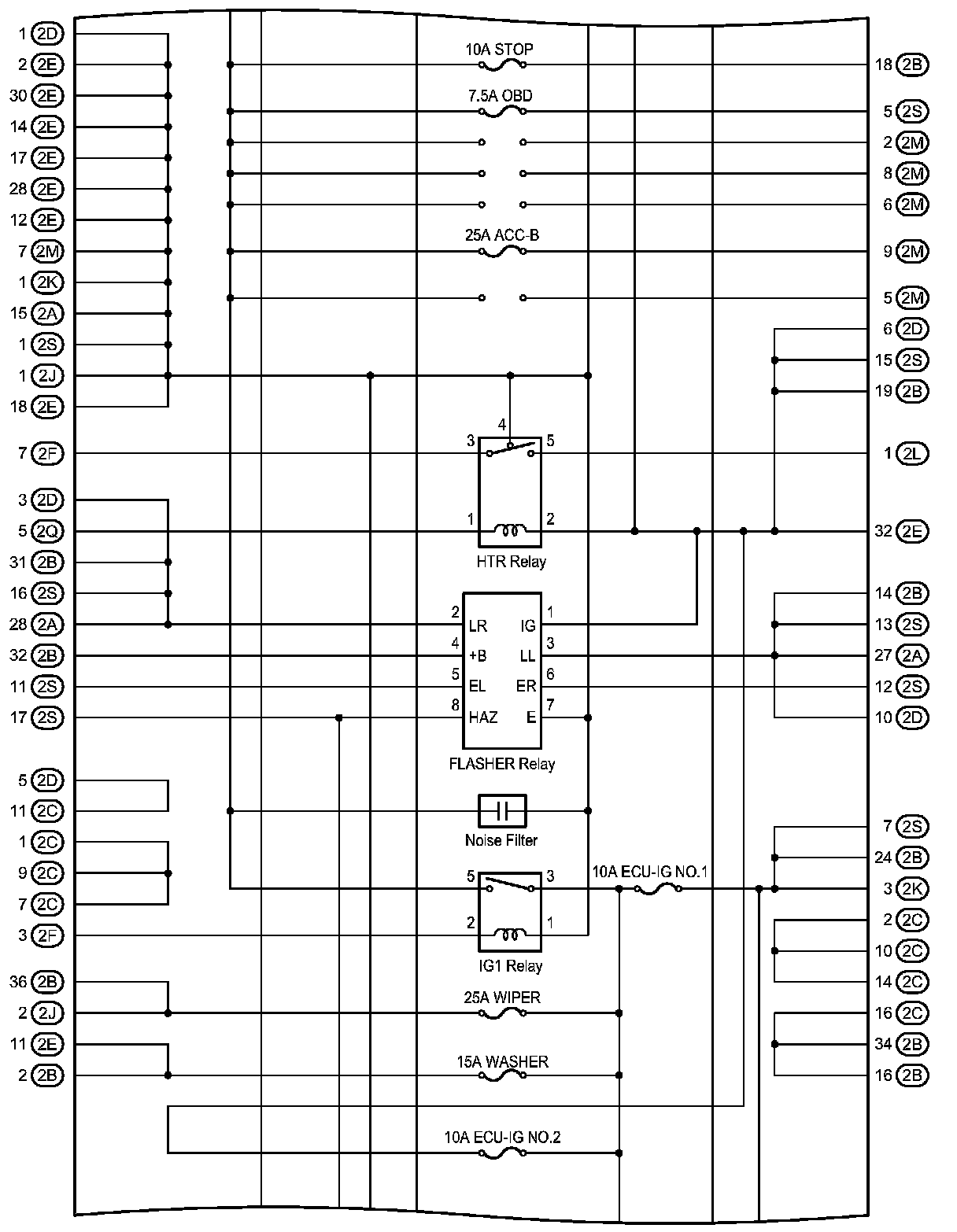

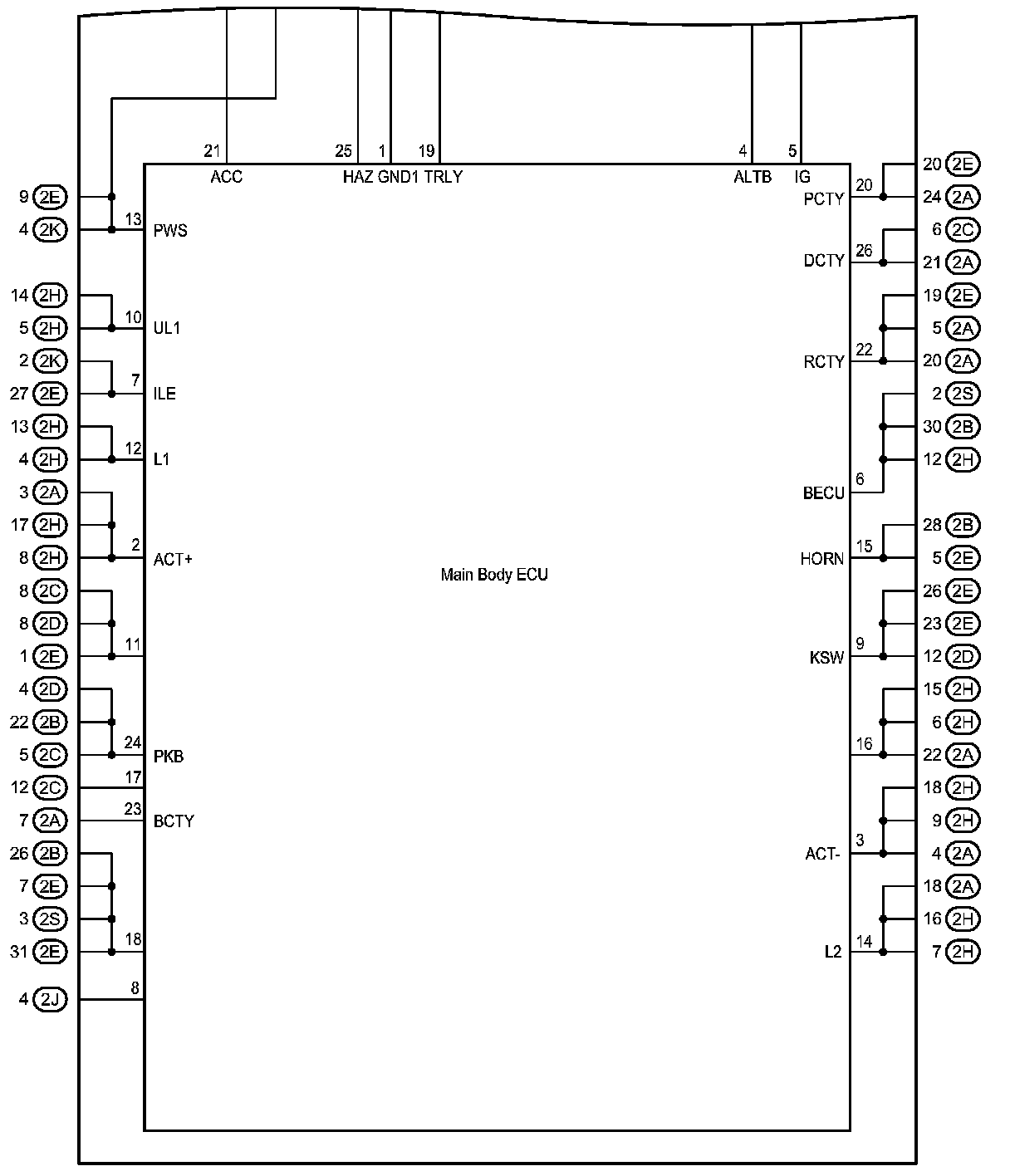

Instrument Panel J/B Inner Circuit:

Instrument Panel J/B Inner Circuit:

Instrument Panel J/B Inner Circuit:

Instrument Panel J/B Inner Circuit:

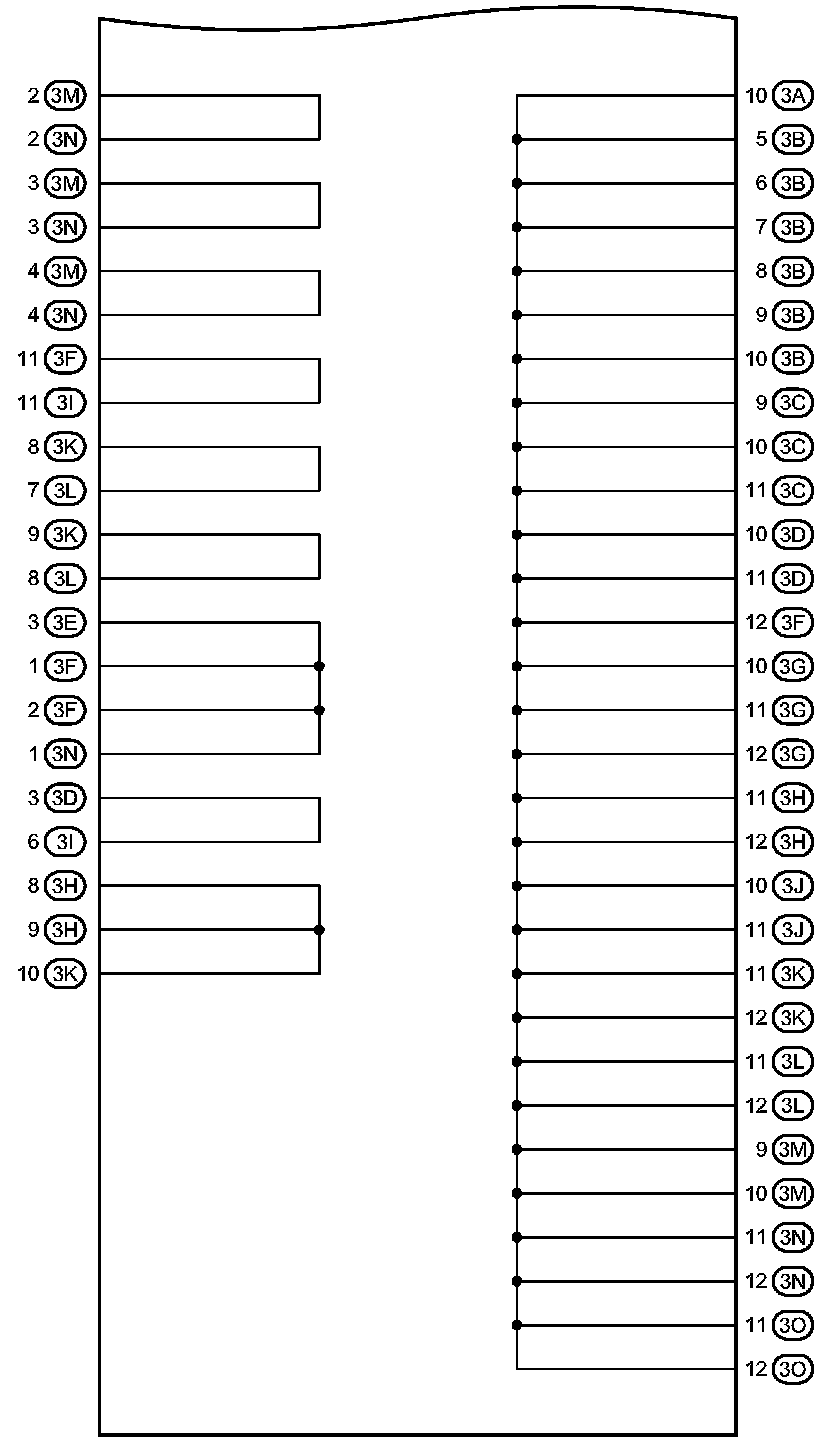

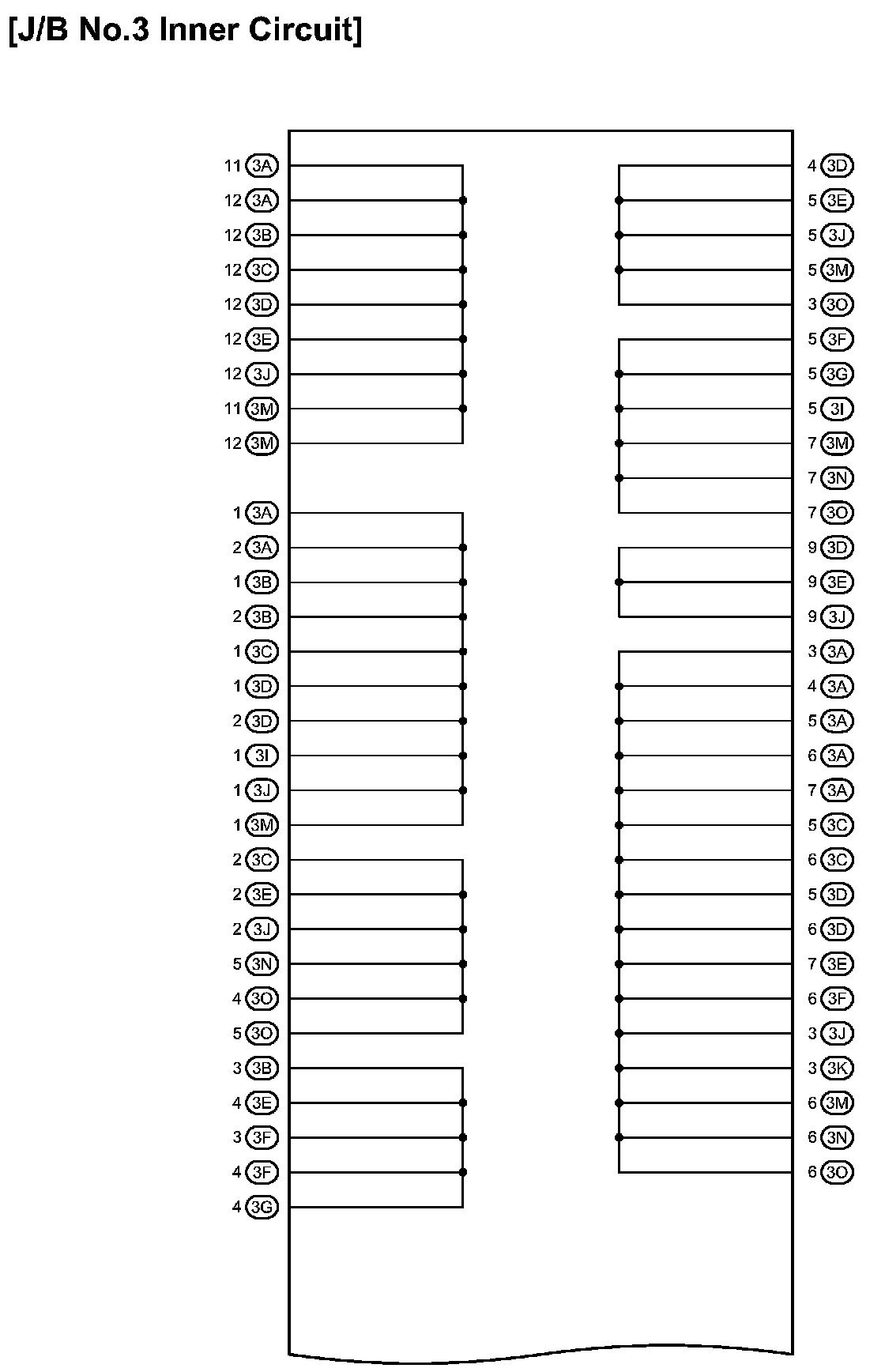

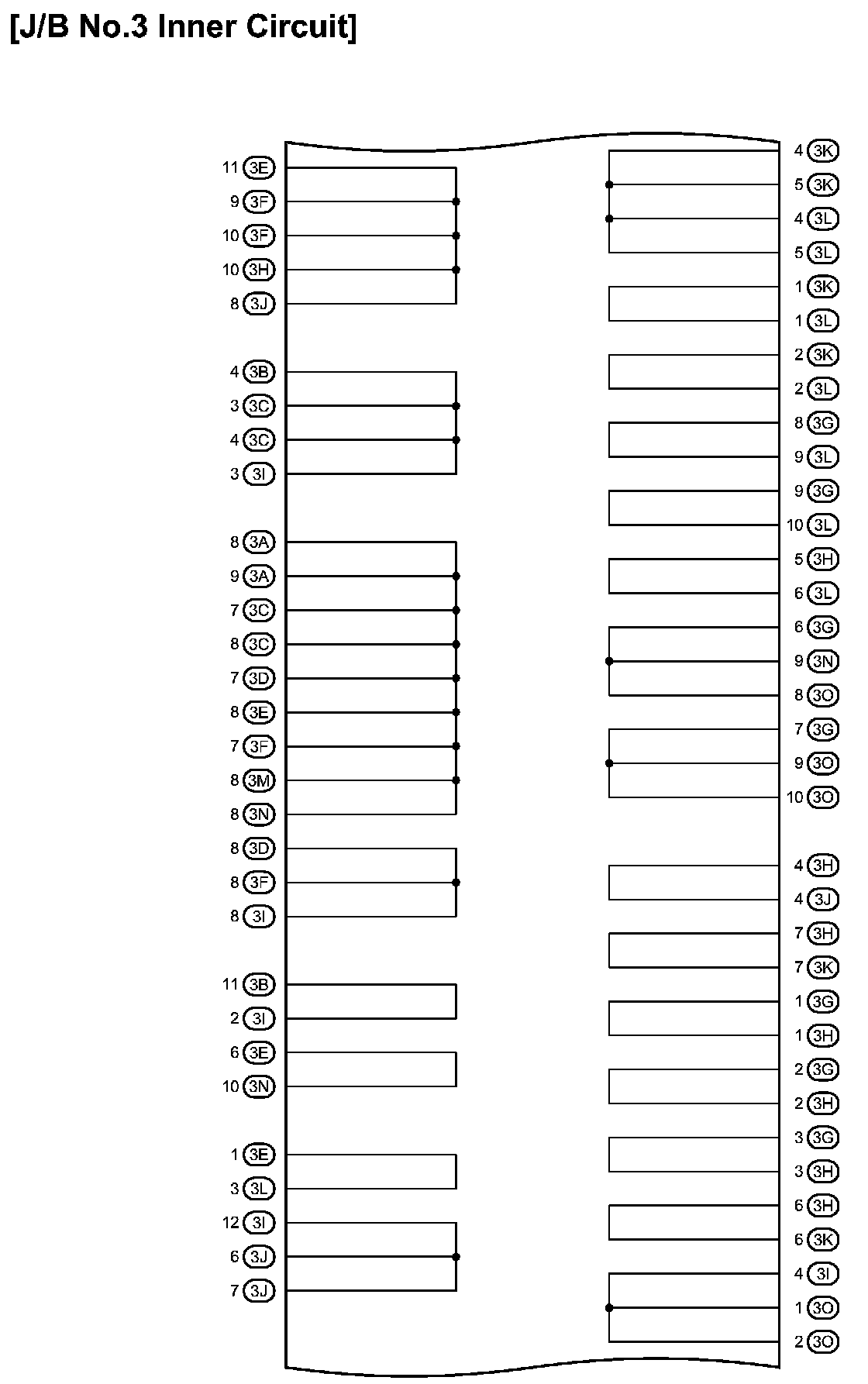

J/B No.3 Inner Circuit:

J/B No.3 Inner Circuit:

J/B No.3 Inner Circuit:

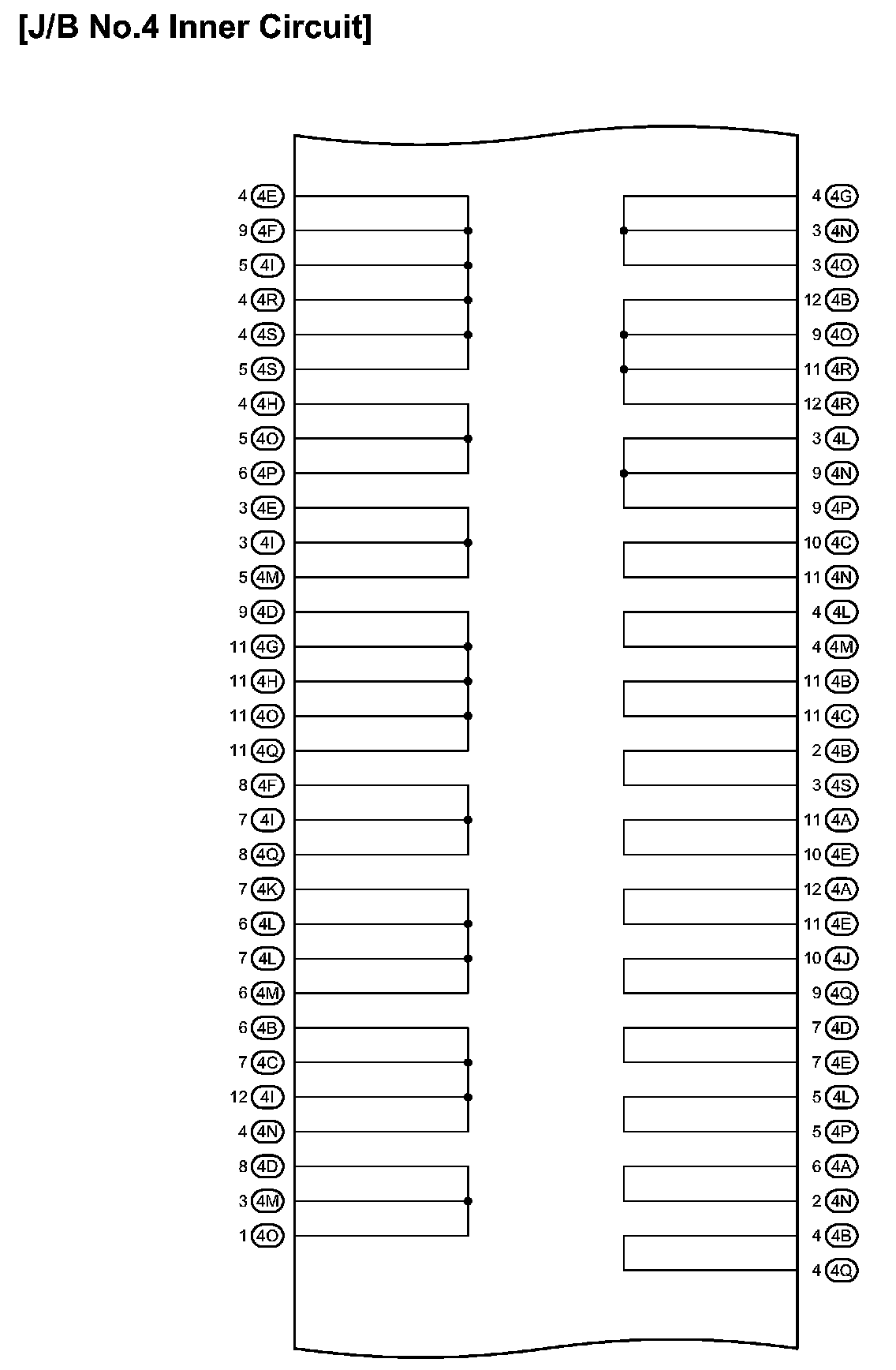

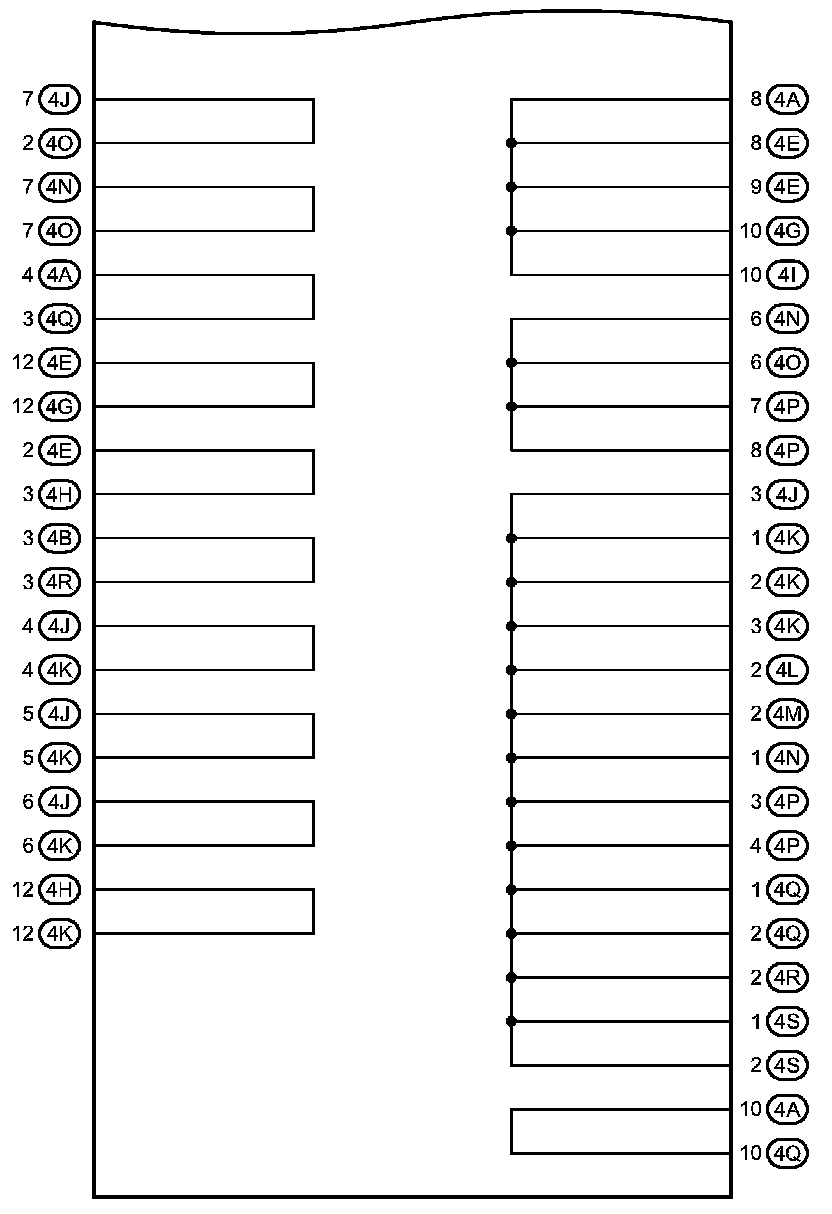

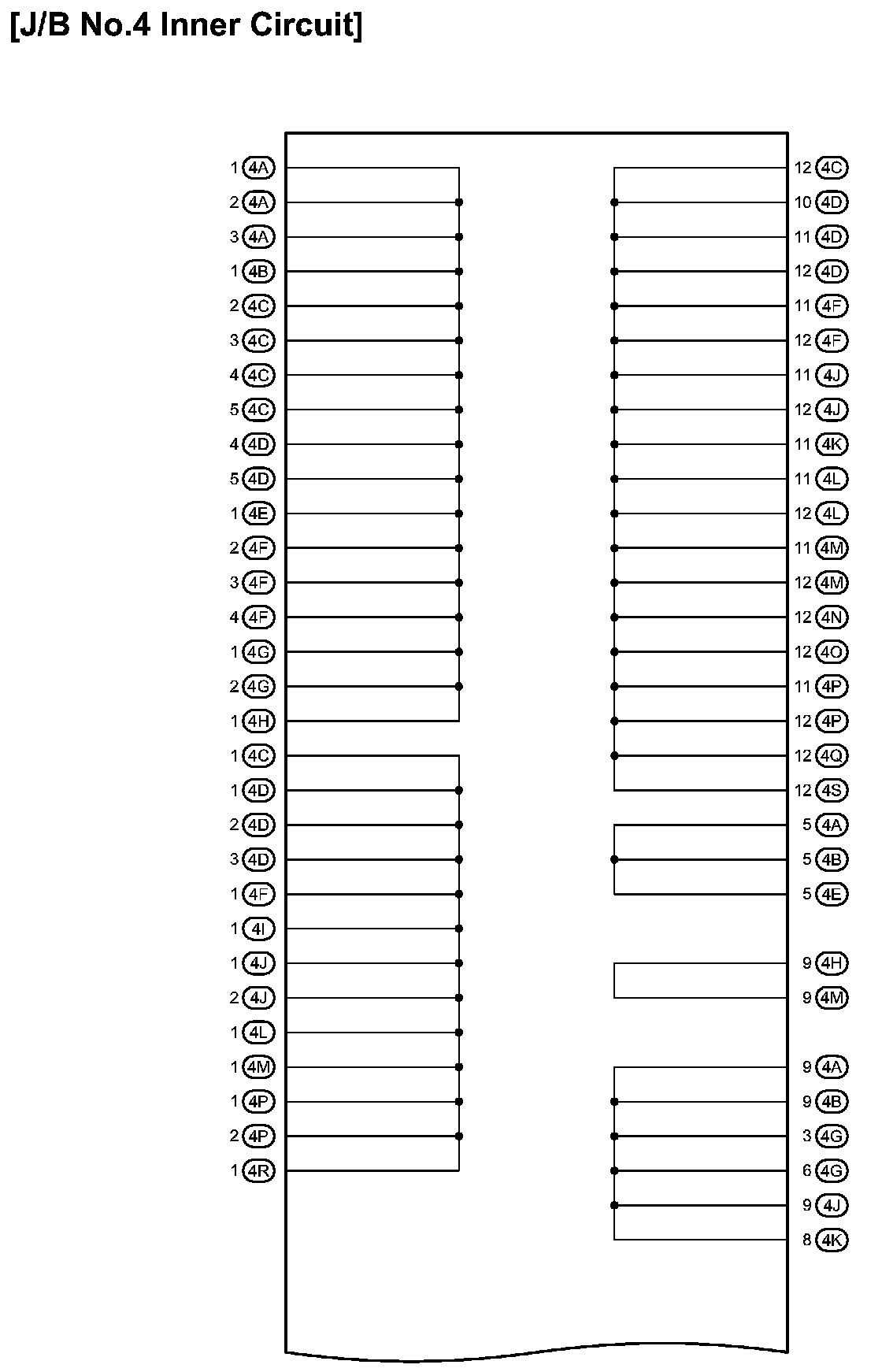

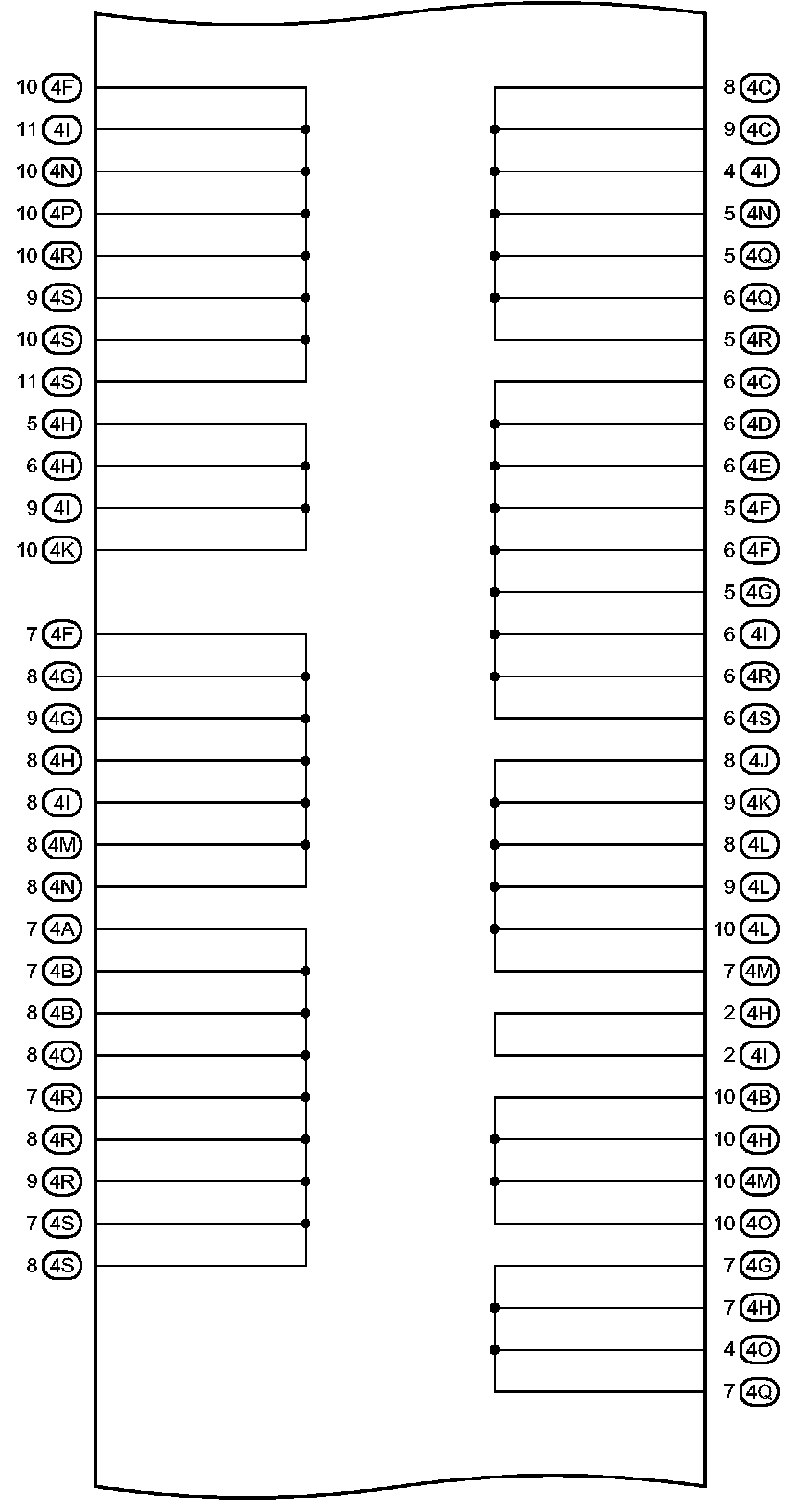

J/B No.4 Inner Circuit:

J/B No.4 Inner Circuit:

J/B No.4 Inner Circuit:

J/B No.4 Inner Circuit:
