Light Reminder

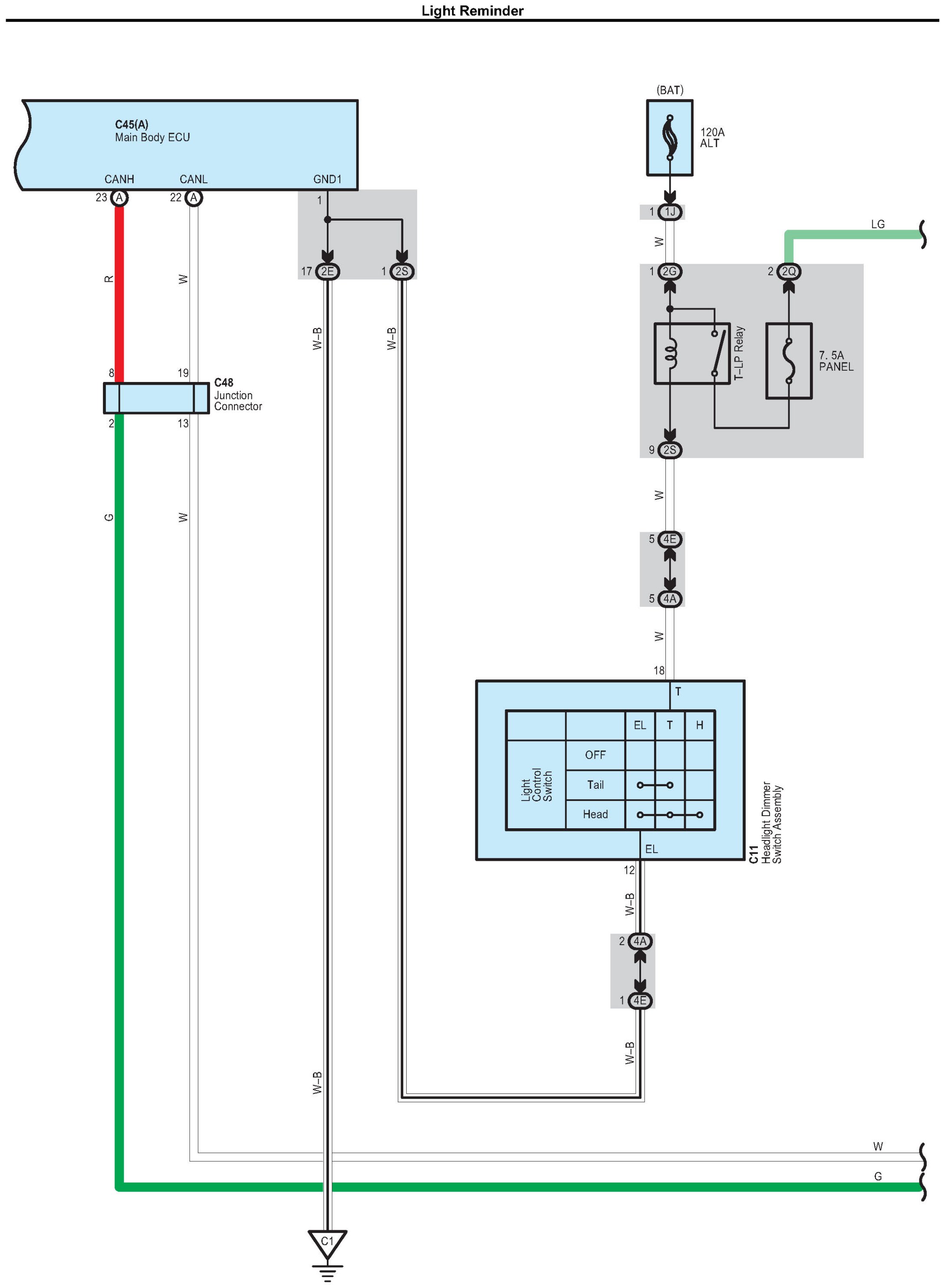

Light Reminder Part 1:

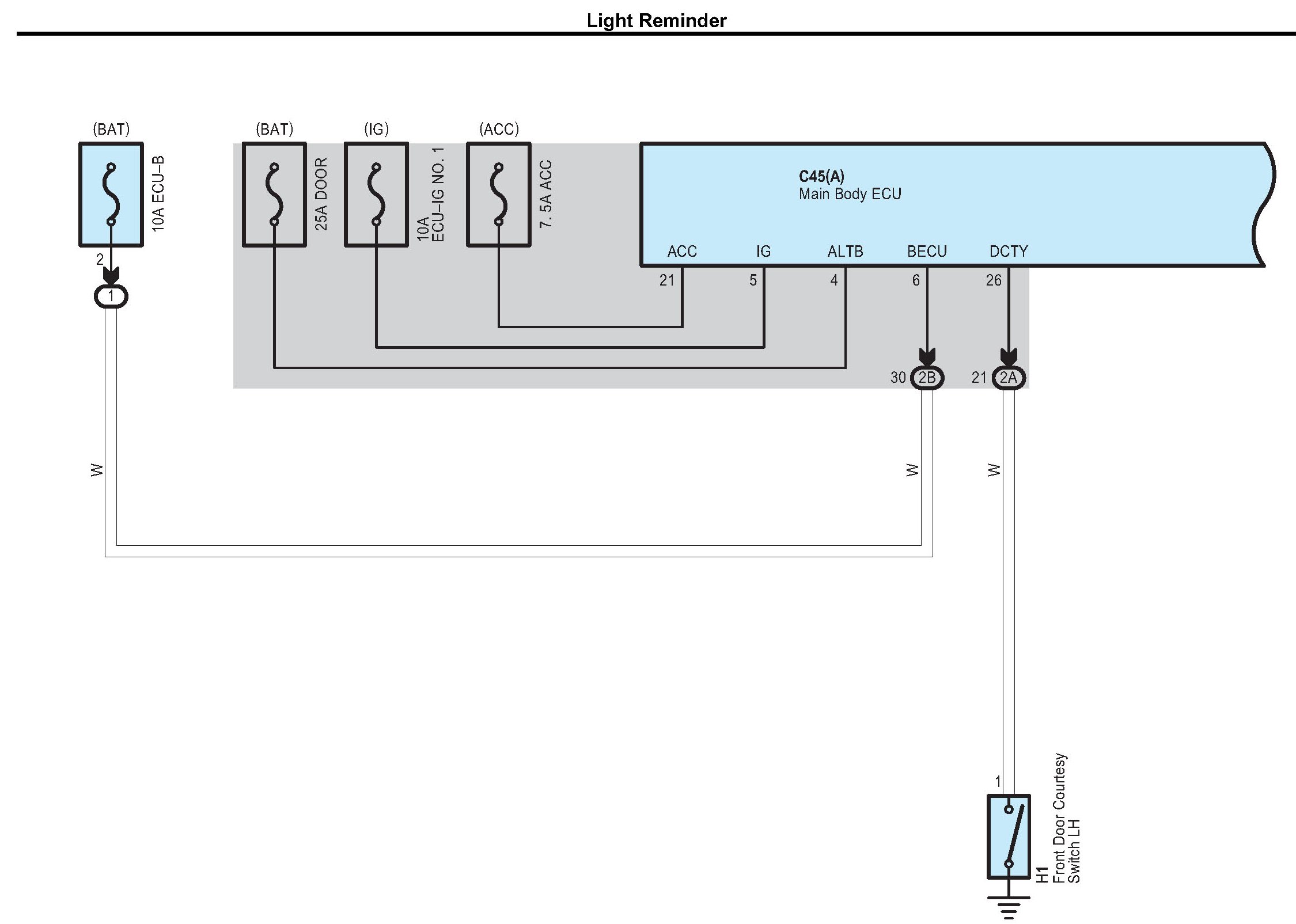

Light Reminder Part 2:

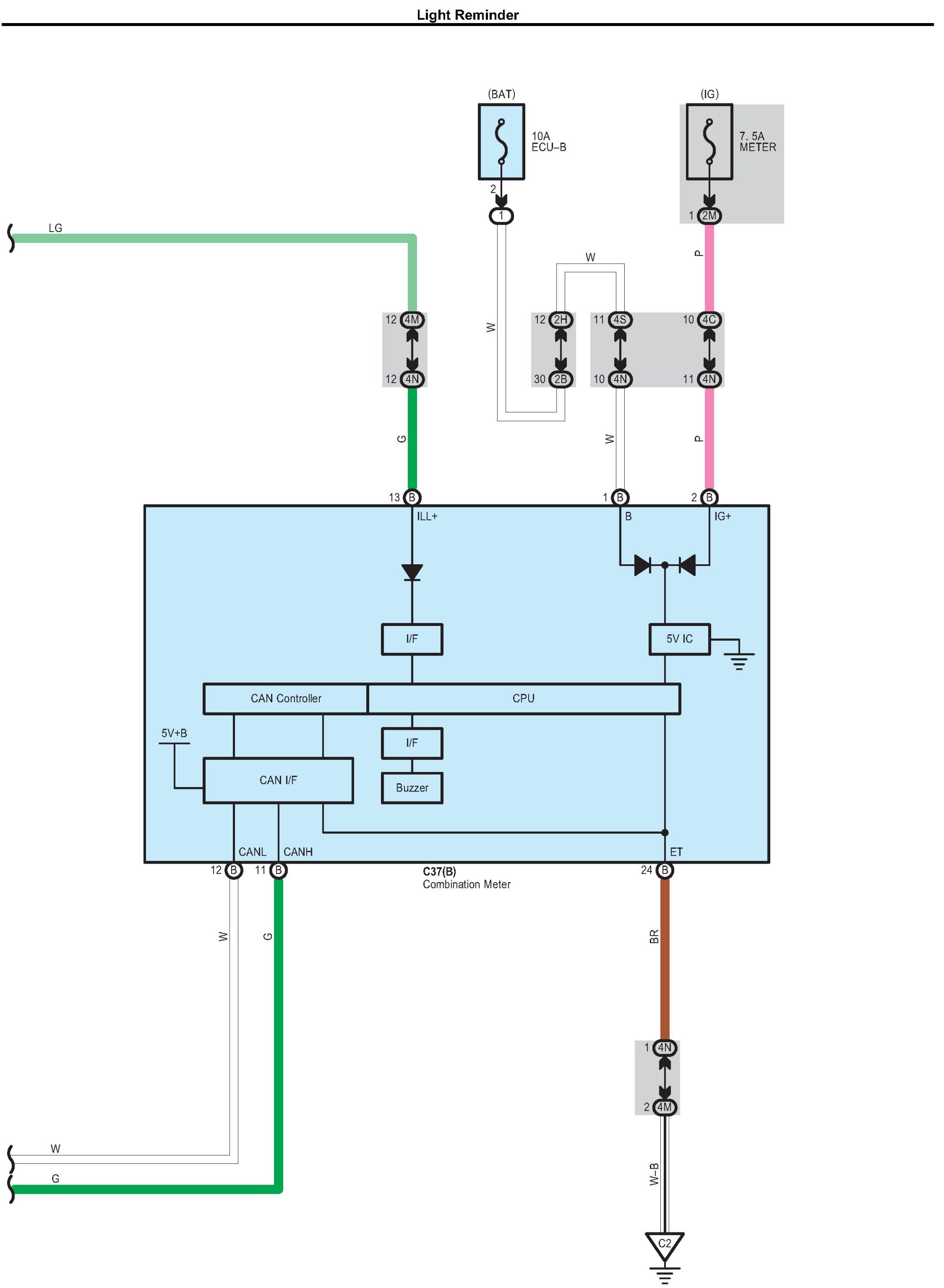

Light Reminder Part 3:

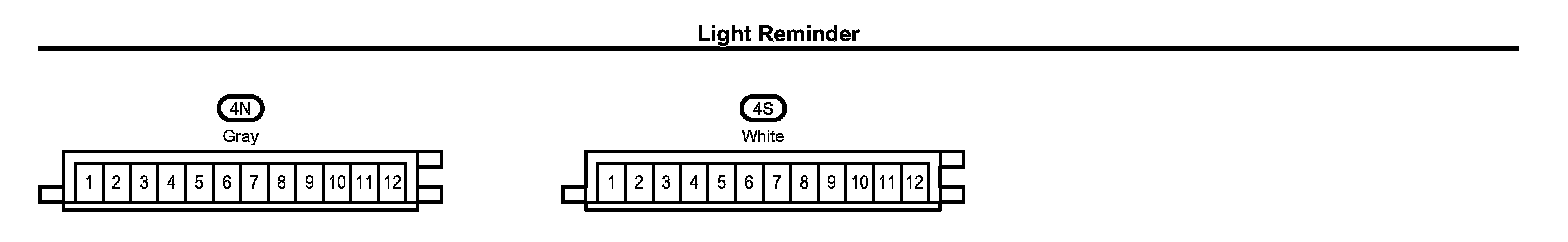

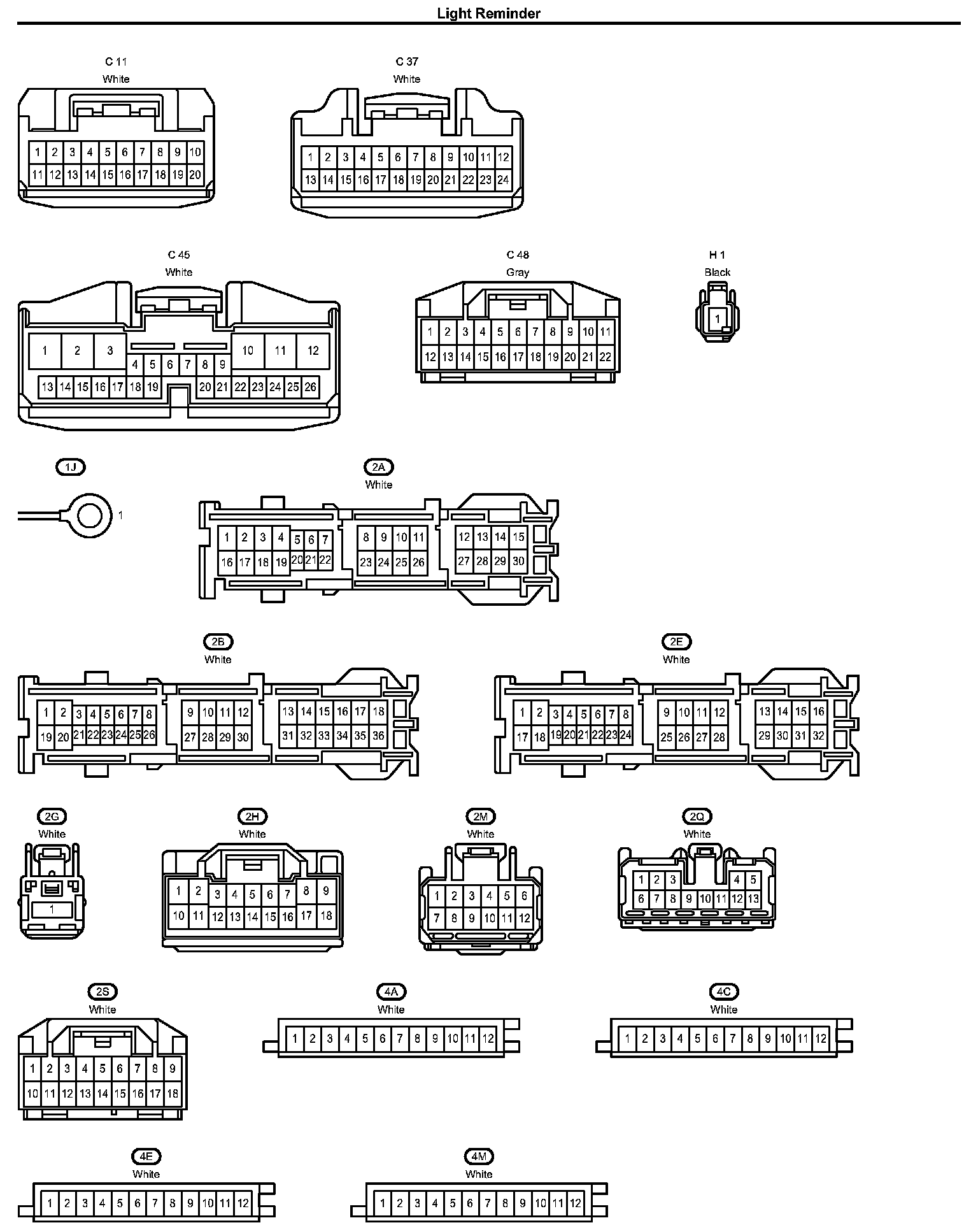

Connectors Part 1:

Connectors Part 2:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations
