Key Reminder

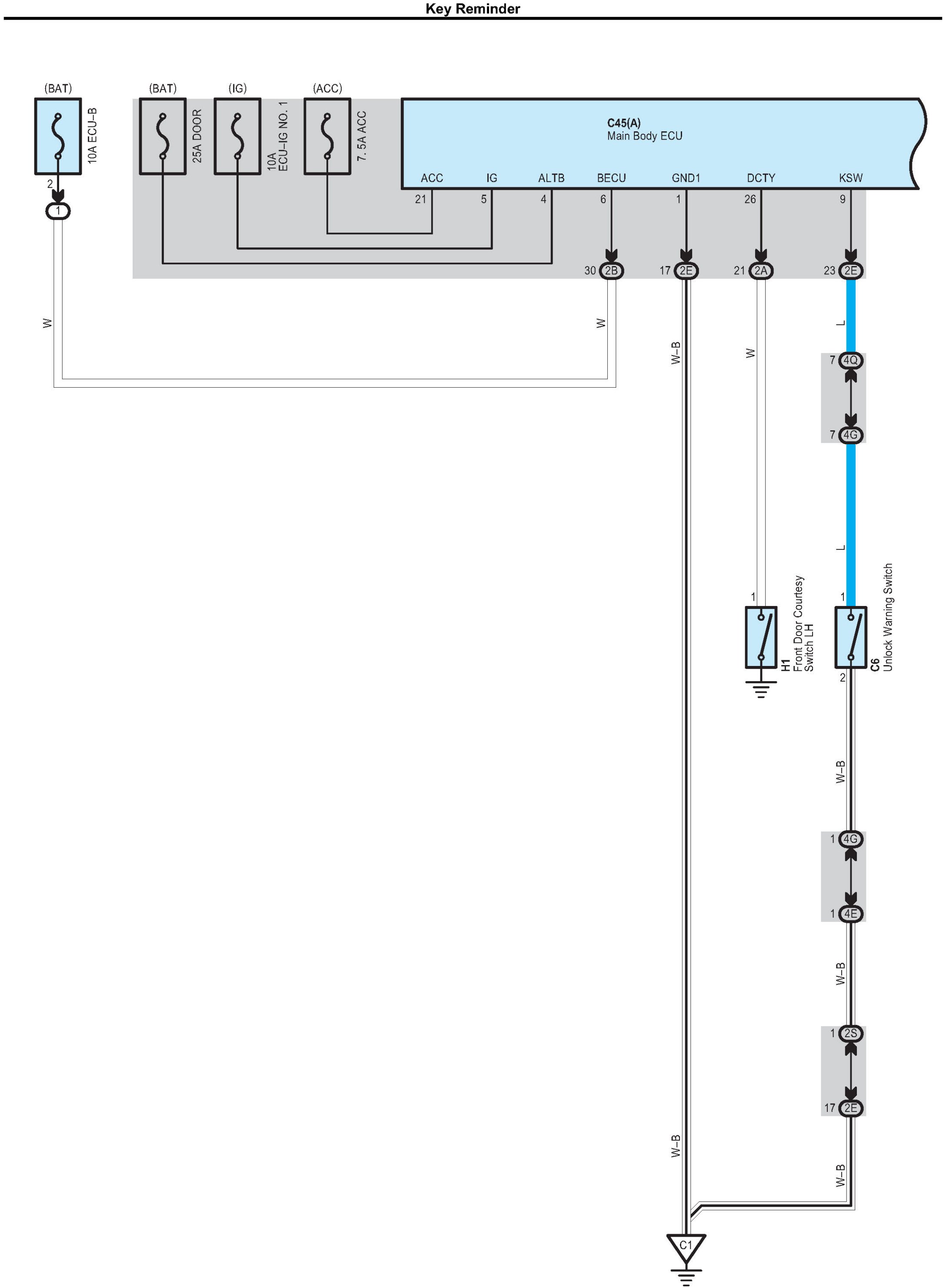

Key Reminder Part 1:

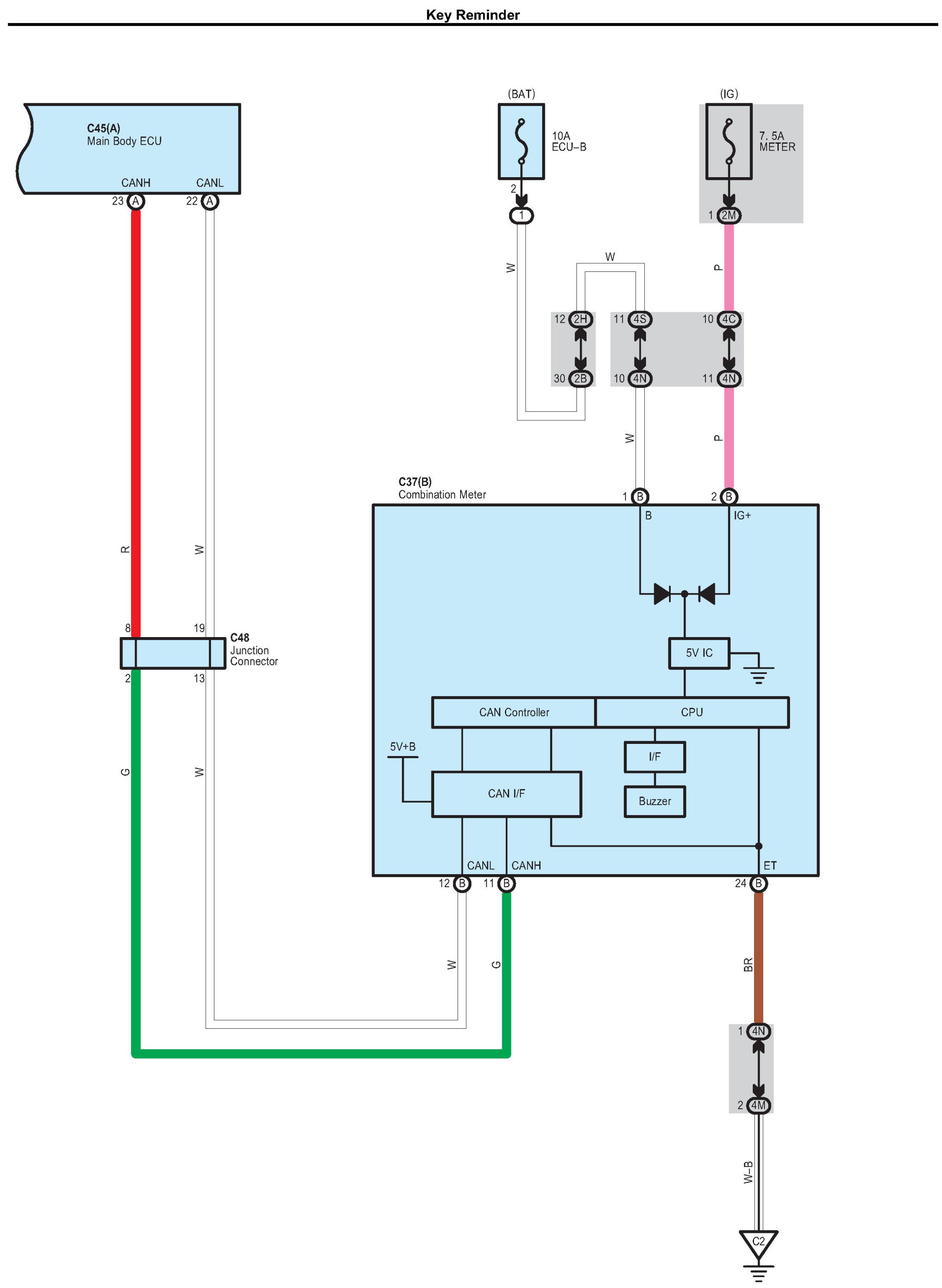

Key Reminder Part 2:




Connectors:







Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations
