Headlamp

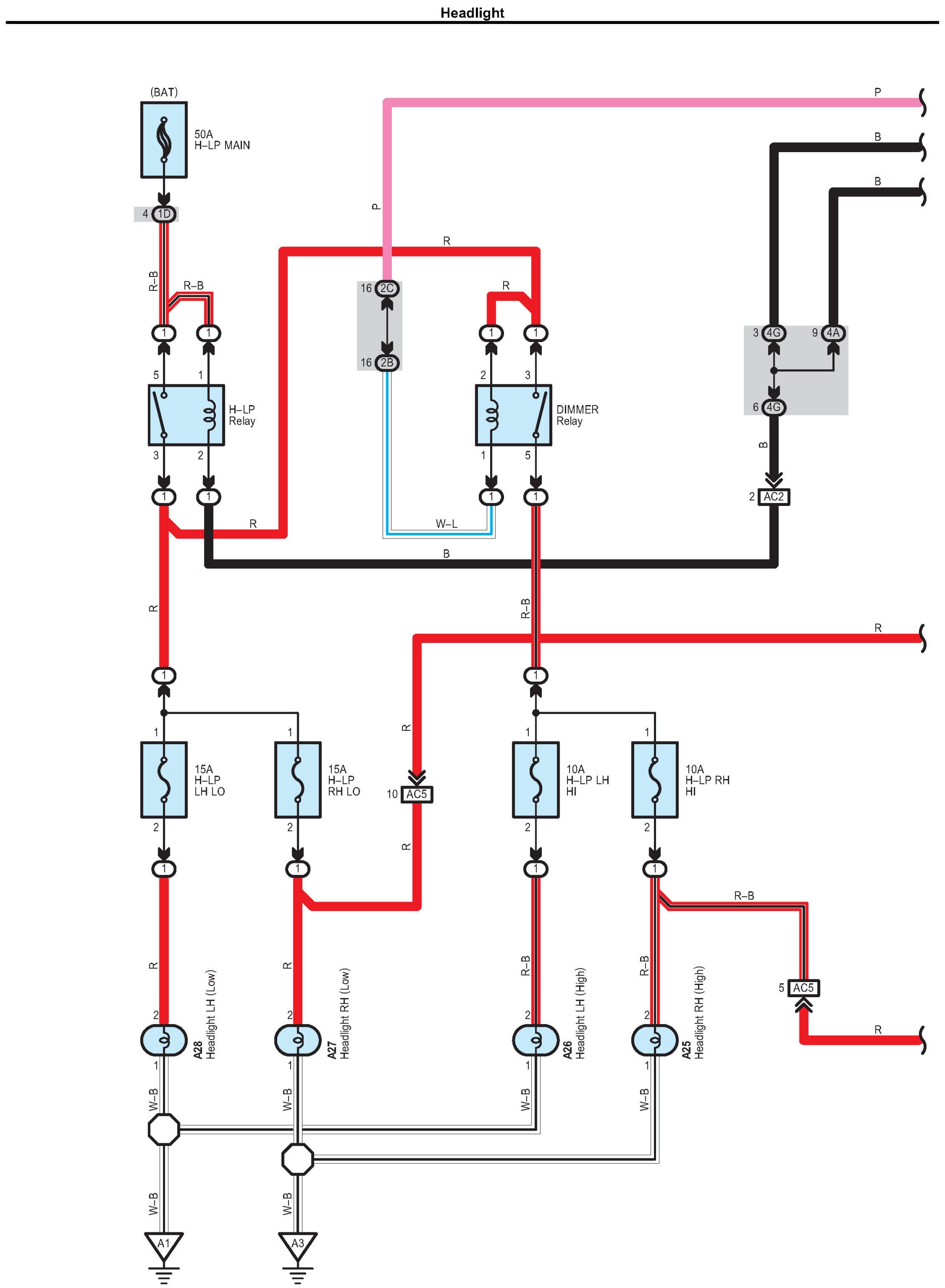

Headlight Part 1:

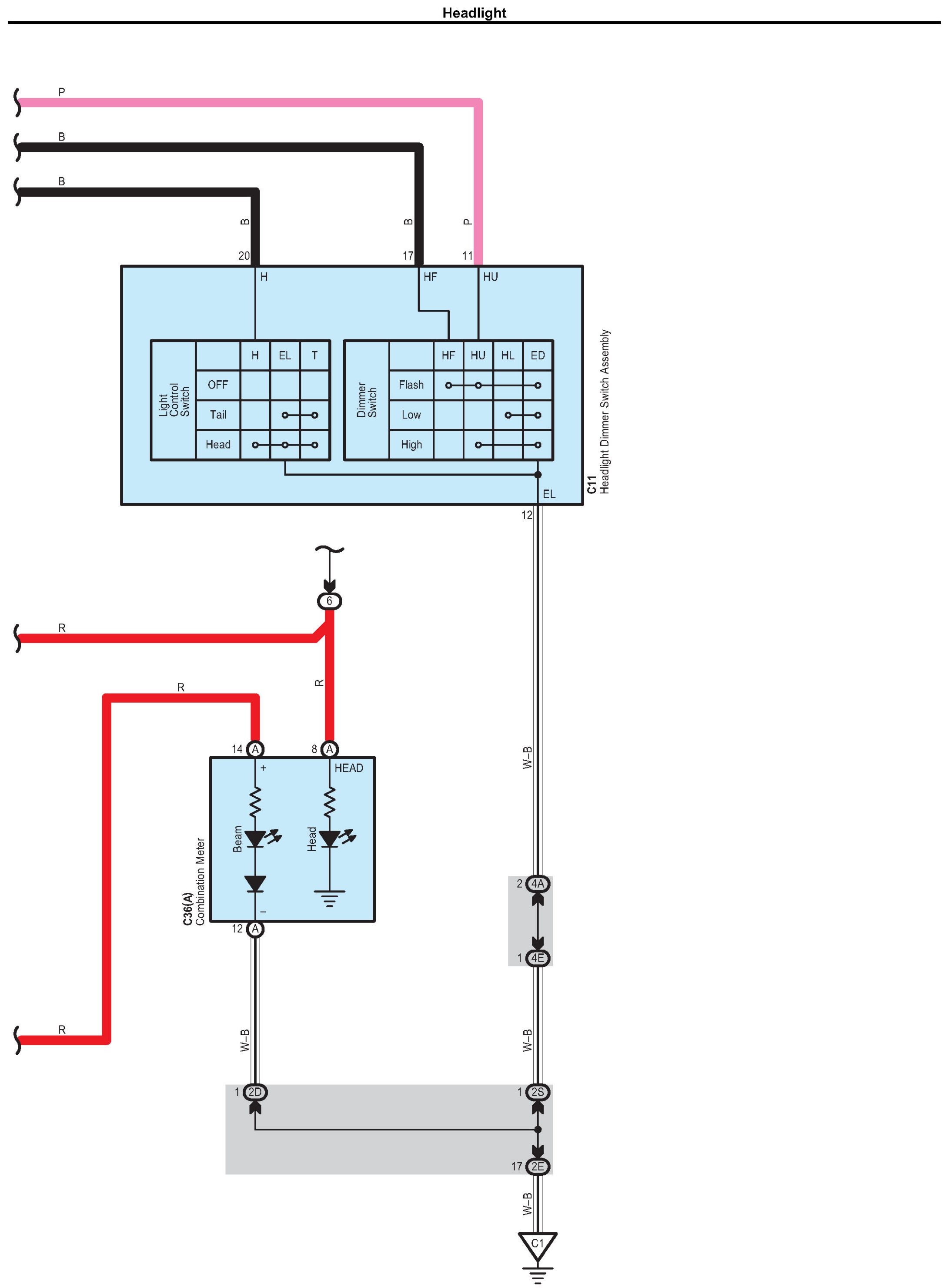

Headlight Part 2:

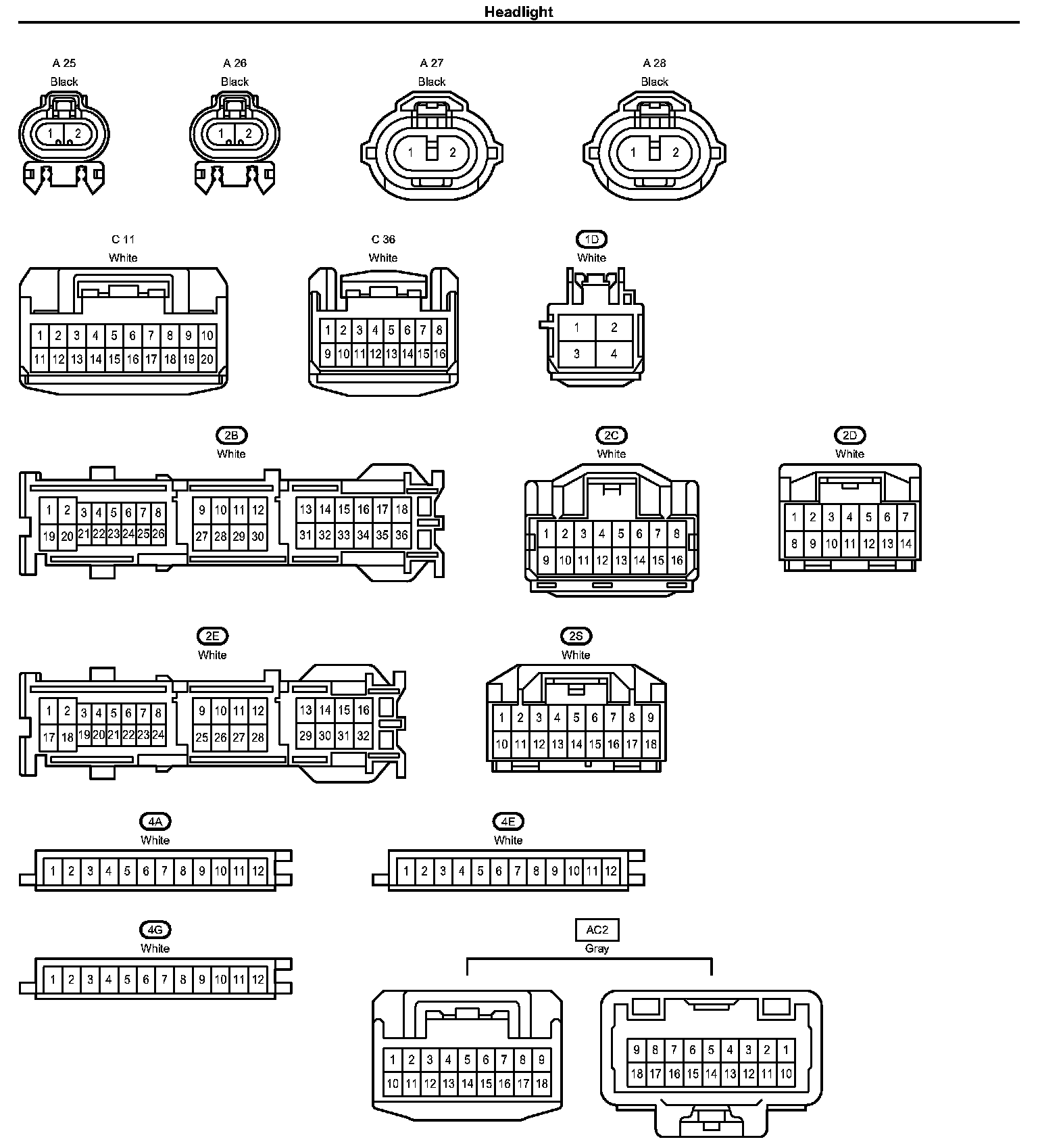

Connectors Part 1:

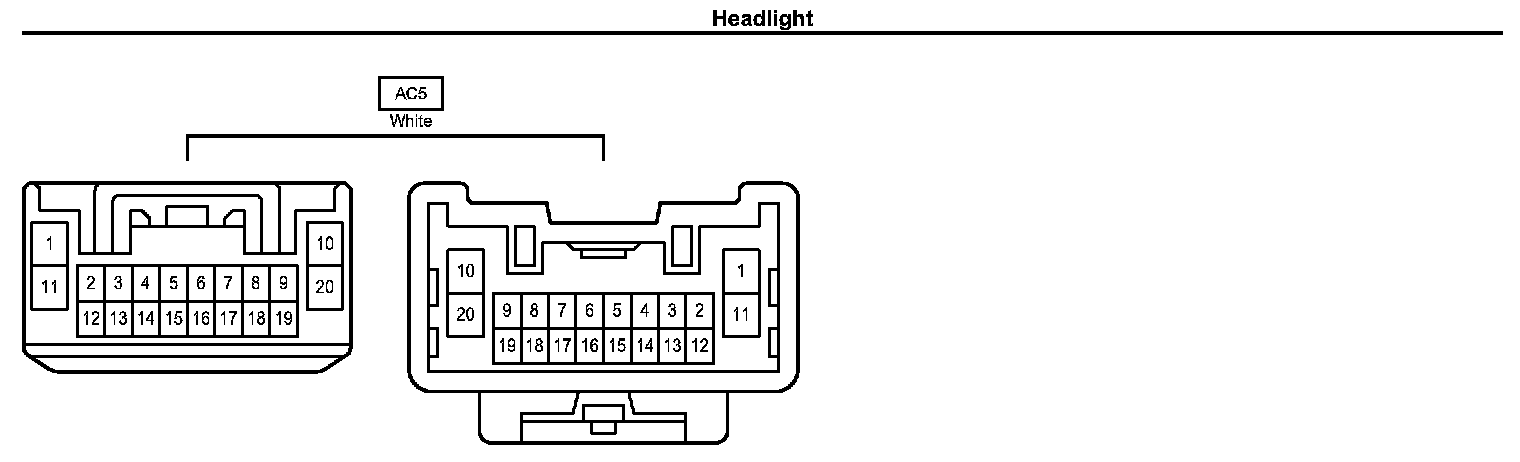

Connectors Part 2:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations
