Home >> Scion >> 2009 >> xB L4-2.4L (2AZ-FE) >> Repair and Diagnosis >> Diagrams >> Connectors

Connectors

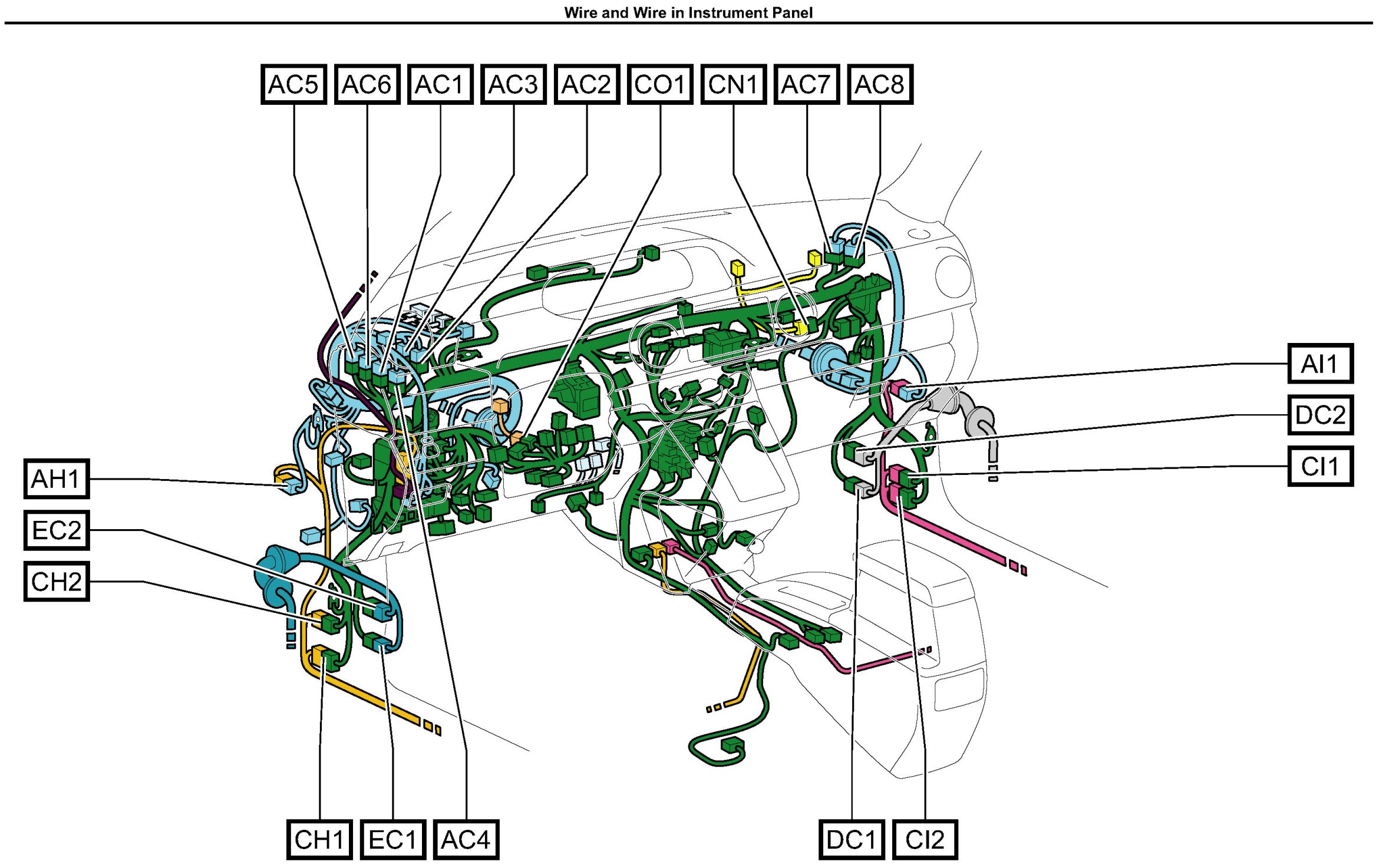

AC1-EC2:

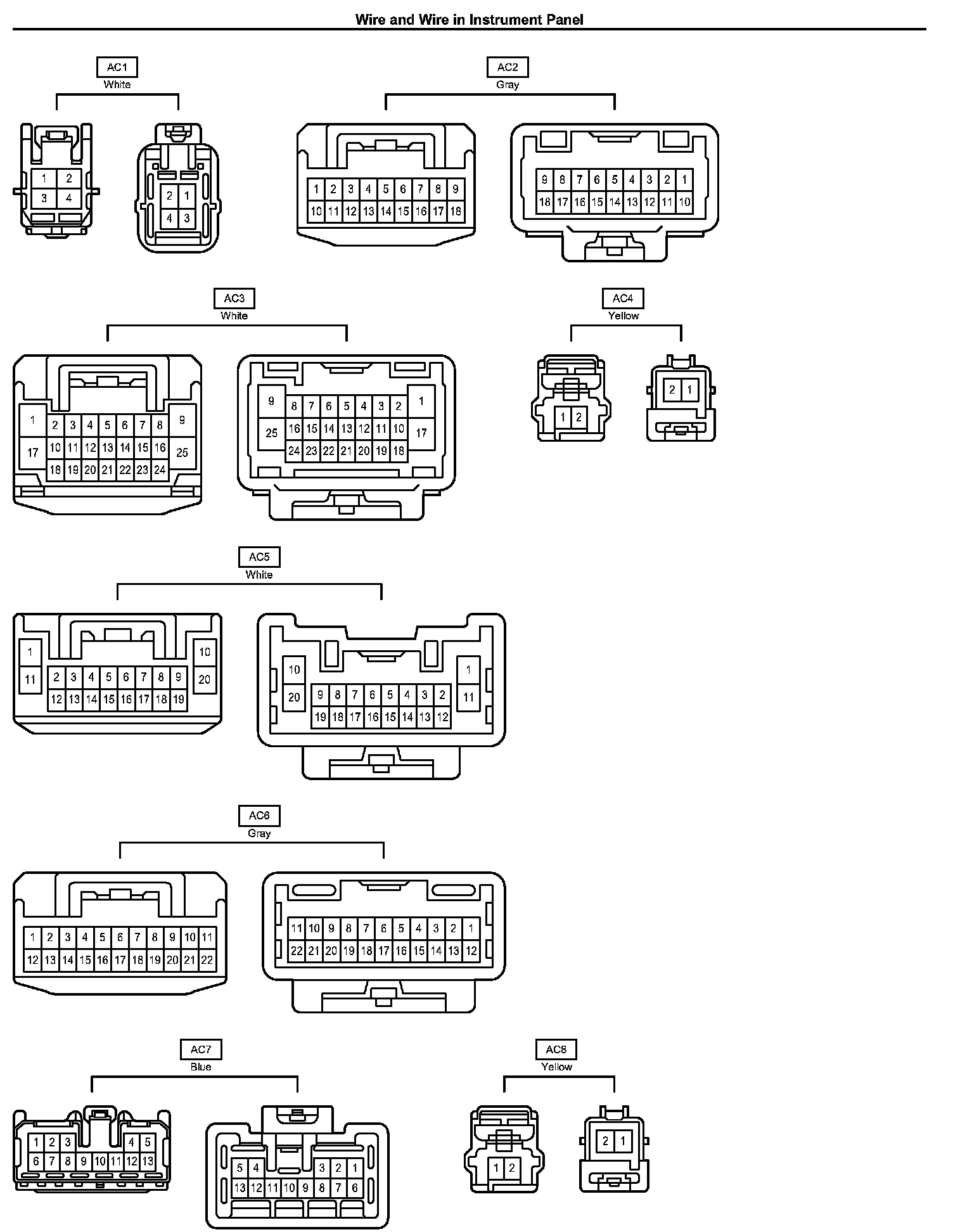

AC1-AC8:

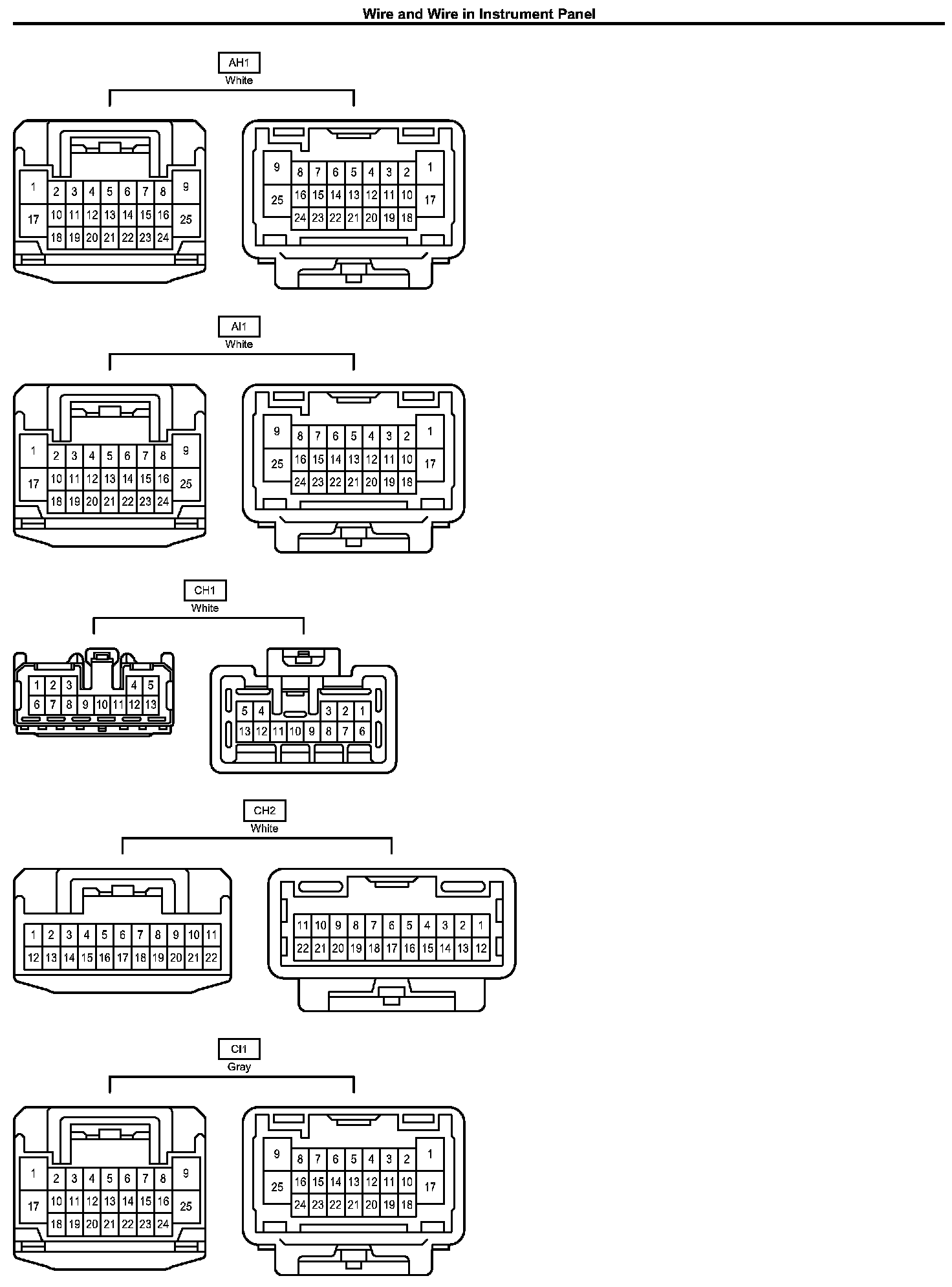

AH1-CI1:

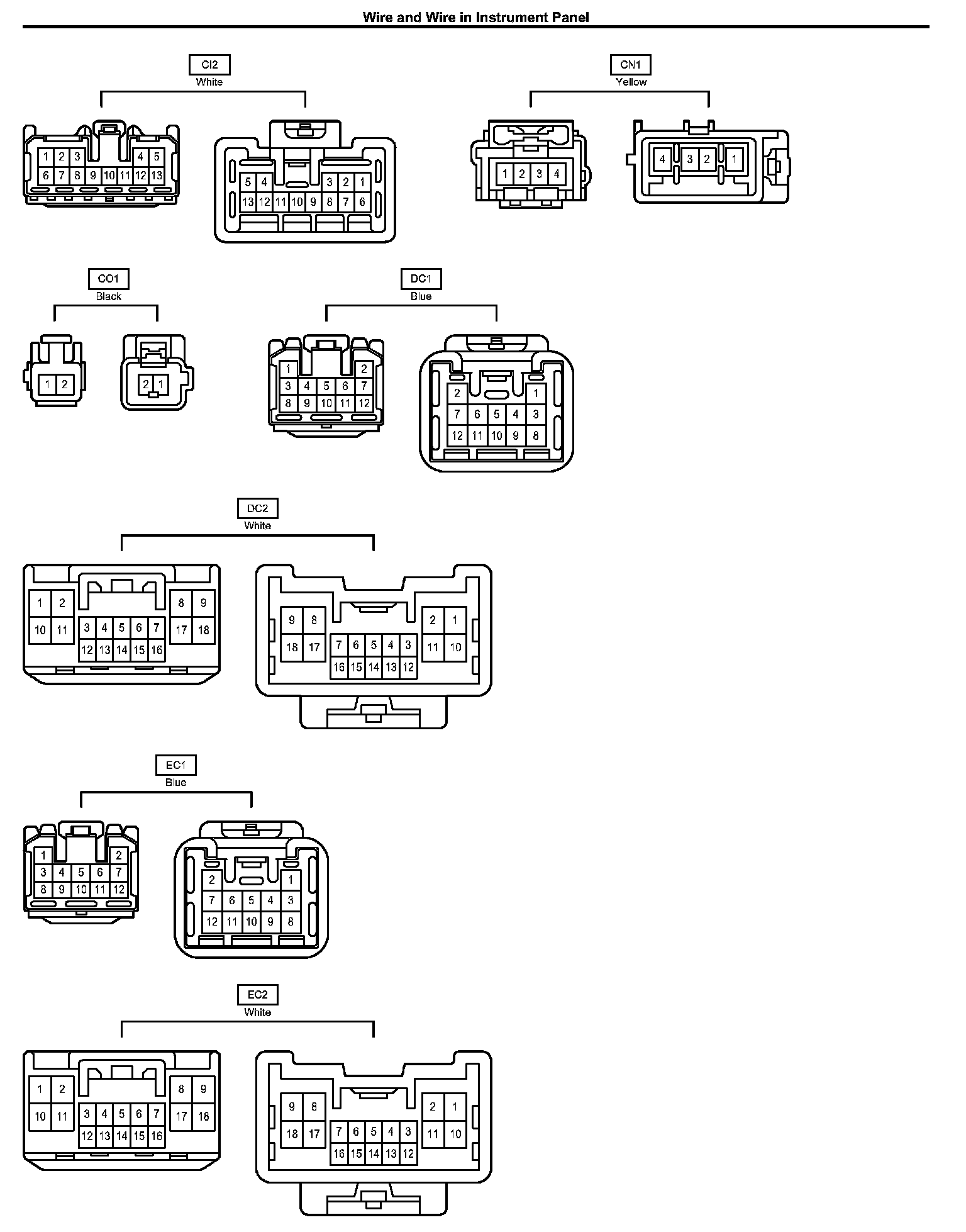

CI2-EC2:

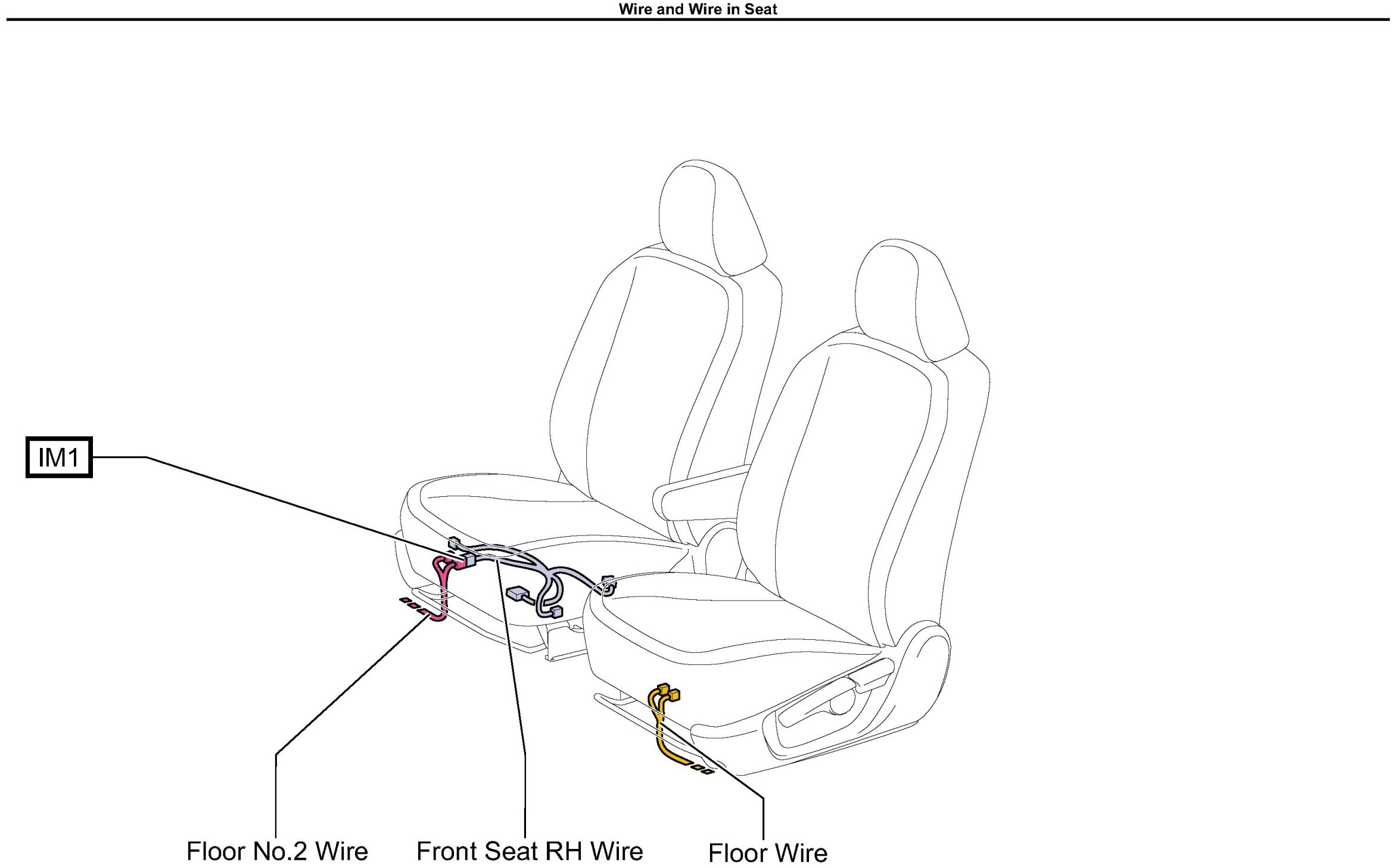

IM1:

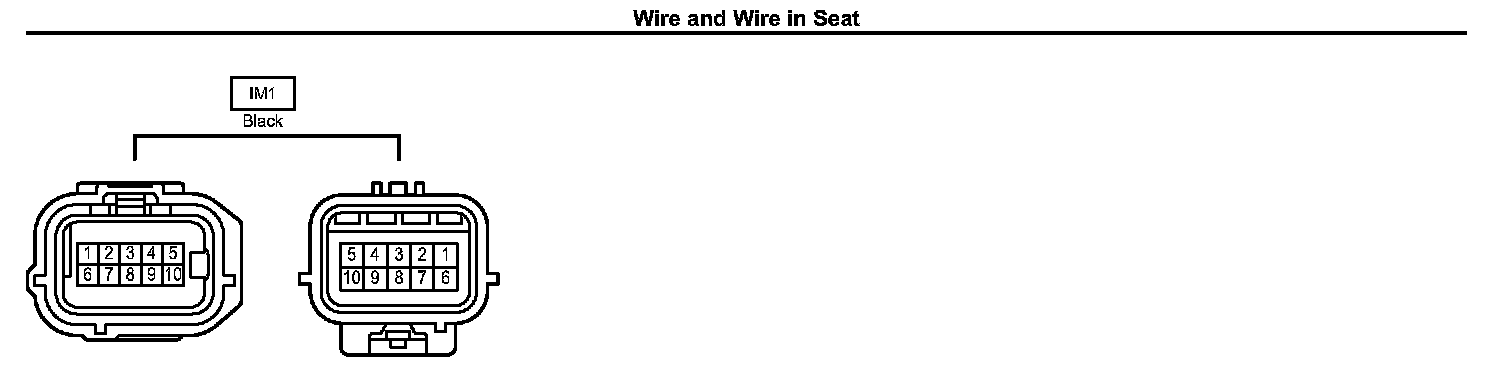

IM1:
