Home >> Scion >> 2009 >> xB L4-2.4L (2AZ-FE) >> Repair and Diagnosis >> Brakes and Traction Control >> Specifications >> Mechanical Specifications >> Brake Control >> Torque Specifications

Torque Specifications








SERVICE SPECIFICATIONS: BRAKE CONTROL: TORQUE SPECIFICATIONS

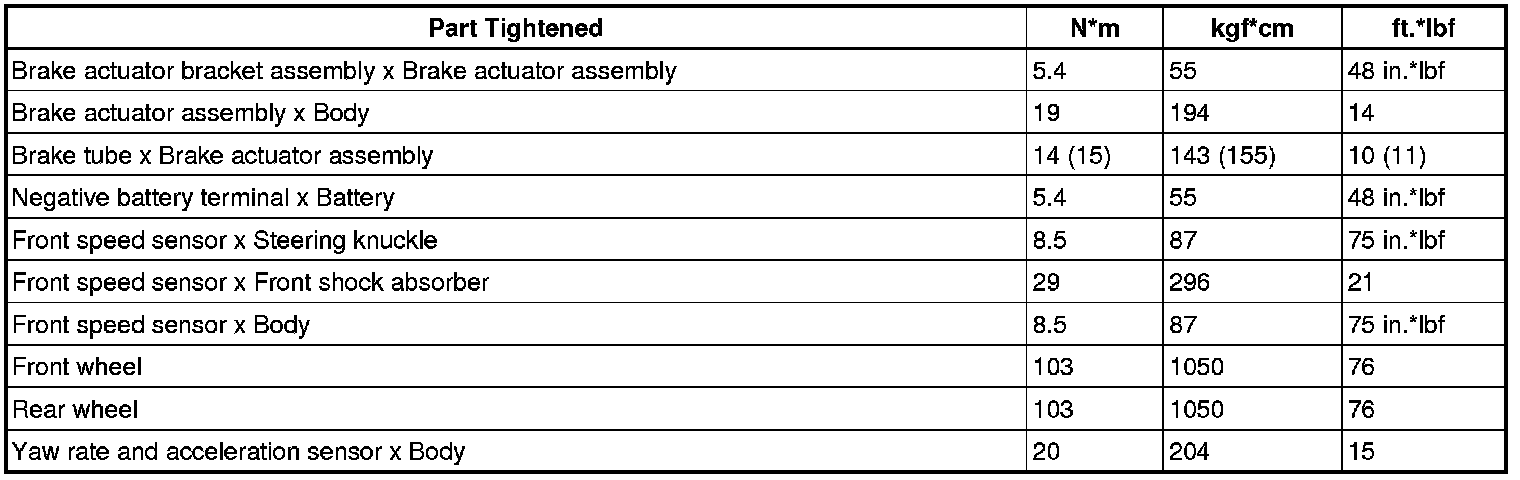

TORQUE SPECIFICATIONS





( ): For use without union nut wrench
