Scion
>>
2009
>>
xB L4-2.4L (2AZ-FE)
>>
Repair and Diagnosis
>>
Brakes and Traction Control
>>
Parking Brake System
>>
Parking Brake Cable
>>
Service and Repair
>>

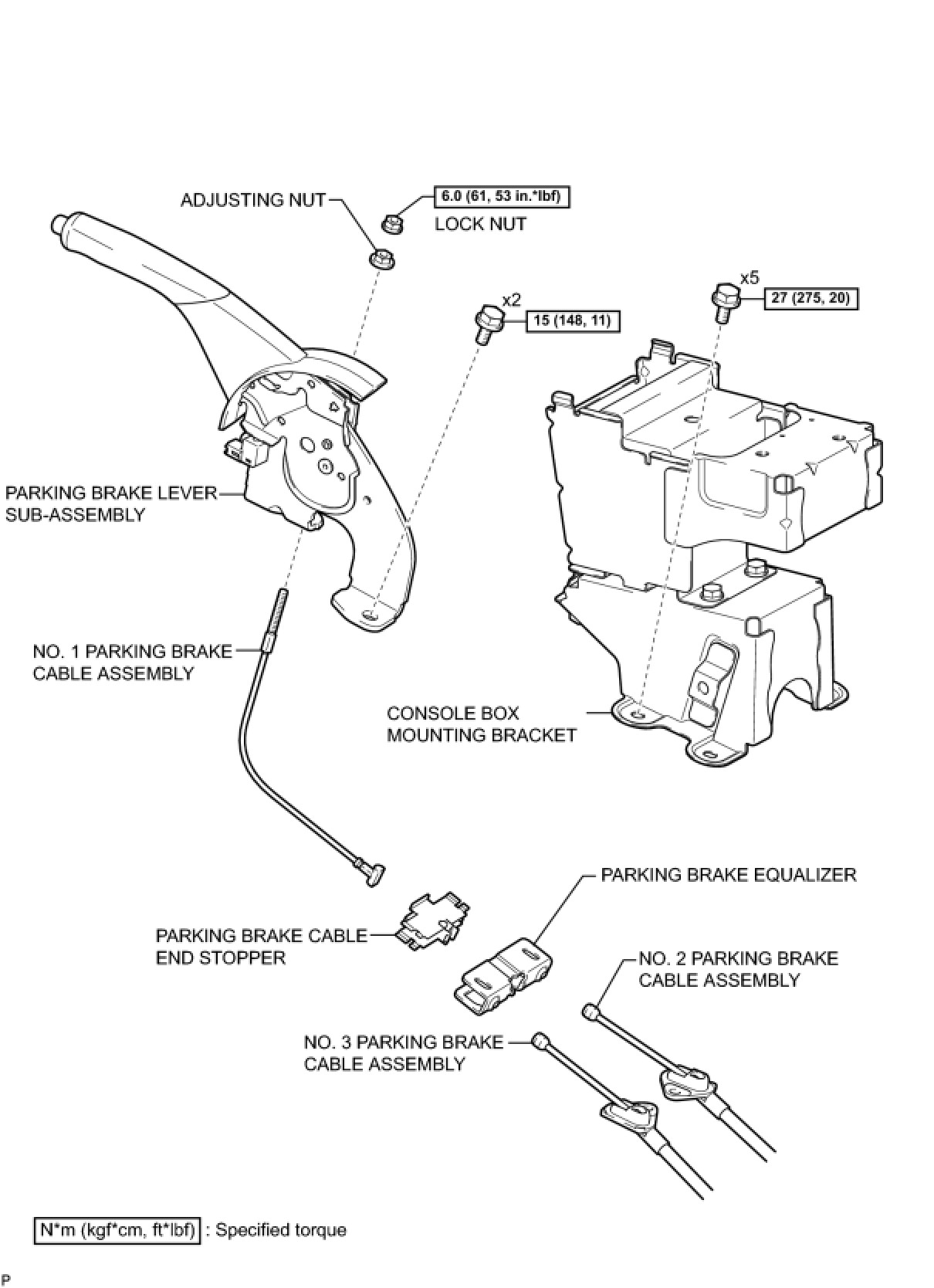

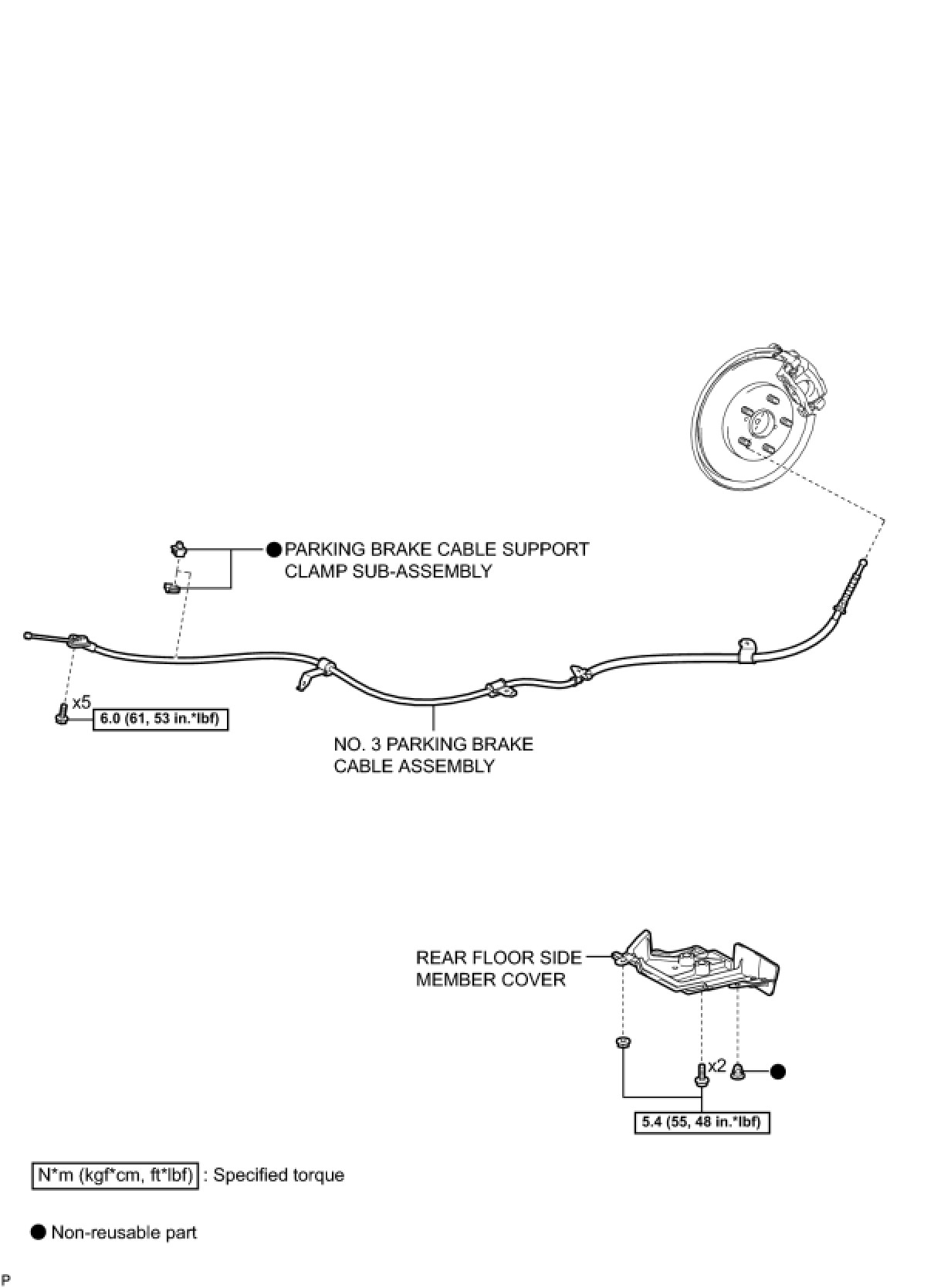

Components
Components
PARKING BRAKE:
PARKING BRAKE CABLE
: COMPONENTS
COMPONENTS
