Disassembly

BRAKE: REAR BRAKE: DISASSEMBLY

DISASSEMBLY





1. REMOVE REAR DISC BRAKE PISTON

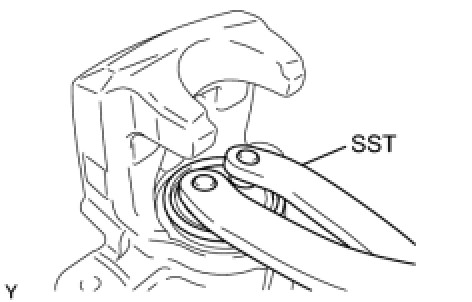

(a) Using SST, remove the piston by turning it counterclockwise.
SST: 09960-10010
09963-00400

NOTICE:
- Do not damage the piston.
- Do not spatter the brake fluid.

2. REMOVE CYLINDER BOOT
(a) Remove the cylinder boot from the piston.





3. REMOVE PISTON SEAL

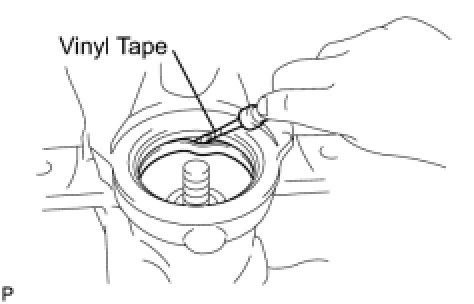

(a) Using a screwdriver with its tip wrapped in protective tape, remove the piston seal from the disc brake cylinder.
NOTICE: Do not damage the inner surface or piston seal groove of the cylinder.

4. REMOVE REAR DISC BRAKE BLEEDER PLUG CAP
5. REMOVE REAR DISC BRAKE BLEEDER PLUG
