Reassembly

BRAKE: FRONT BRAKE: REASSEMBLY

REASSEMBLY

1. TEMPORARILY TIGHTEN FRONT DISC BRAKE BLEEDER PLUG
2. INSTALL FRONT DISC BRAKE BLEEDER PLUG CAP
3. INSTALL PISTON SEAL
(a) Apply lithium soap base glycol grease to a new piston seal.
(b) Install the piston seal to the disc brake cylinder.
NOTICE: Securely install the piston seal into the groove of the disc brake cylinder.

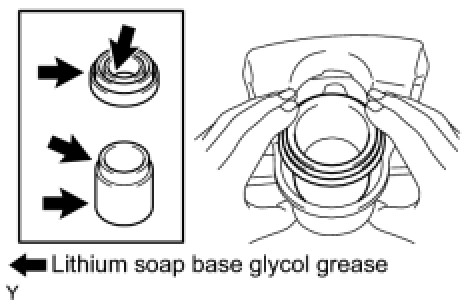

4. INSTALL FRONT DISC BRAKE PISTON
(a) Apply lithium soap base glycol grease to the piston and a new cylinder boot.
(b) Install the cylinder boot to the piston.
NOTICE: Securely install the cylinder boot into the groove of the piston.

(c) Install the piston into the disc brake cylinder.
NOTICE: Do not forcibly install the piston into the disc brake cylinder.

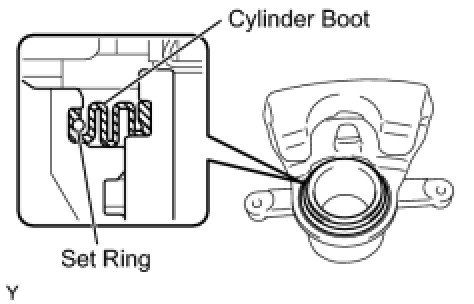

5. INSTALL CYLINDER BOOT
(a) Install the cylinder boot into the disc brake cylinder.
NOTICE: Securely install the cylinder boot into the groove of the disc brake cylinder.

(b) Using a screwdriver, install a new set ring.

NOTICE:
- Securely install the set ring to groove of the cylinder boot.
- Do not damage the cylinder boot.
